Floodlights
ROLEDS floodlights are primarily used for stadiums, squares, airport aprons, ports, and industrial lighting.
Product Description
ROLEDS floodlights feature a professional optical design for excellent light efficiency and eco-friendly low-carbon performance. They boast high protection ratings to ensure product safety and support 0-10V dimming control for precise brightness adjustment and energy-saving illumination. Some models feature a streamlined design that minimizes water and dust accumulation.
Model Selection
Power Consumption
1 — 100
Beam Angle(FWHM)
CCT
Luminous flux
1 — 240
Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable
Controllable
>

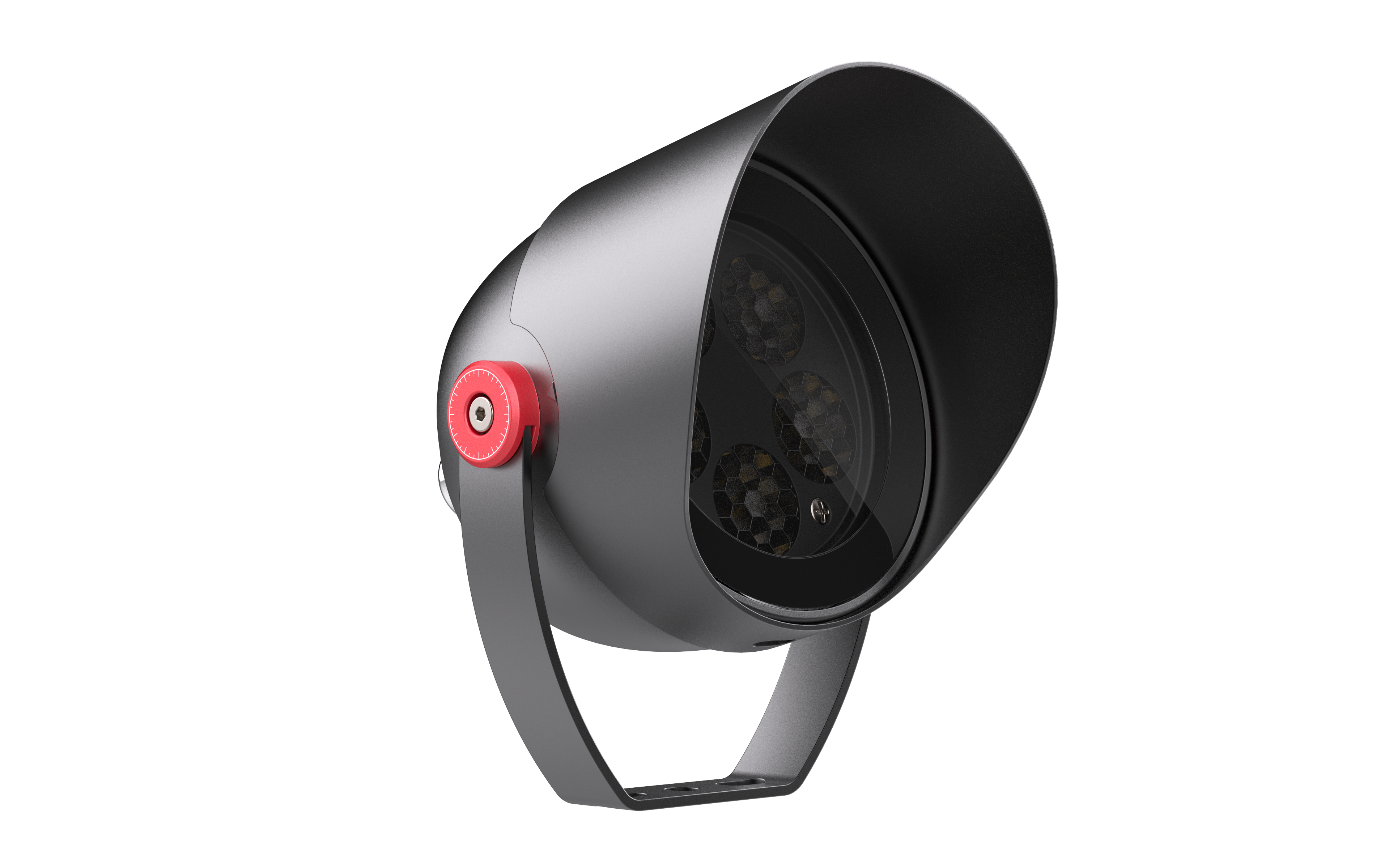

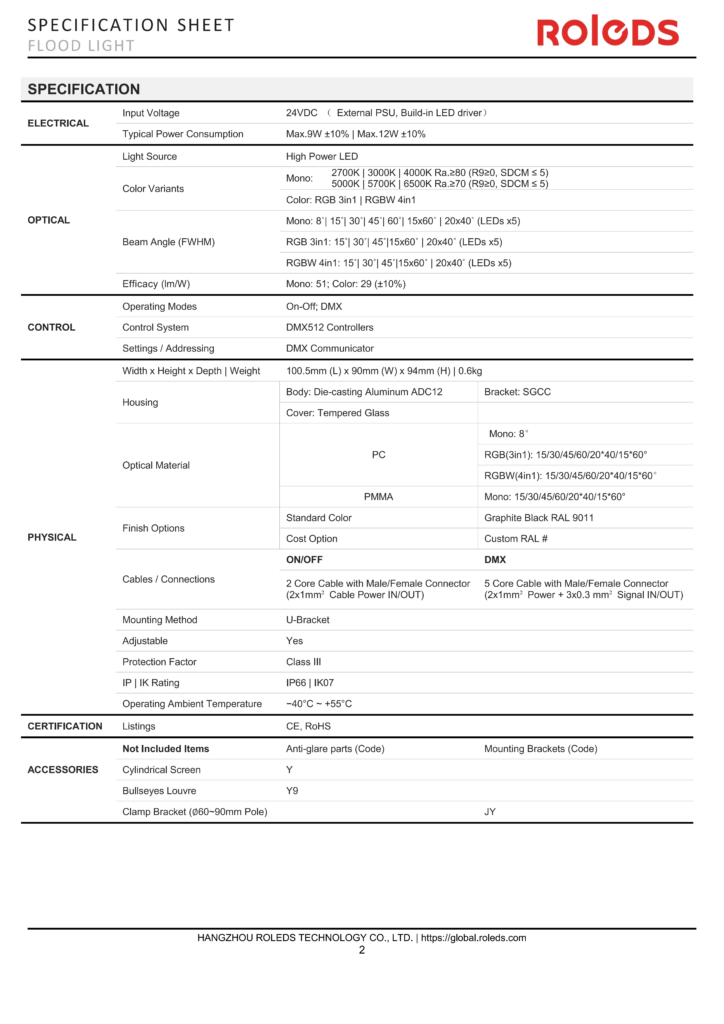

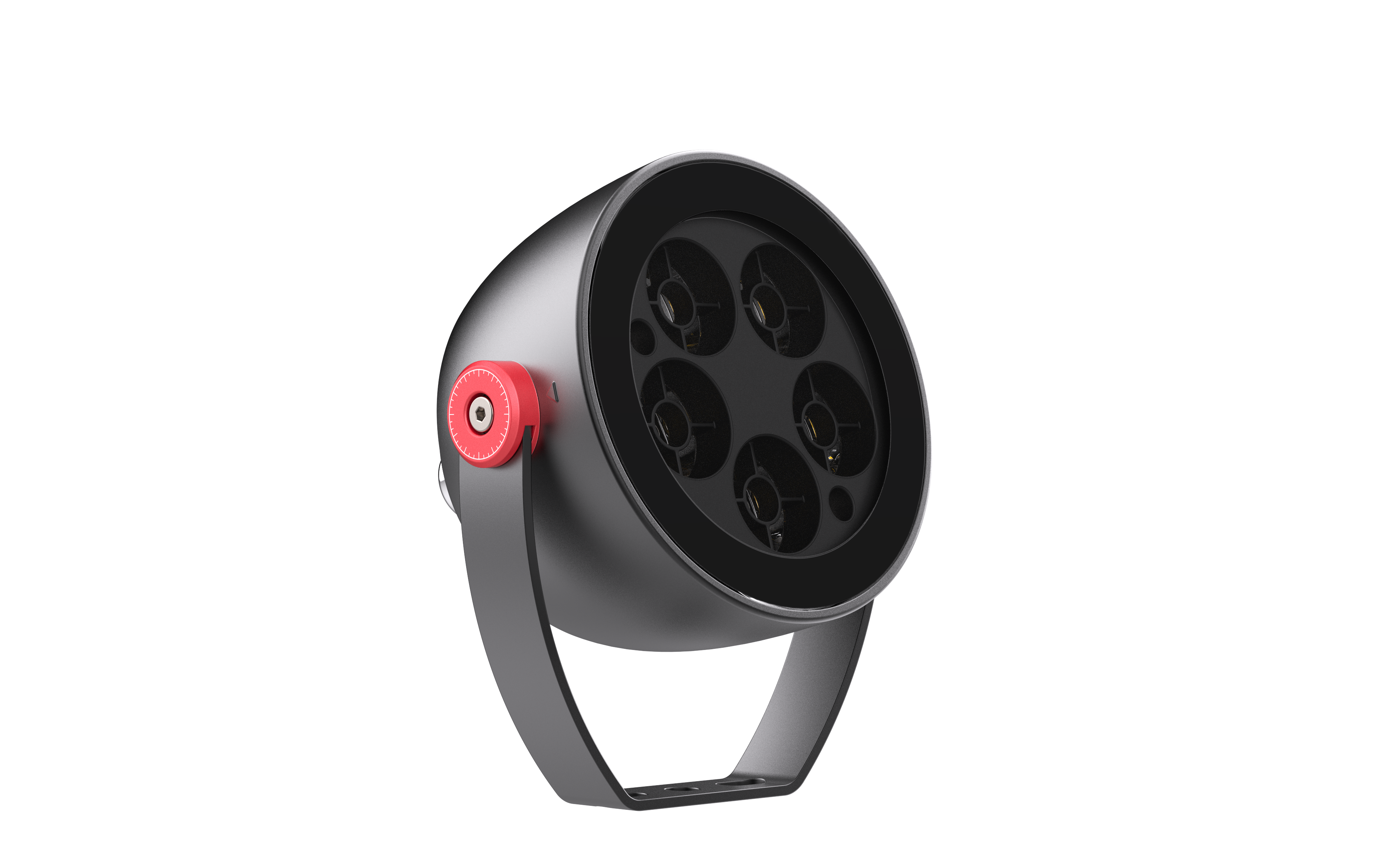

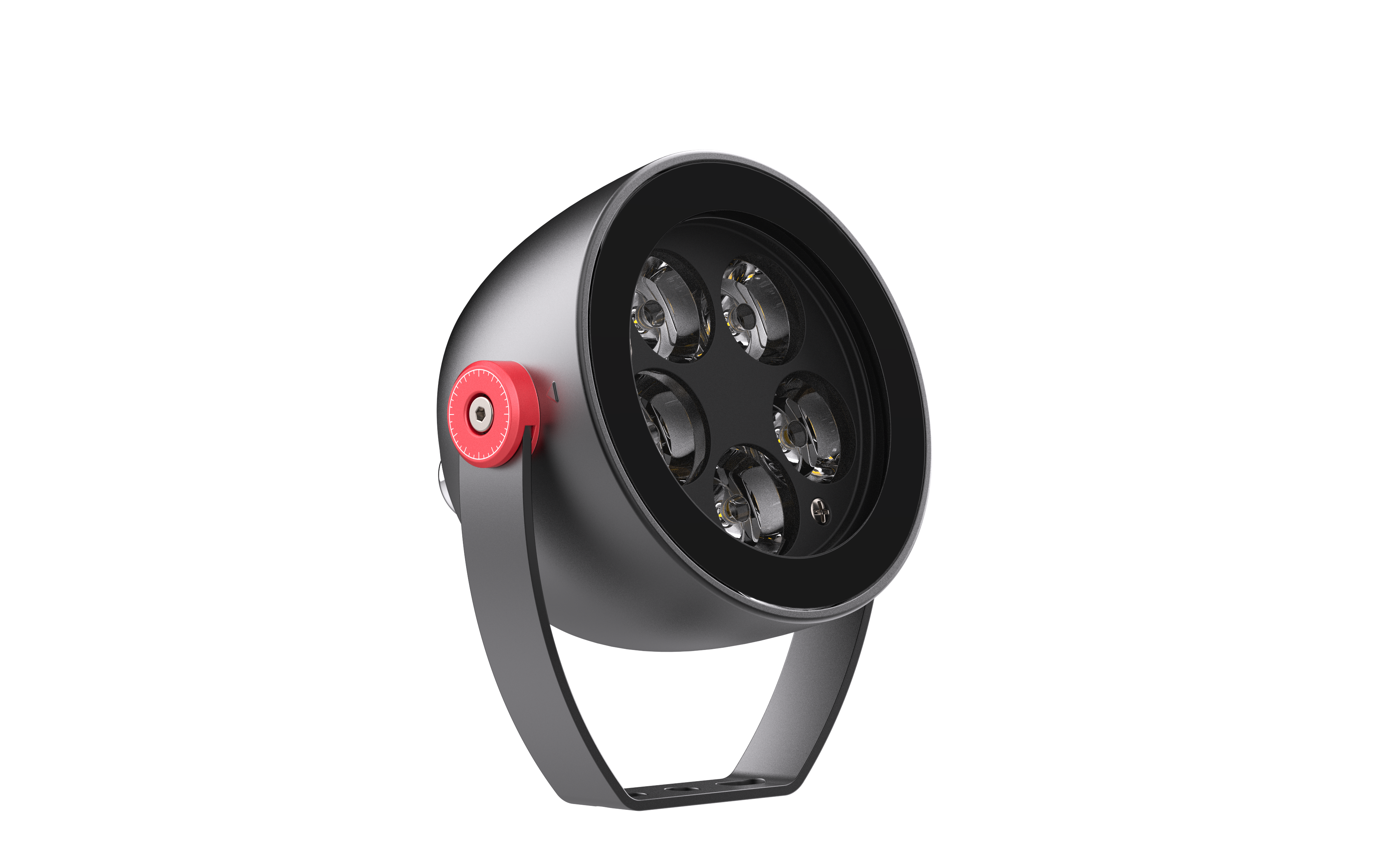

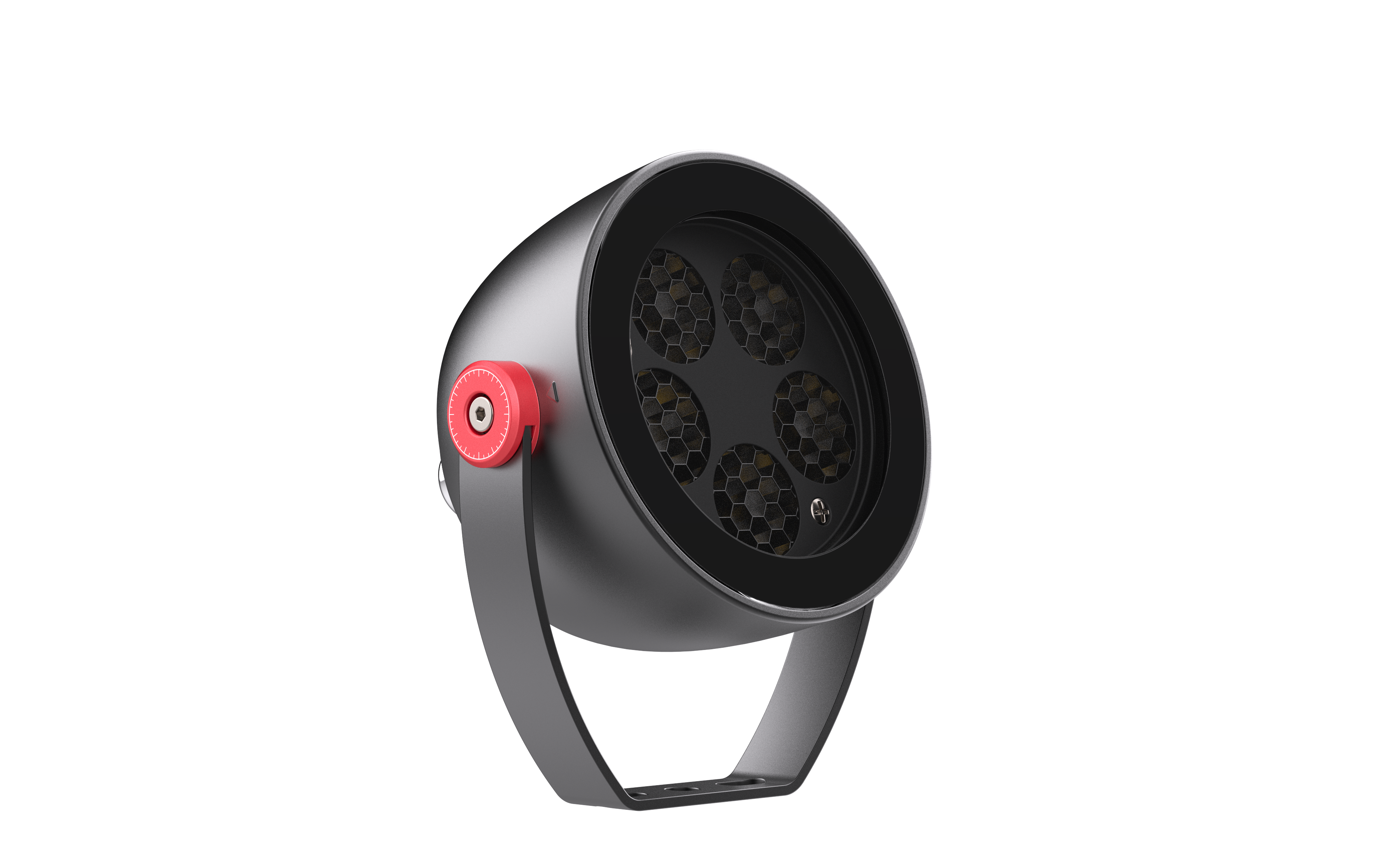

RFL90R
9W,12W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

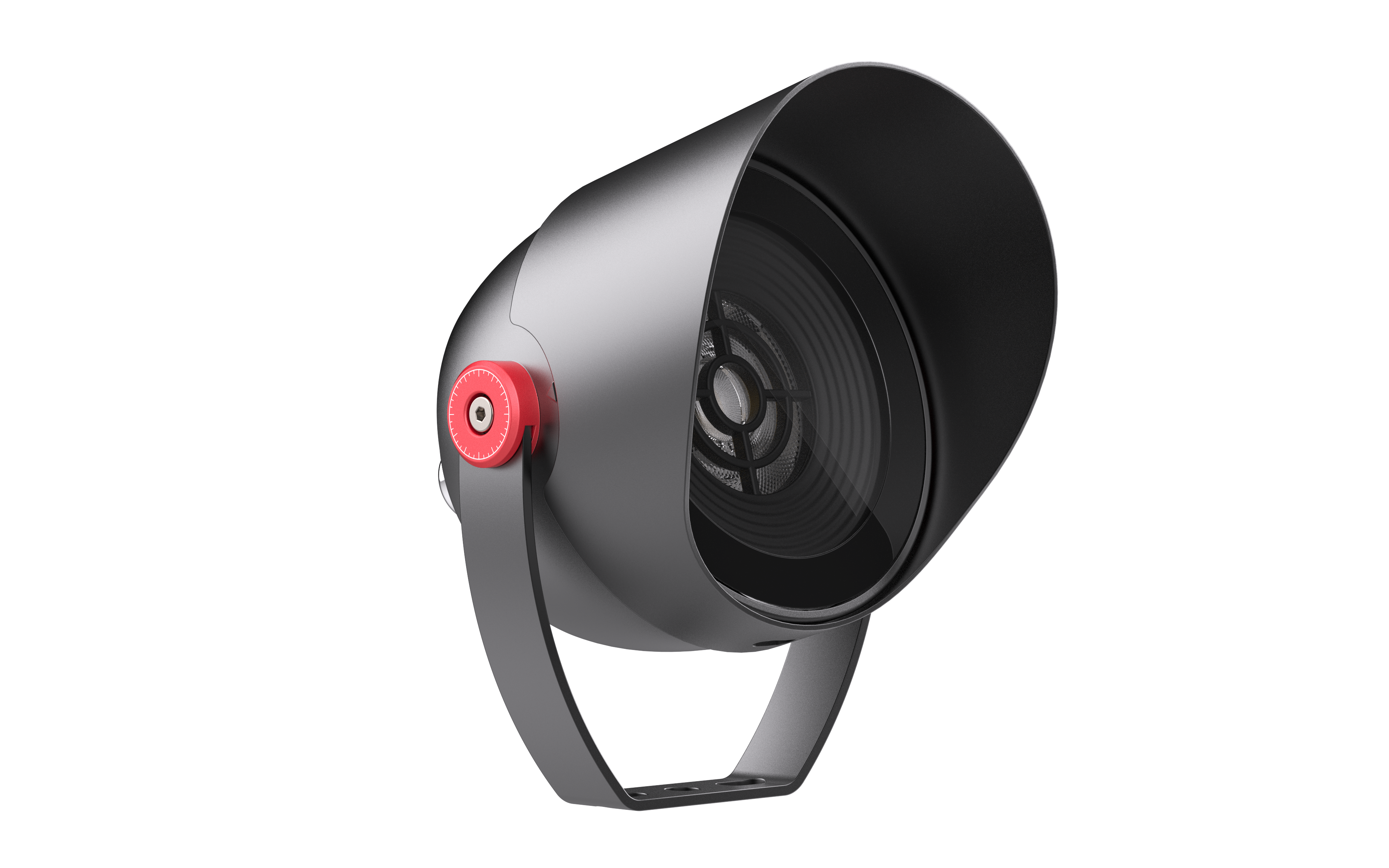

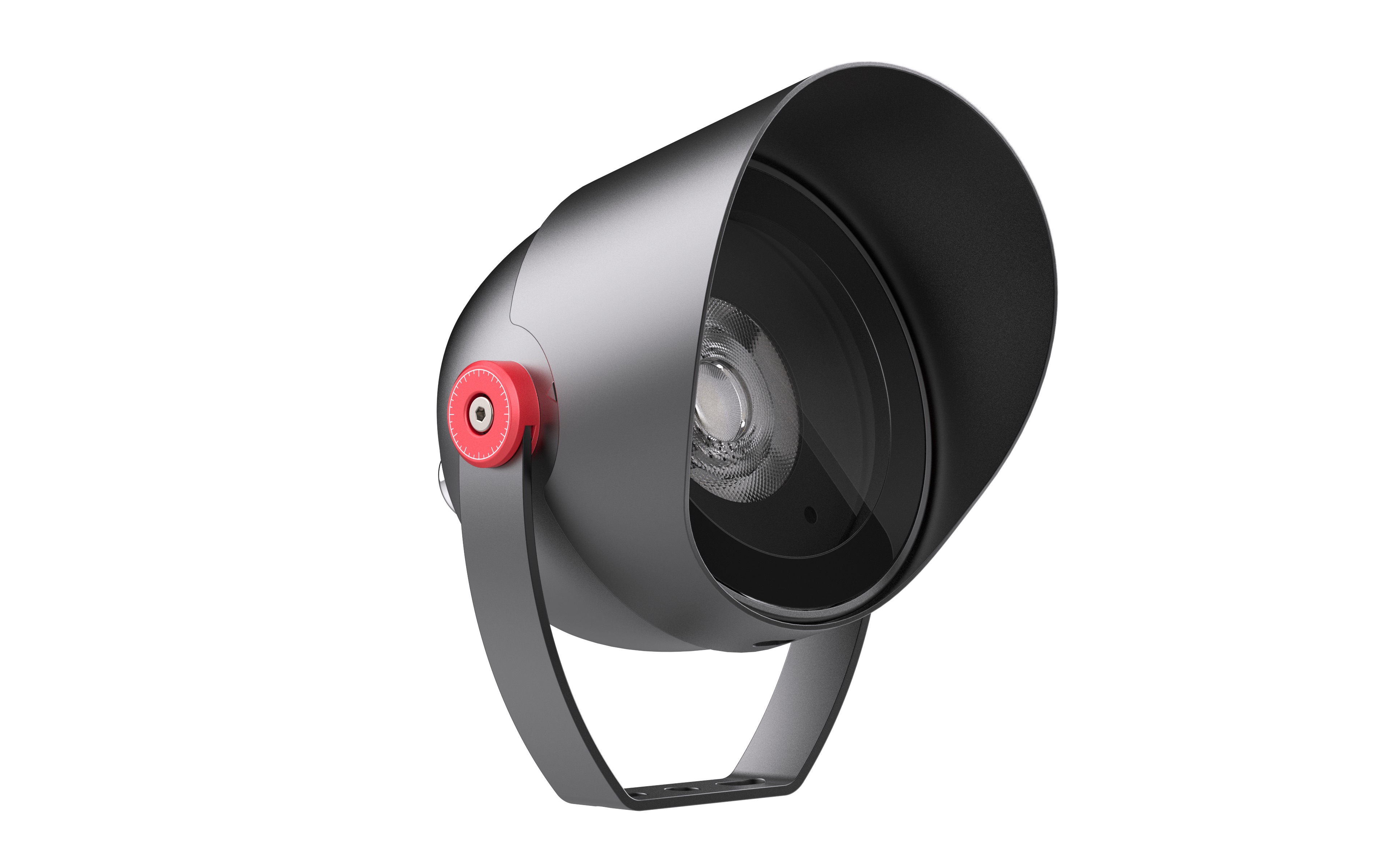

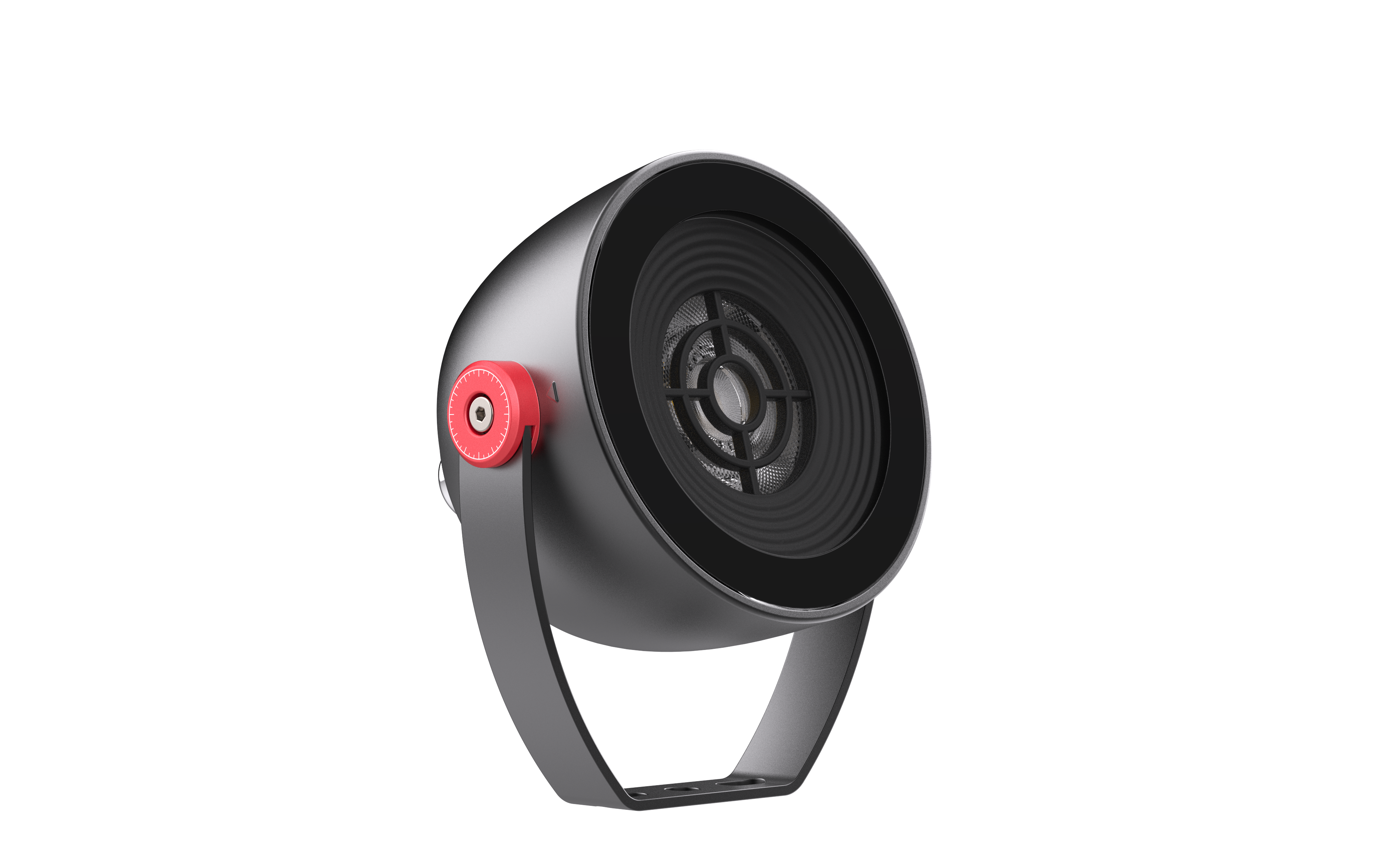

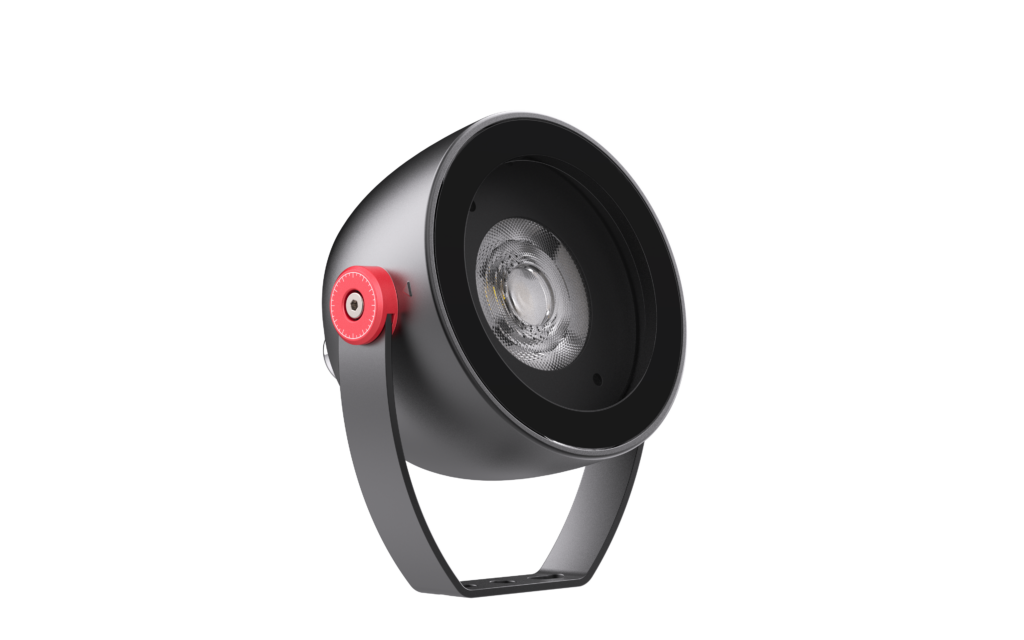

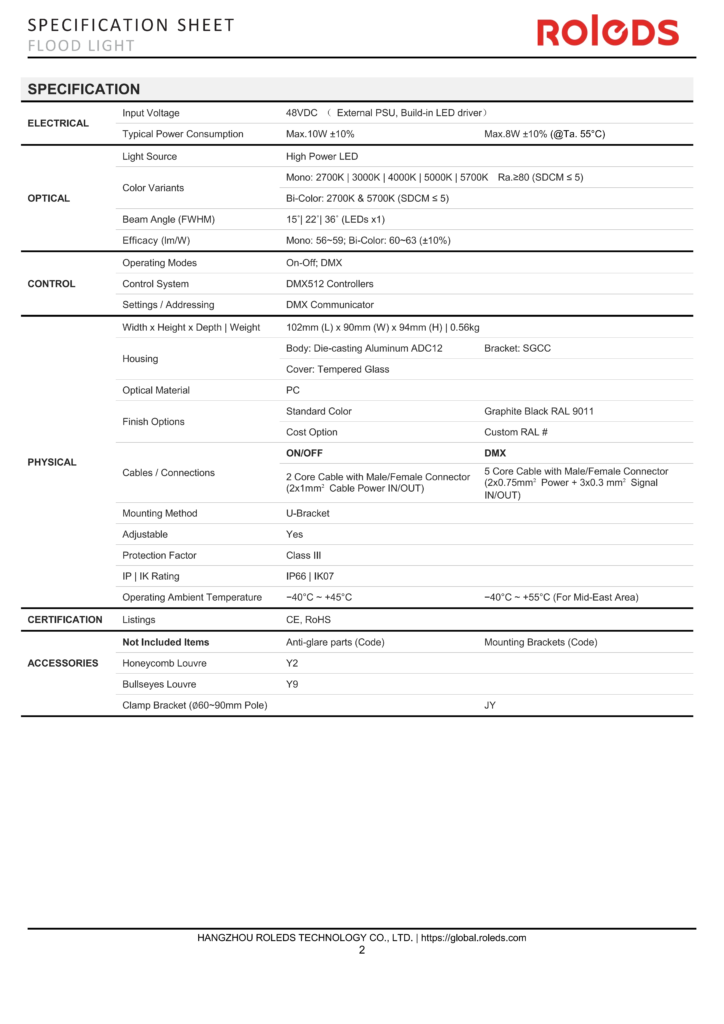

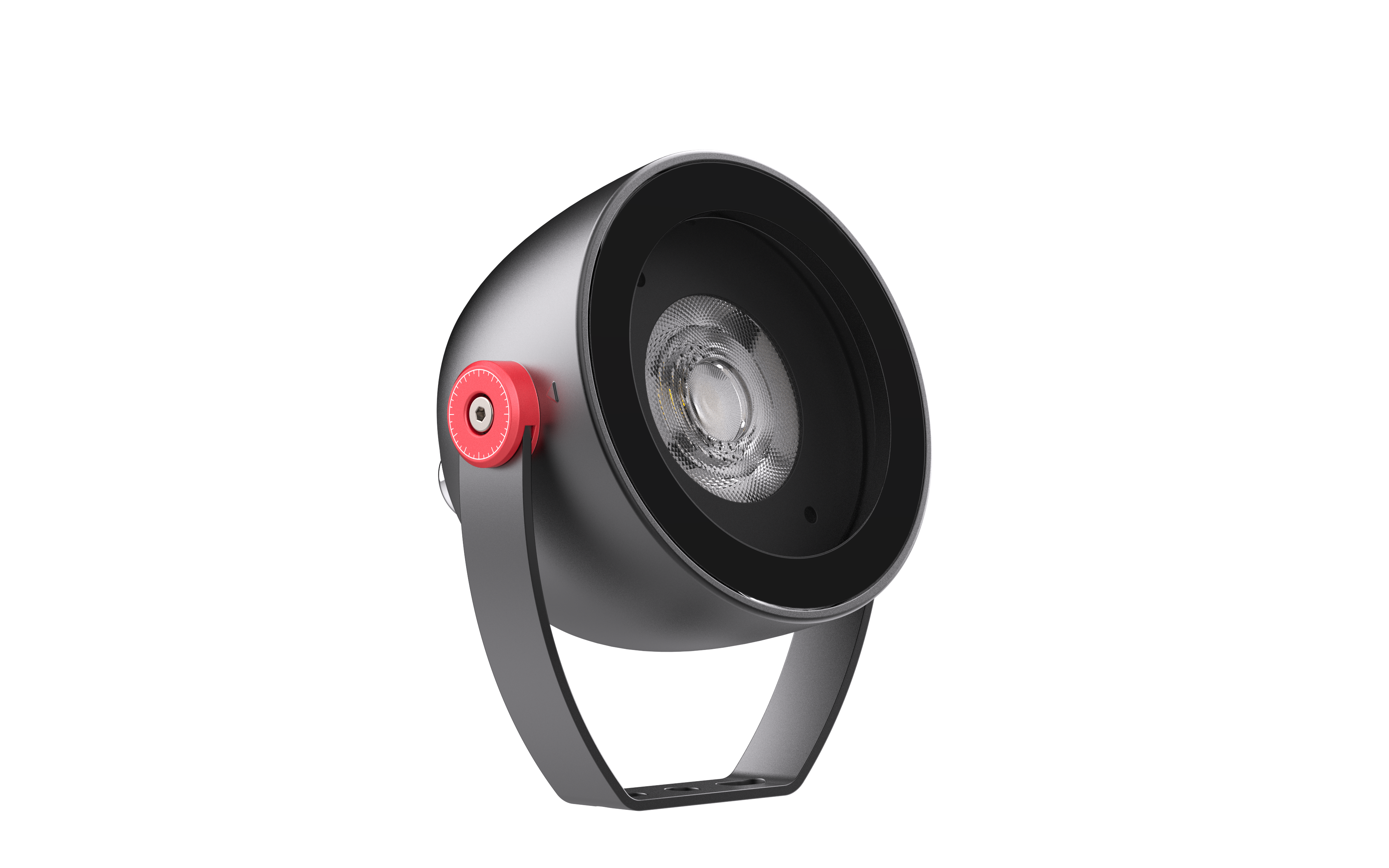

RFL90R COB
10W
48VDC
15°, 22°, 36°
2700K, 3000K, 4000K, 5000K, 5700K
DMX

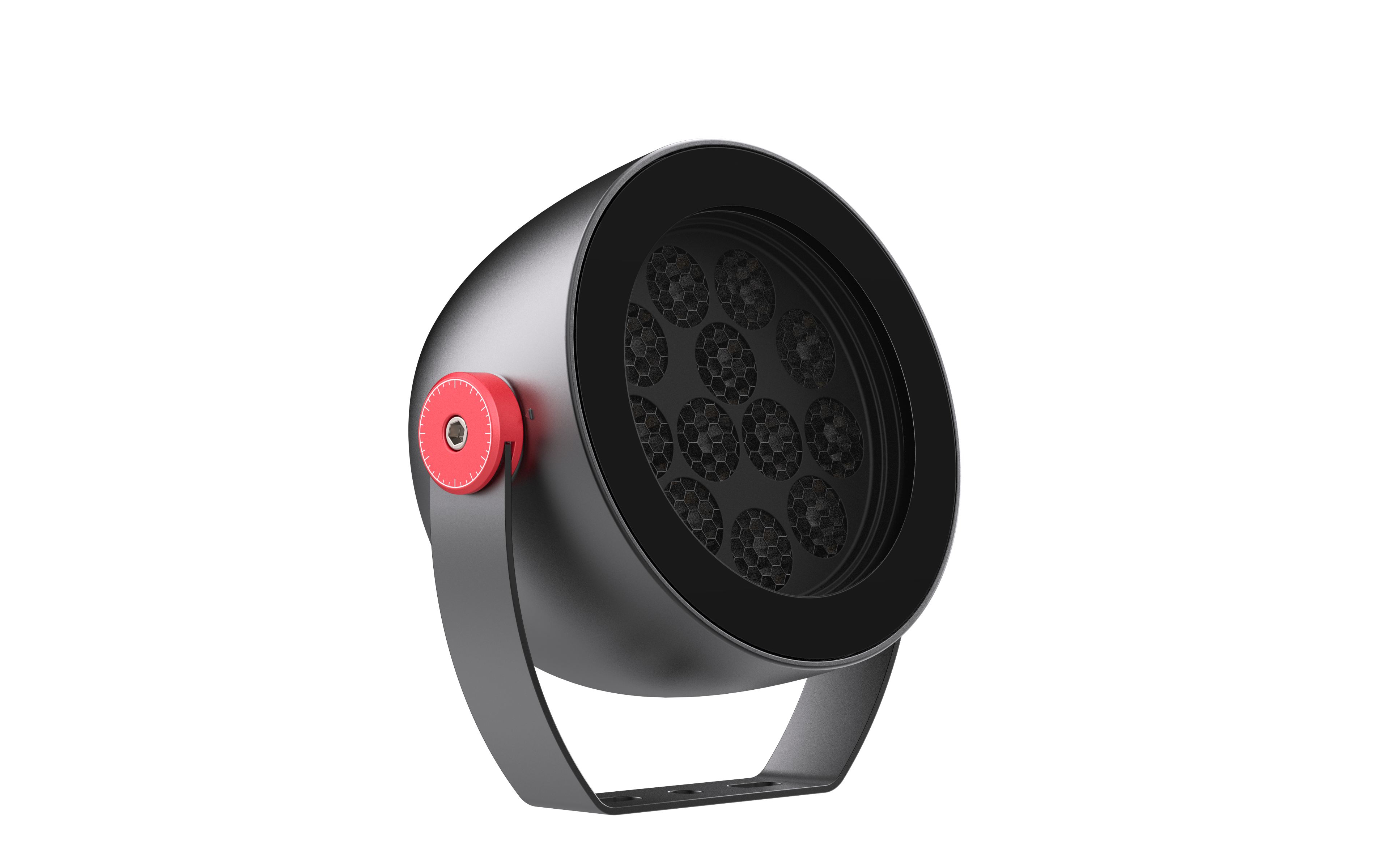

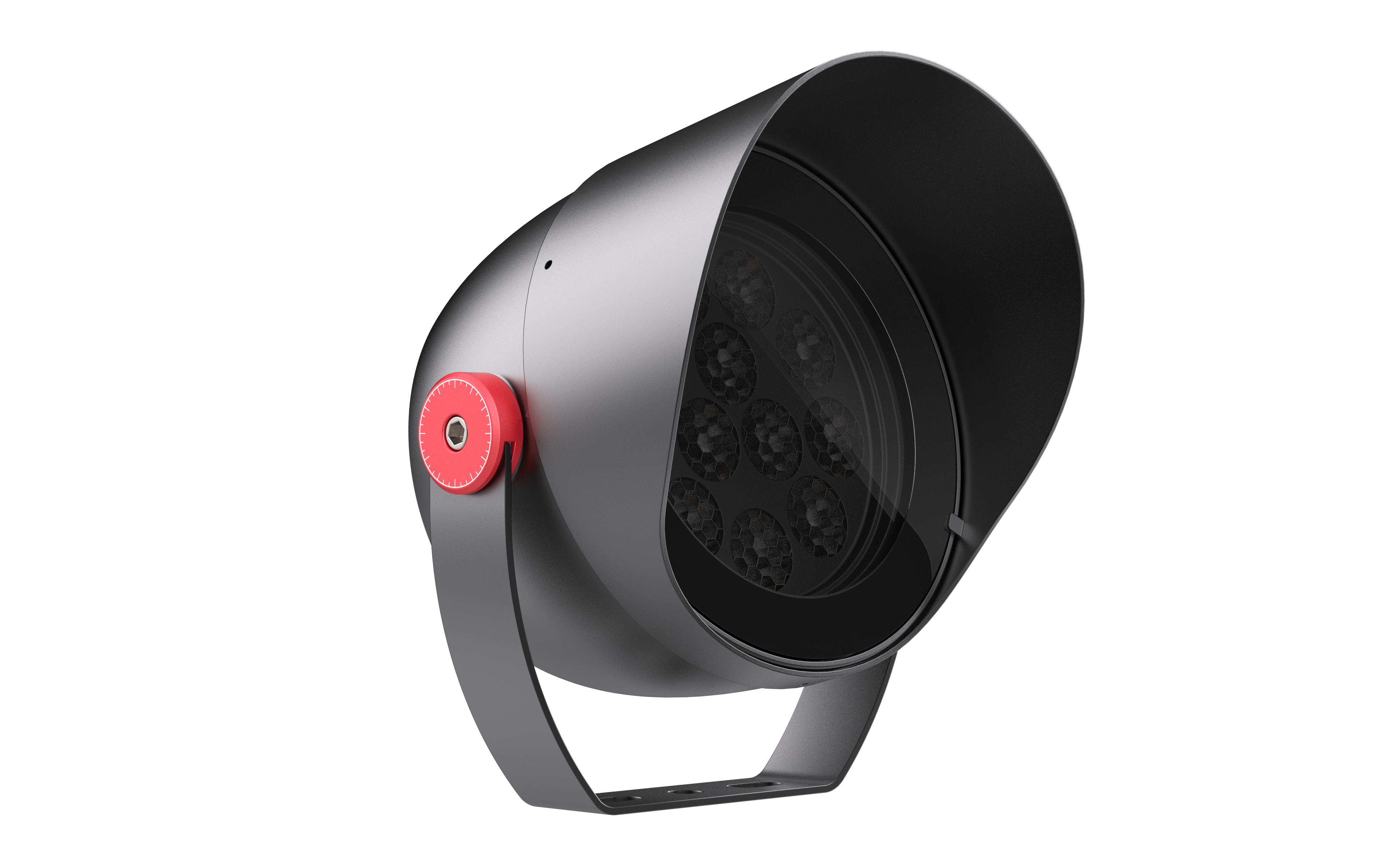

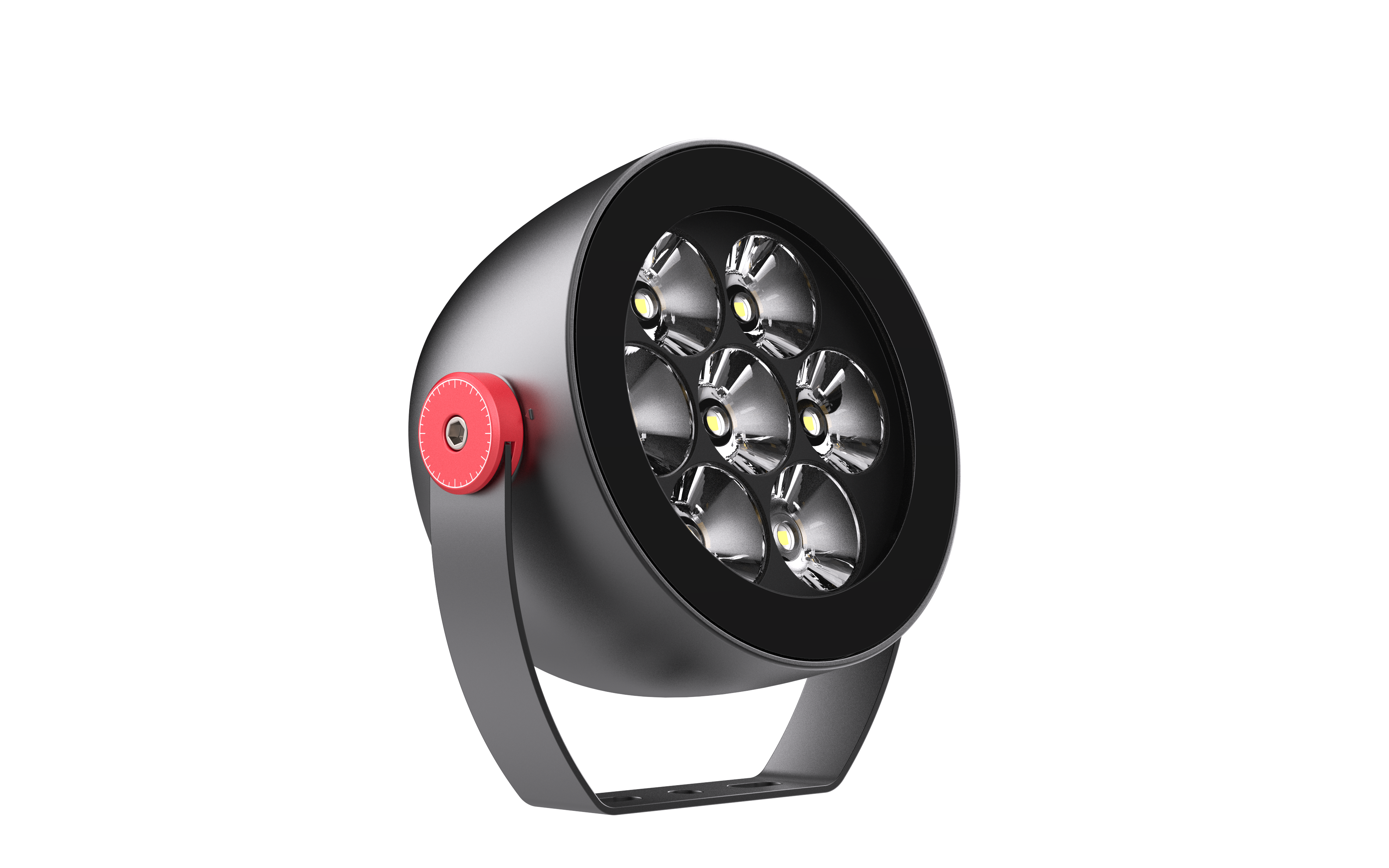

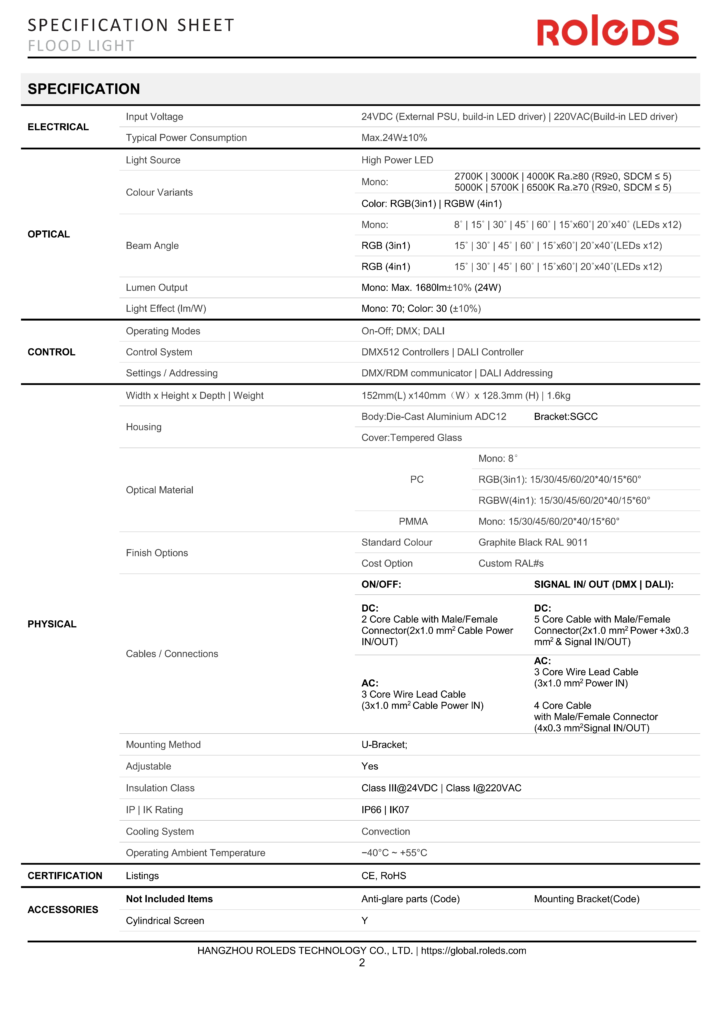

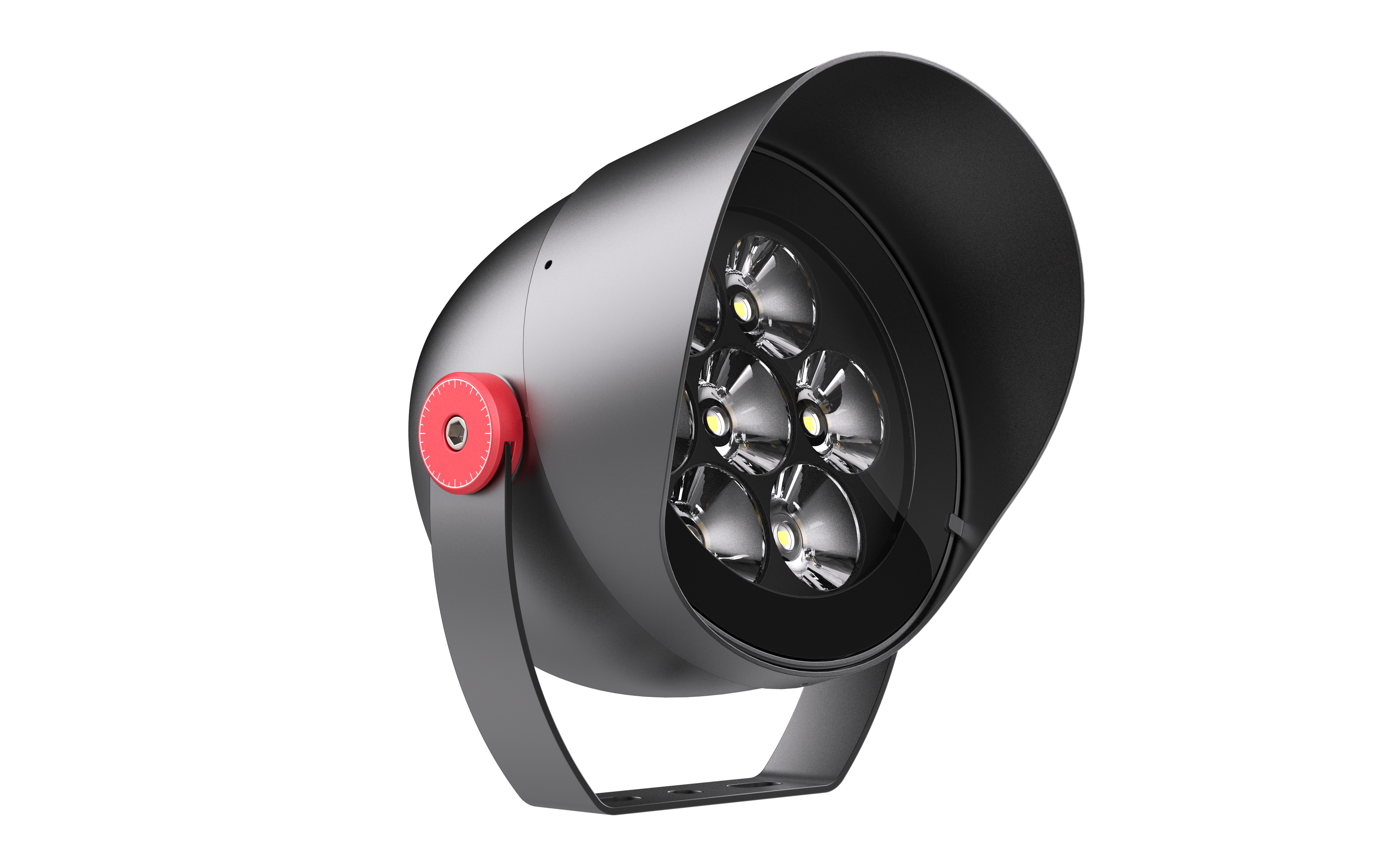

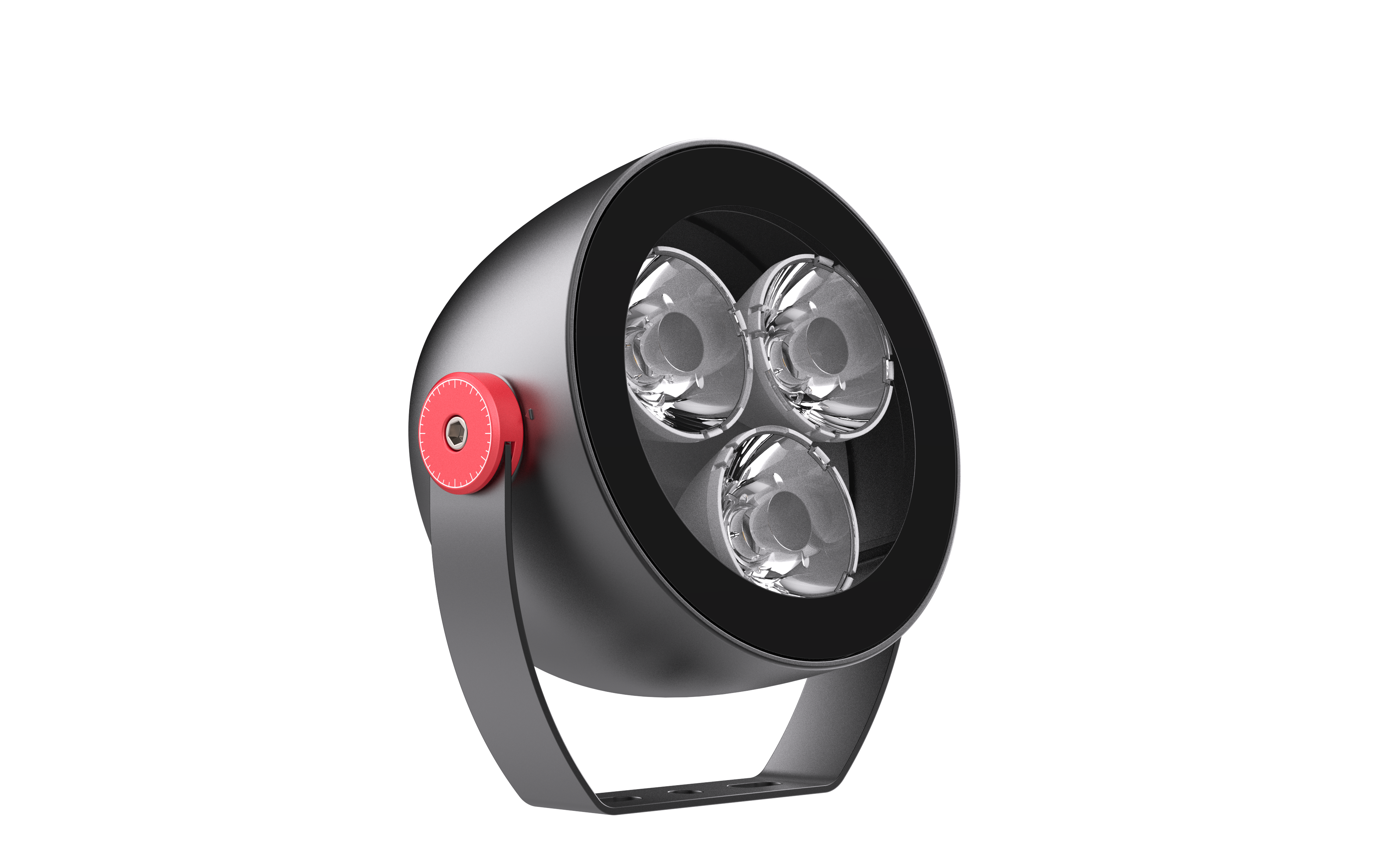

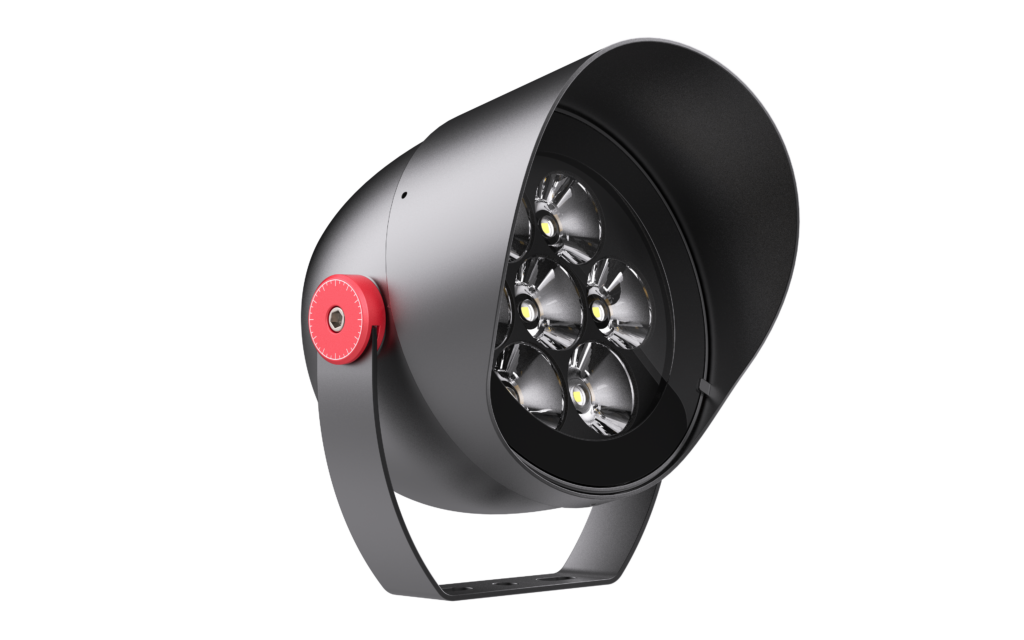

RFL140R
18W,24W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGBW ( 4 in 1 )
DMX, DALI

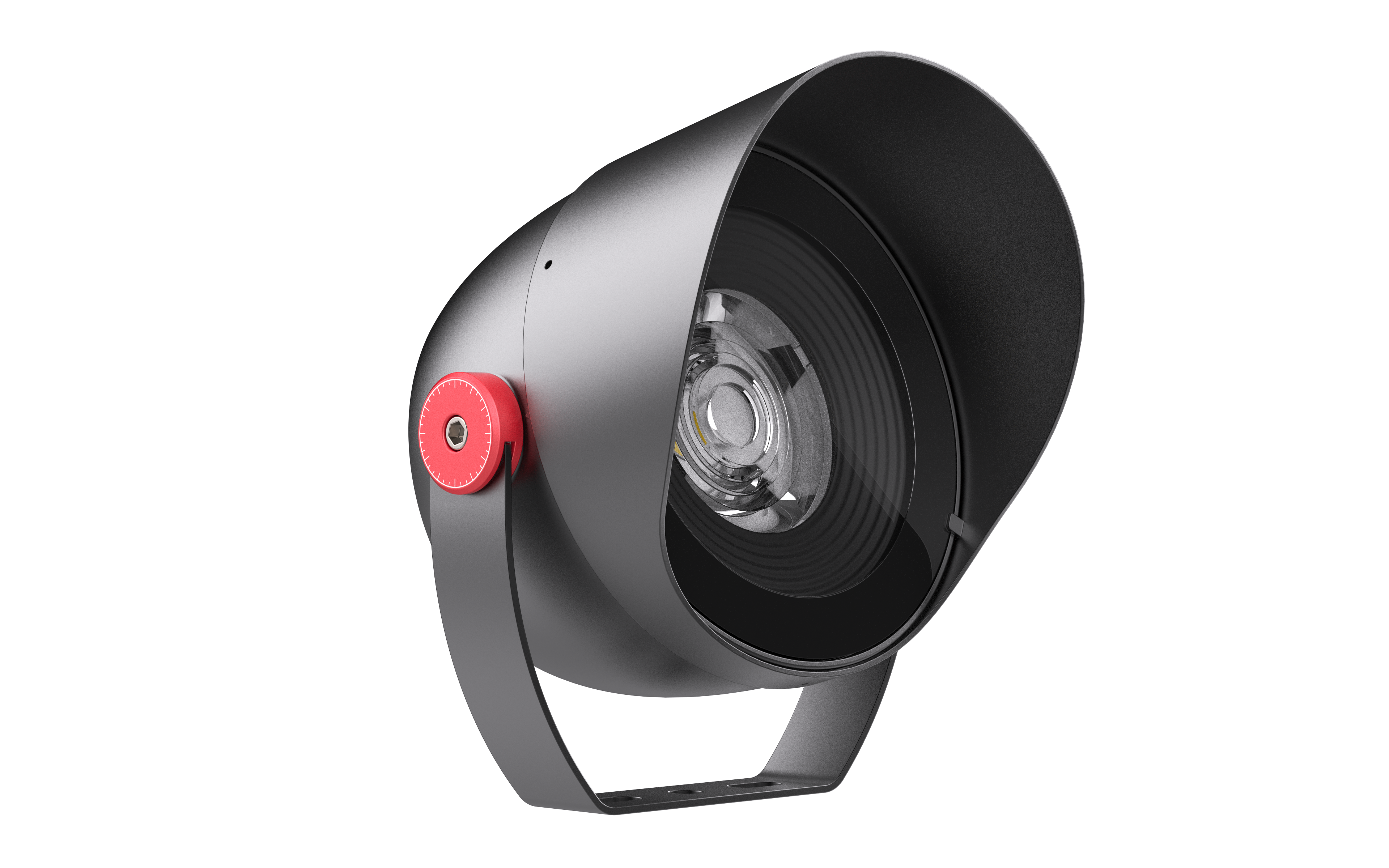

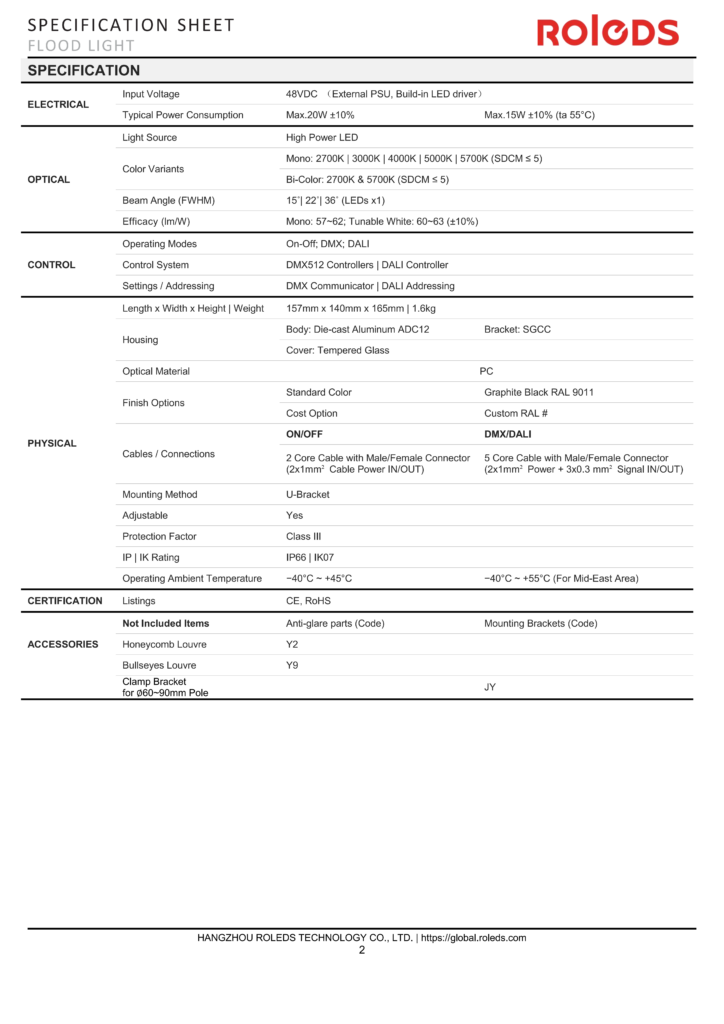

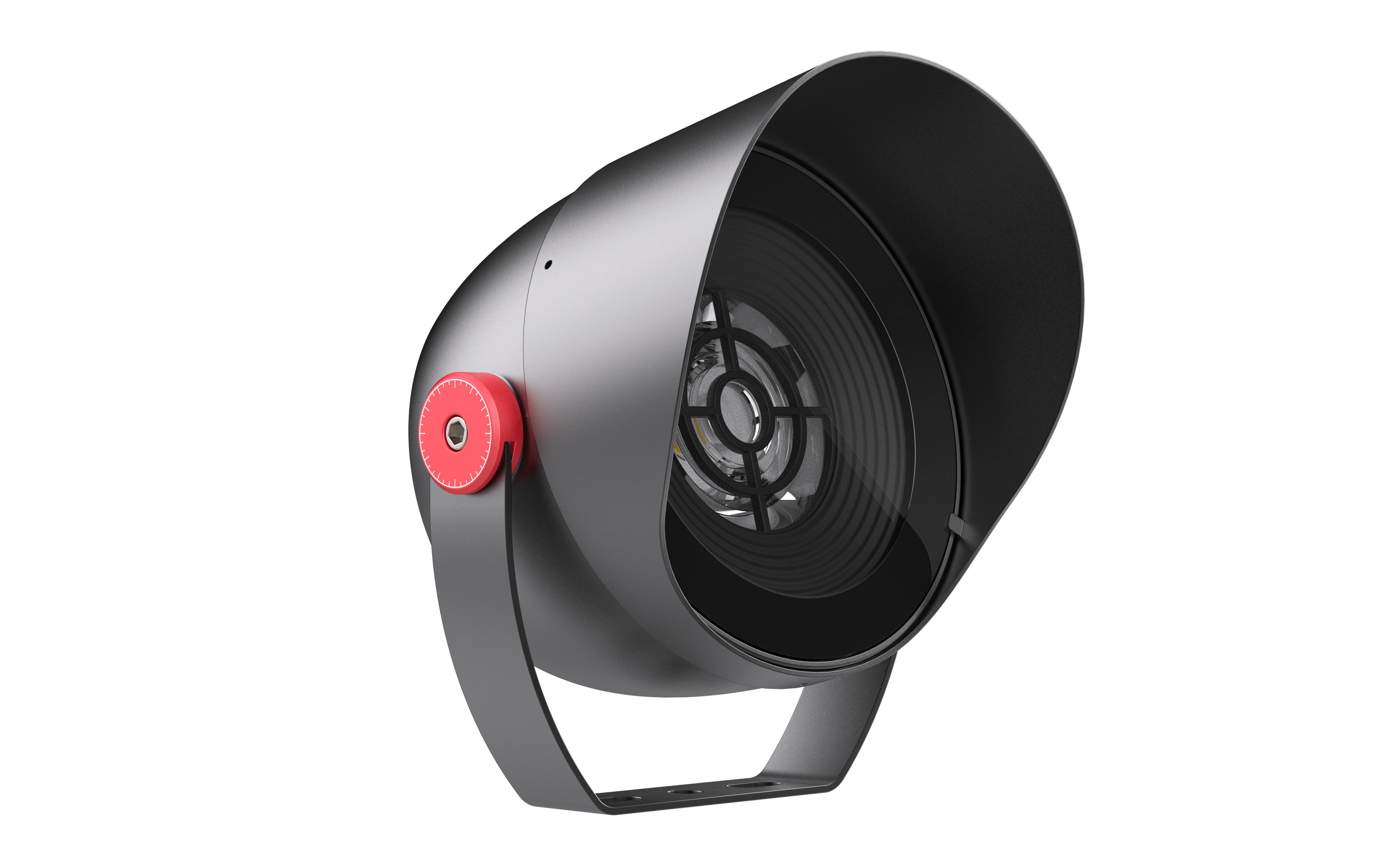

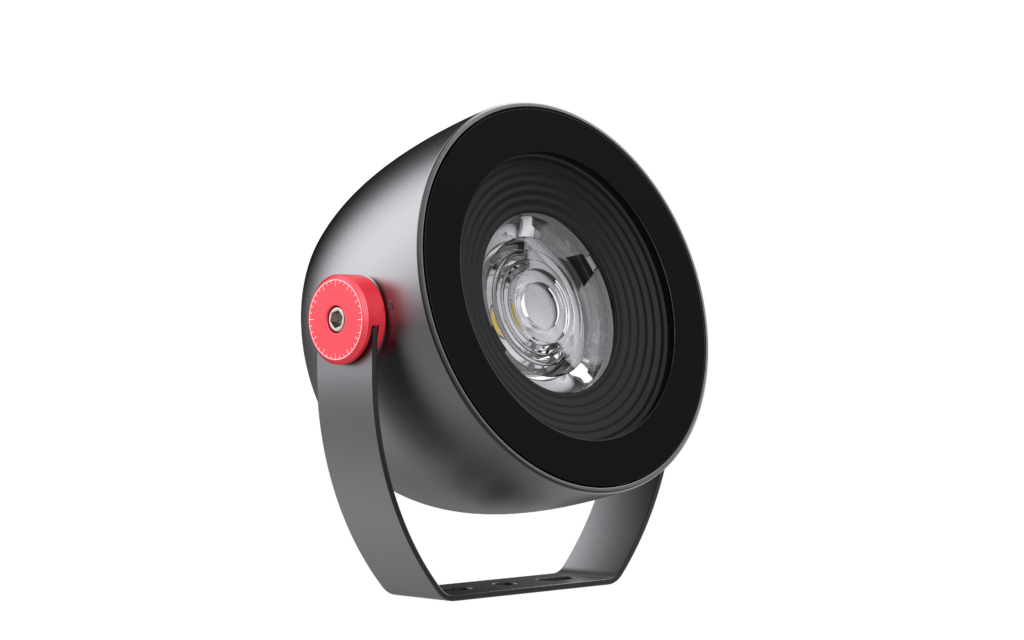

RFL140R COB
20W
48VDC
15°, 22°, 36°
2700K, 3000K, 4000K, 5000K, 5700K
DMX, DALI

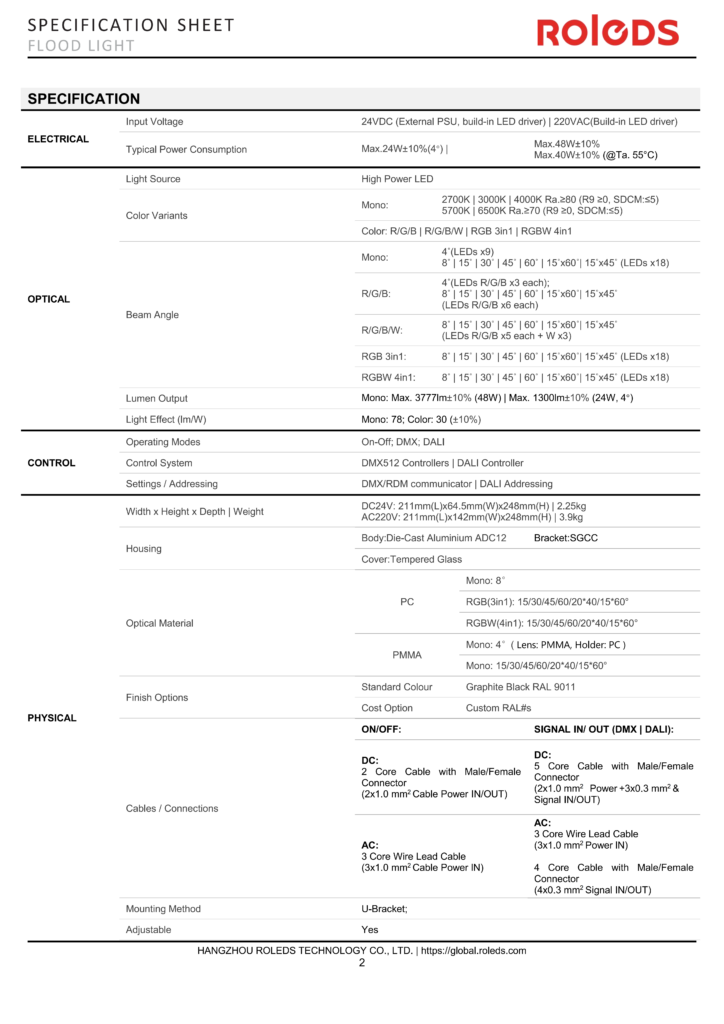

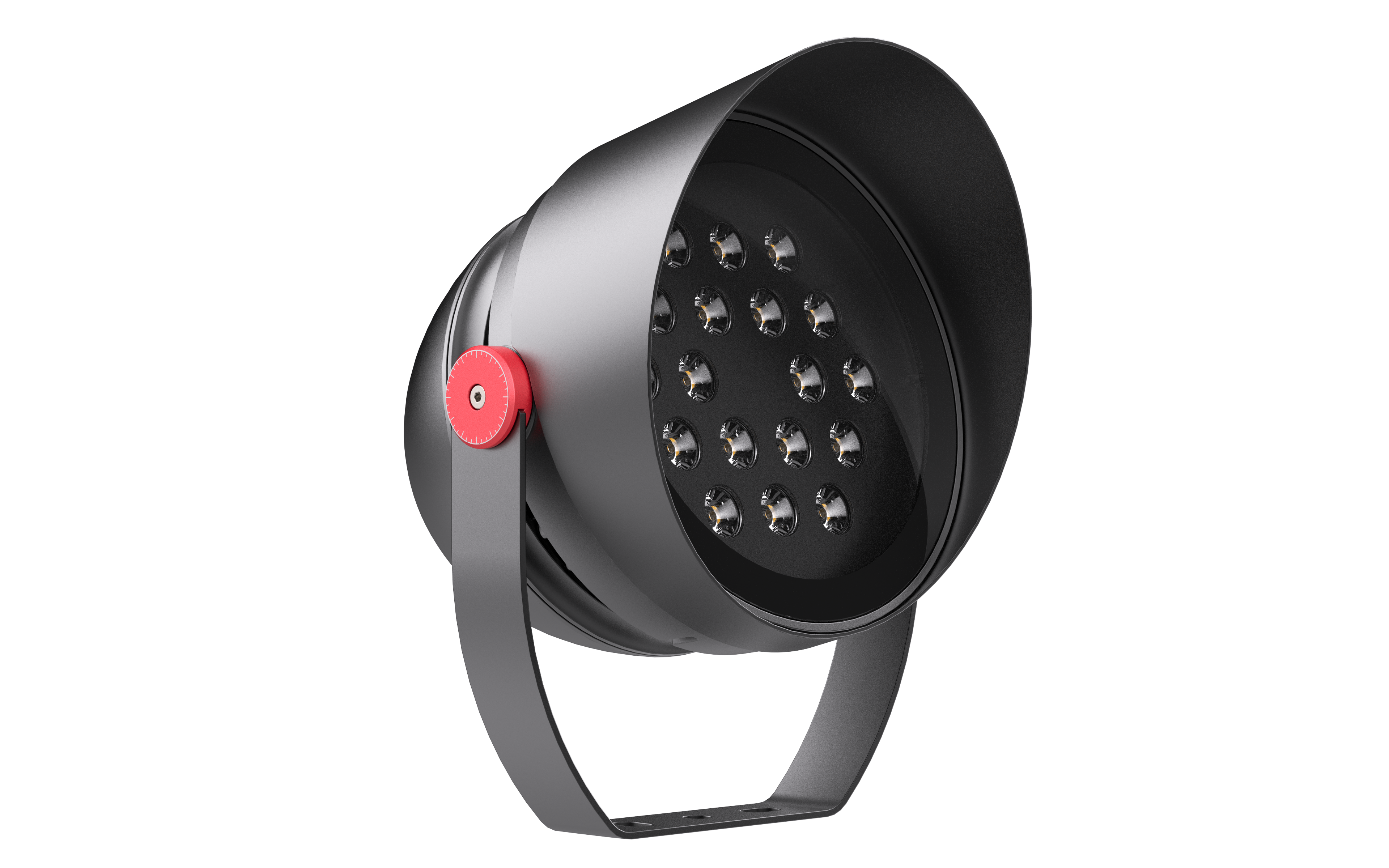

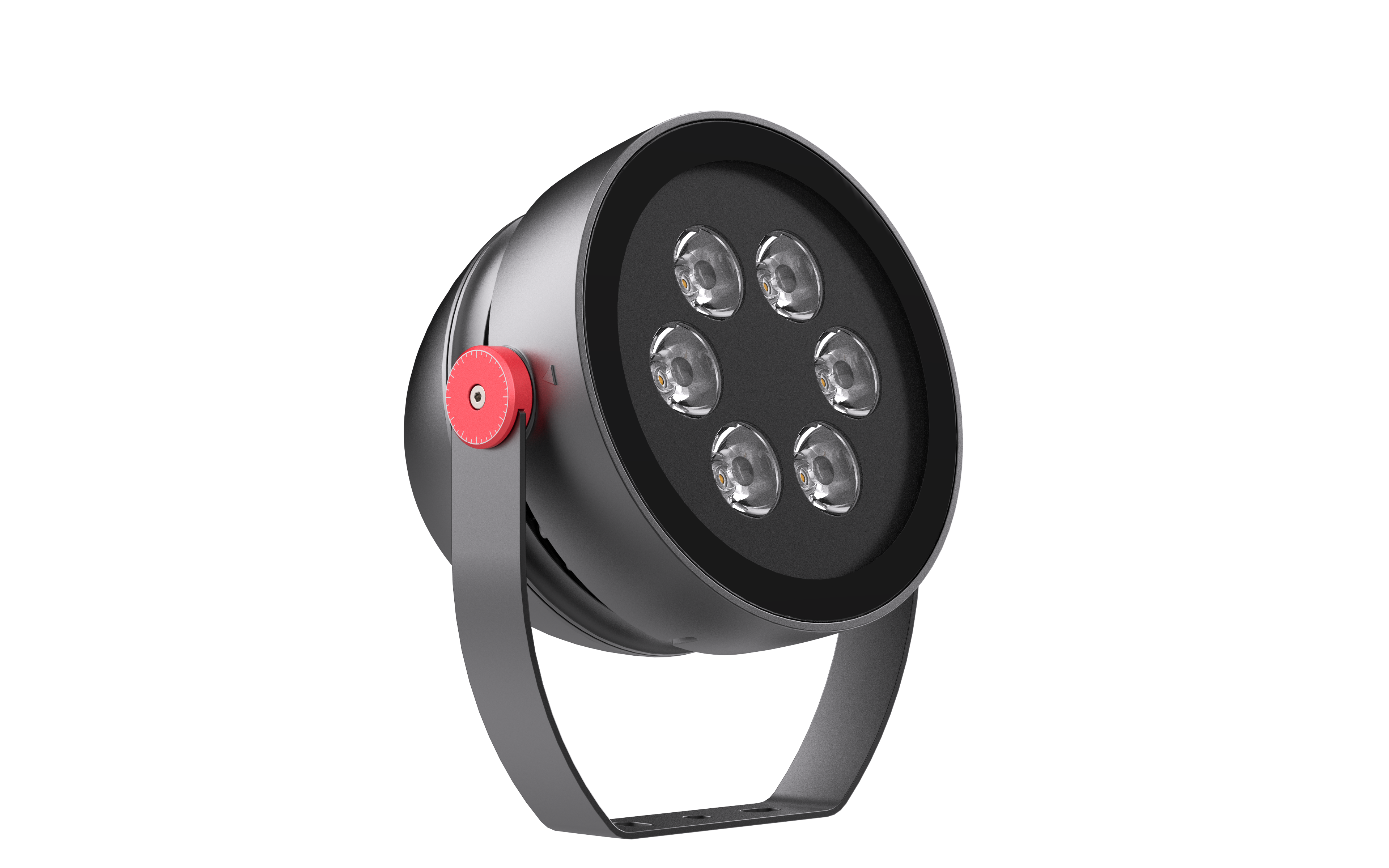

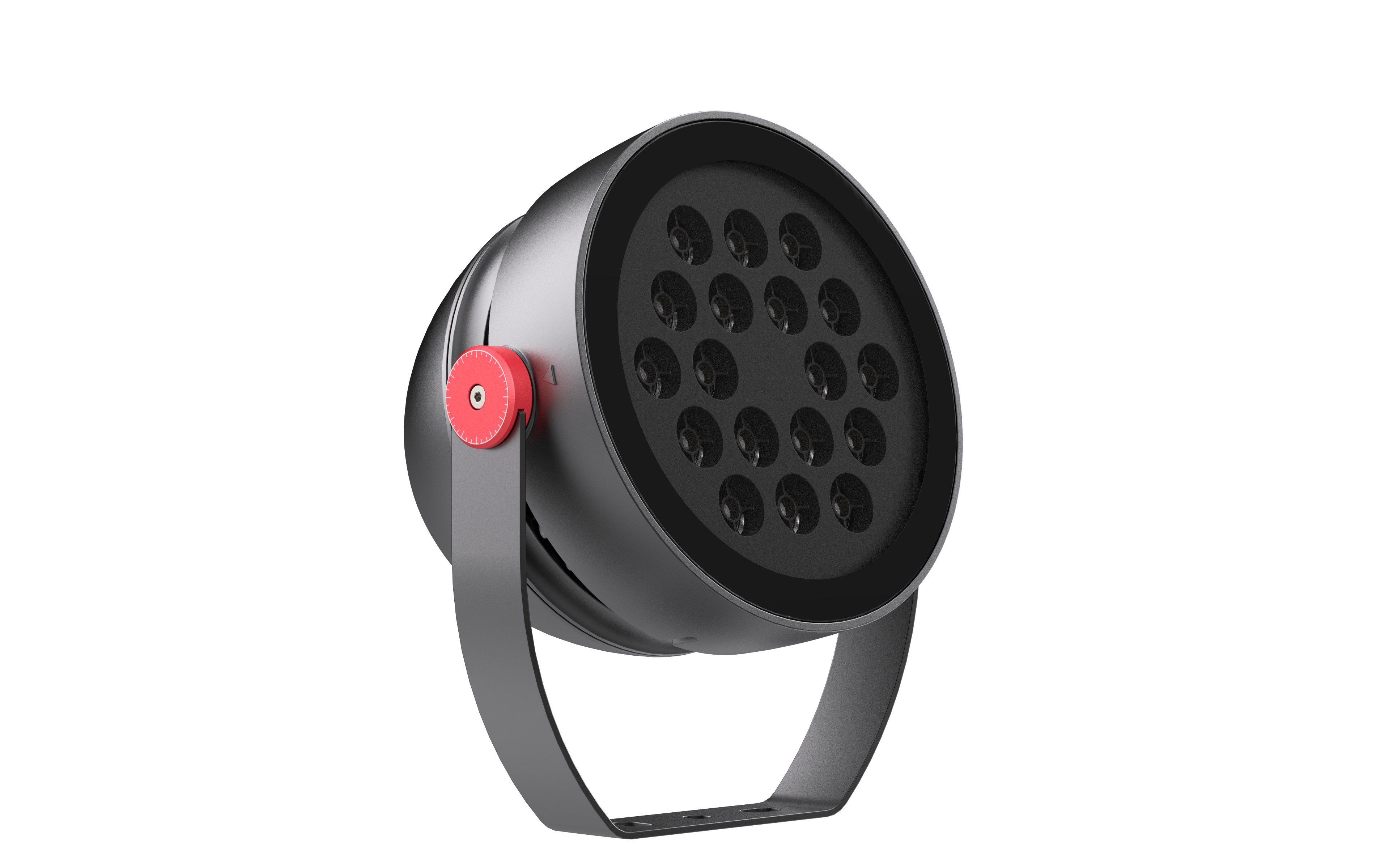

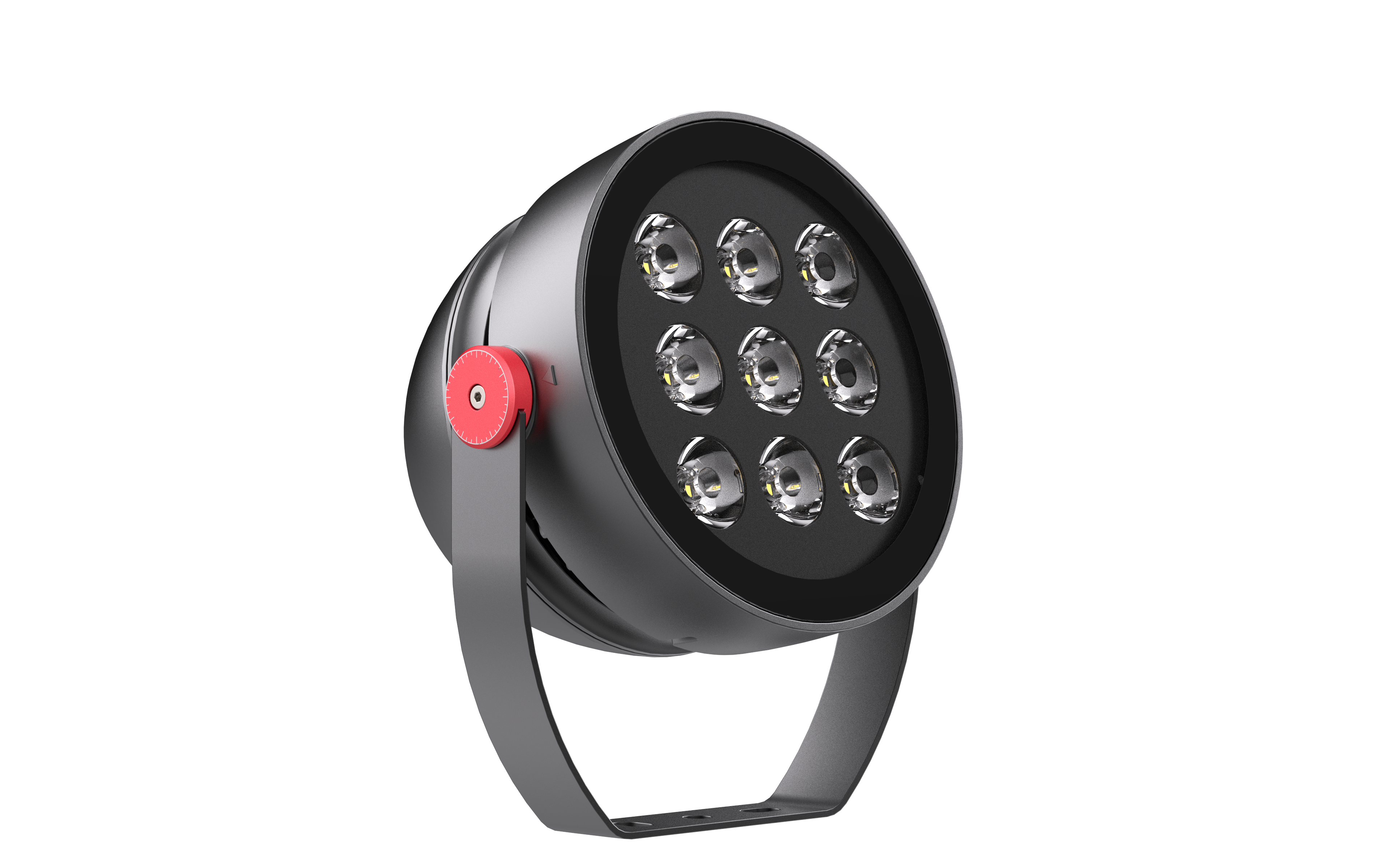

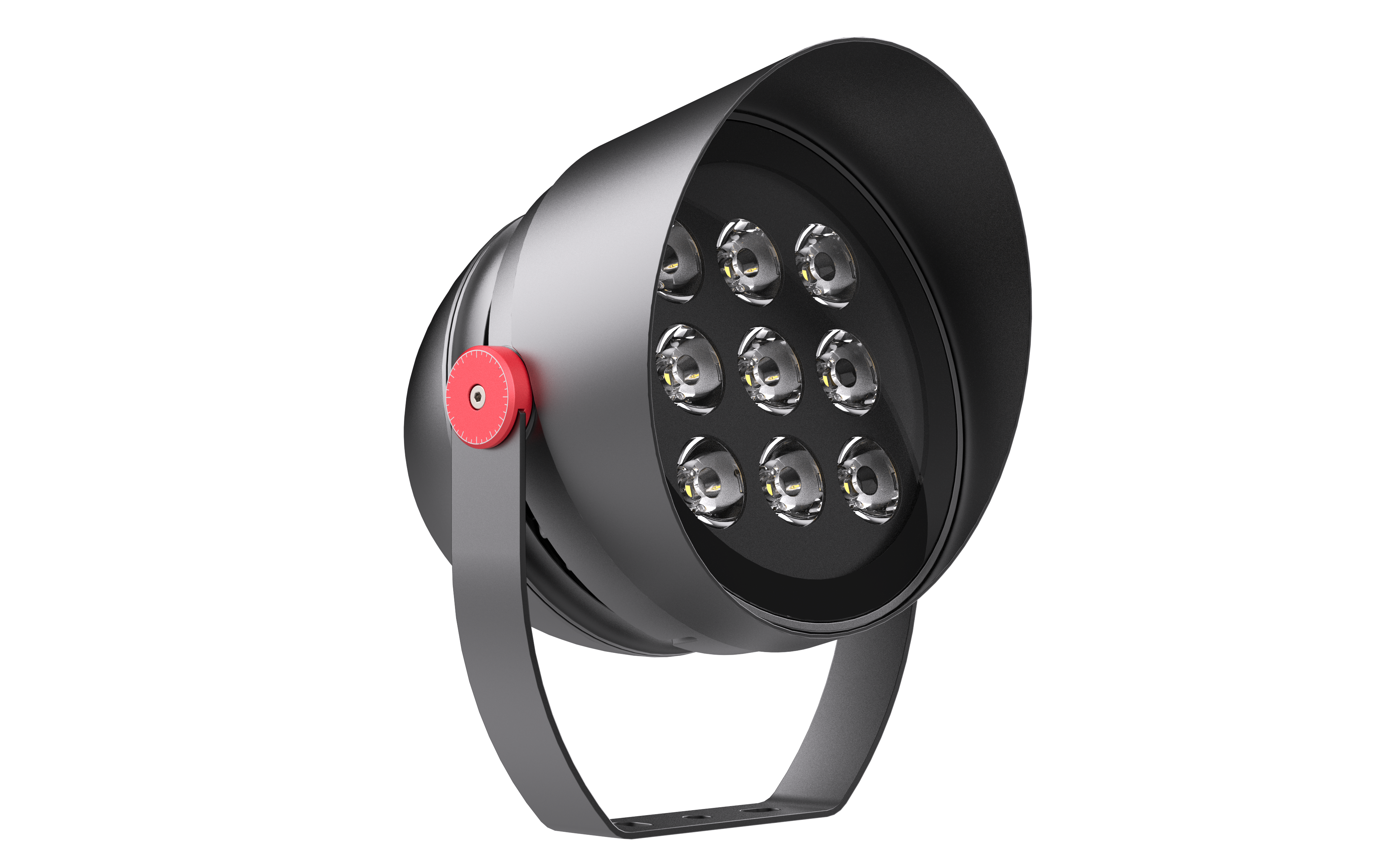

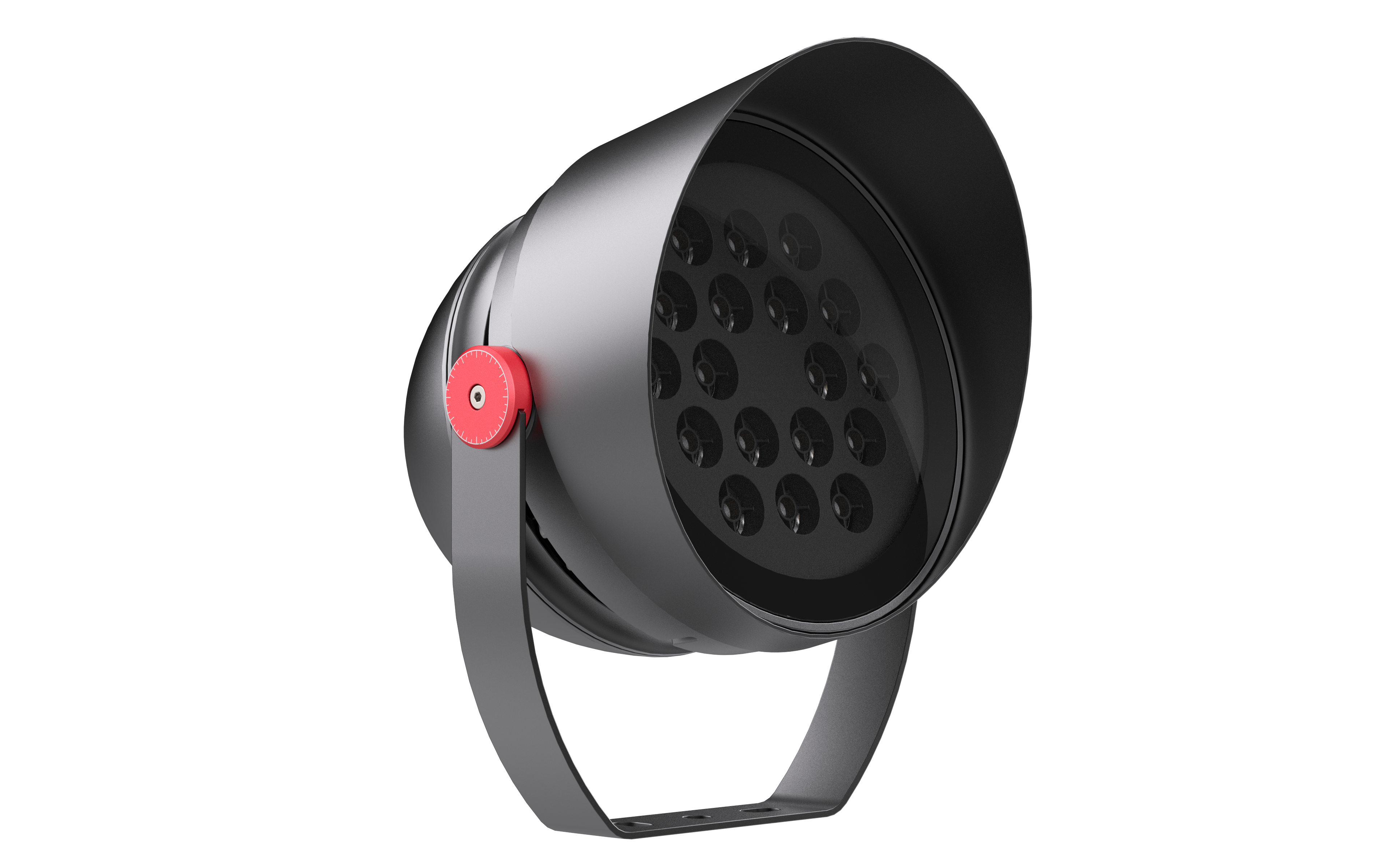

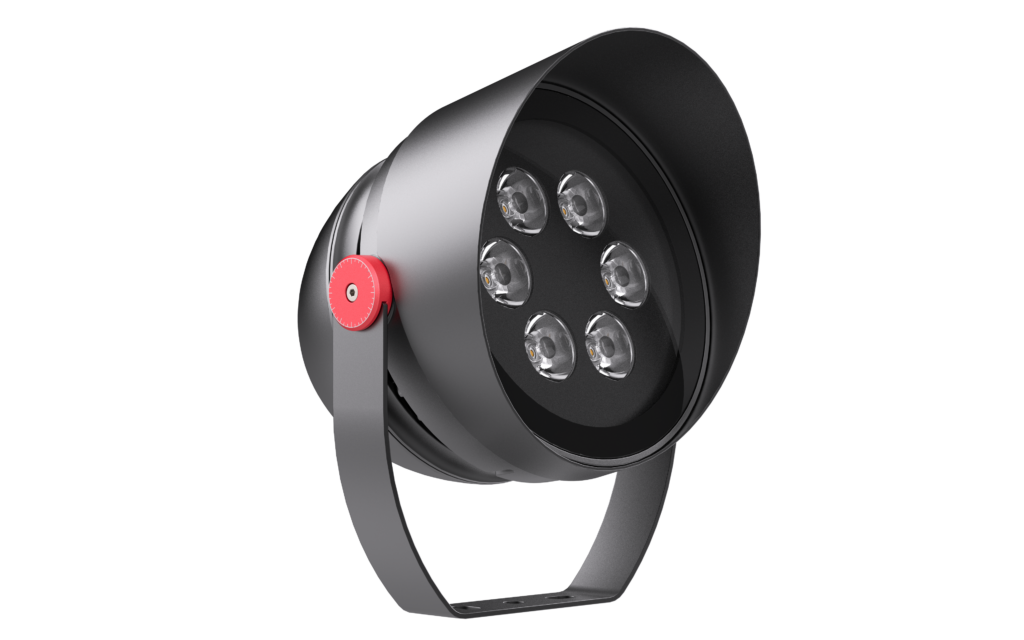

RFL190R
24W,36W,48W
220VAC, 24VDC
4°, 8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW, RGBW ( 4 in 1 )
DMX, DALI

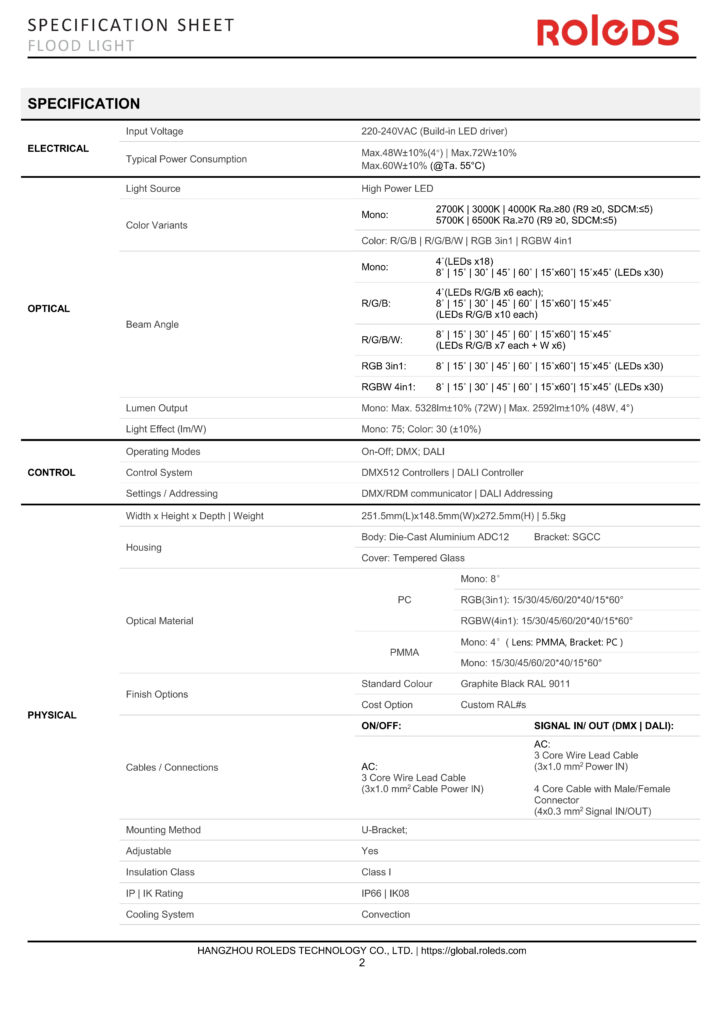

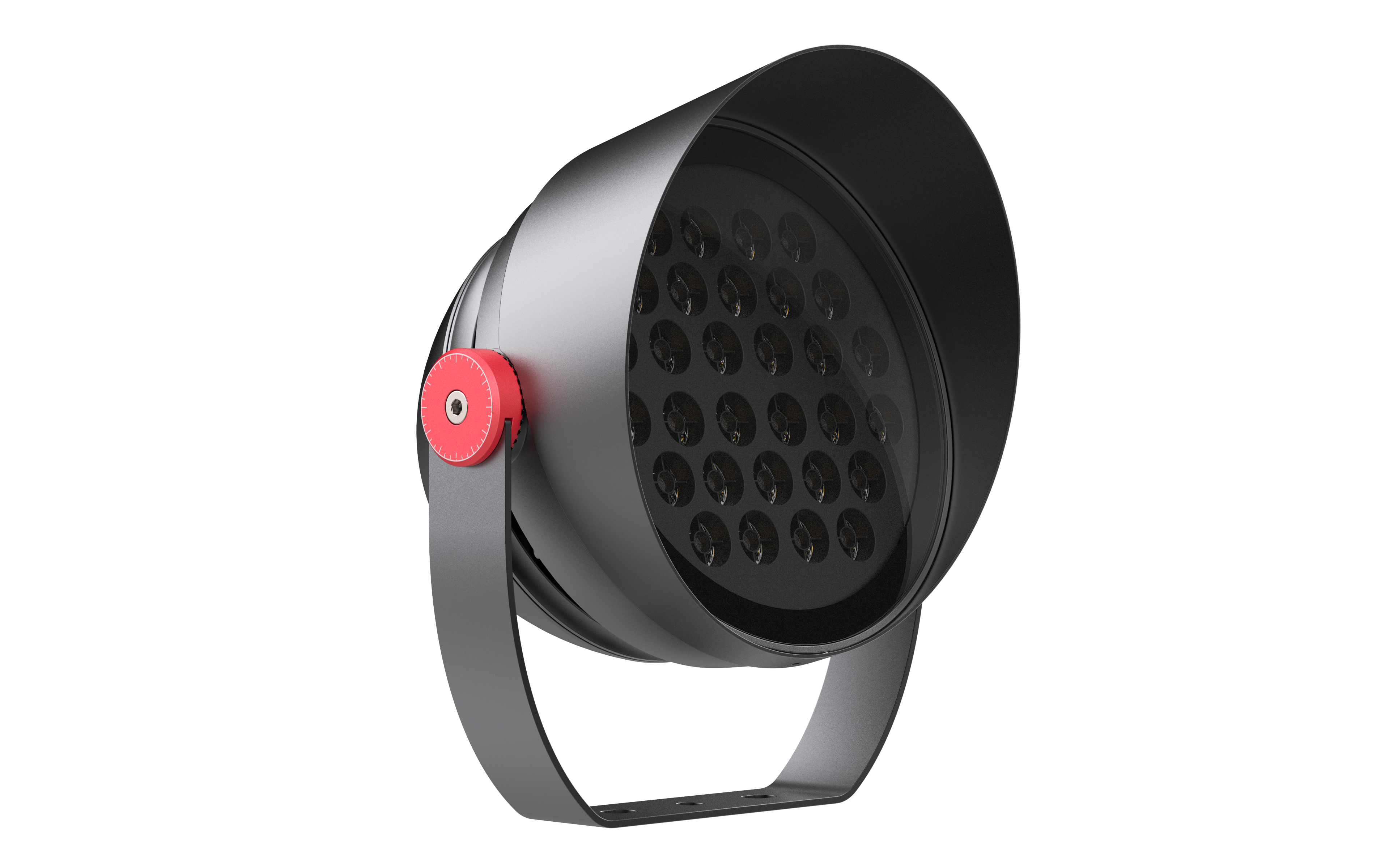

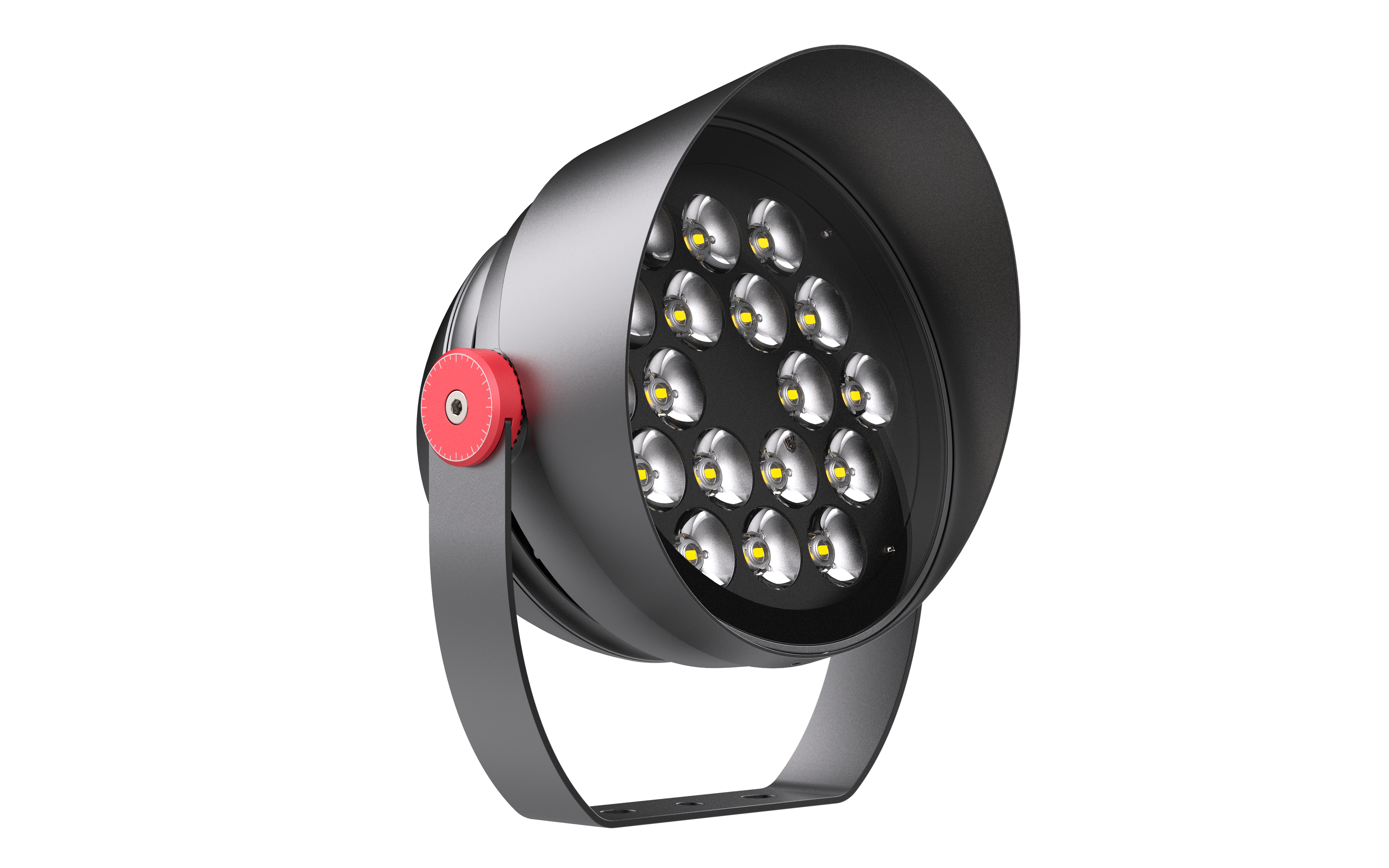

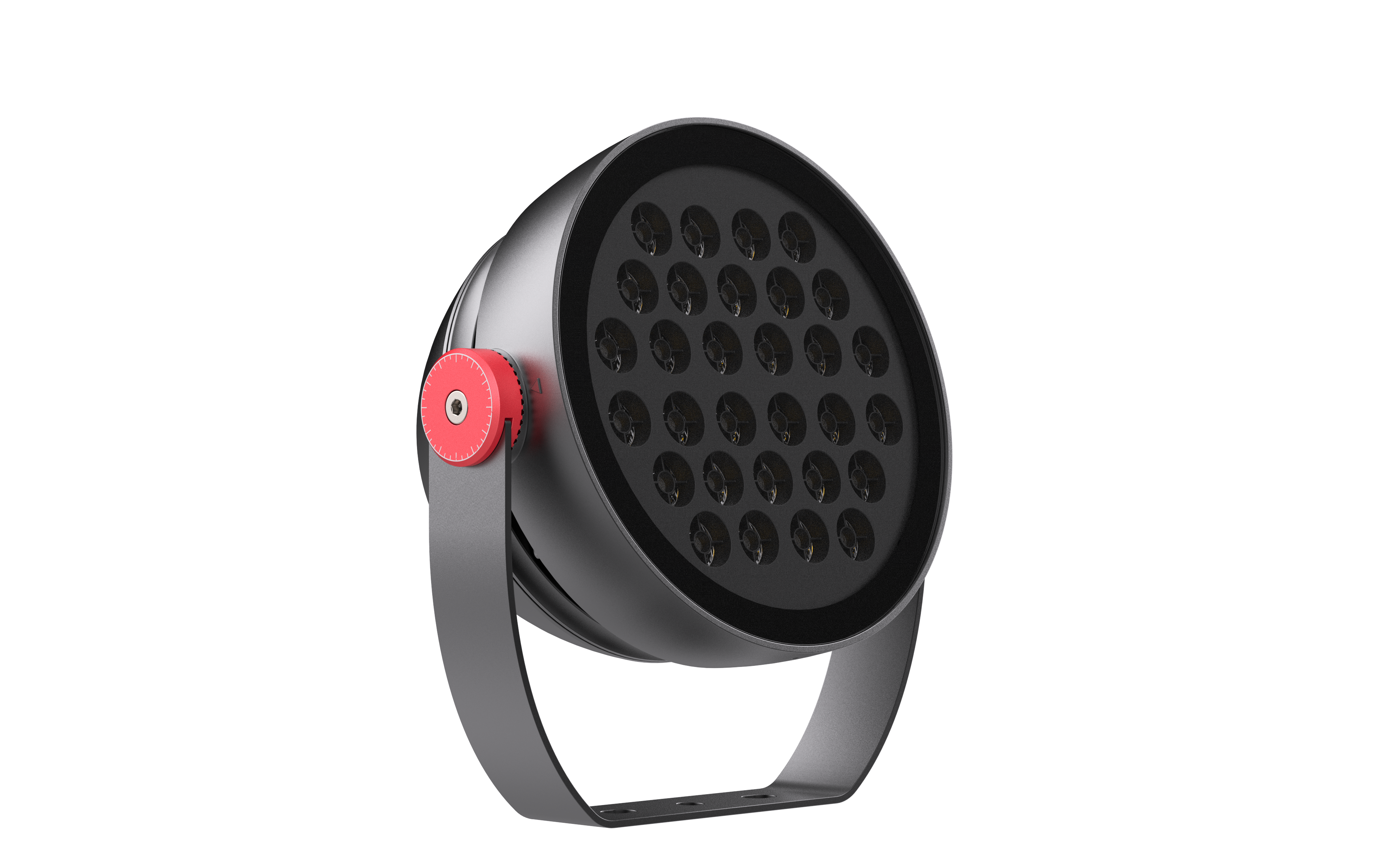

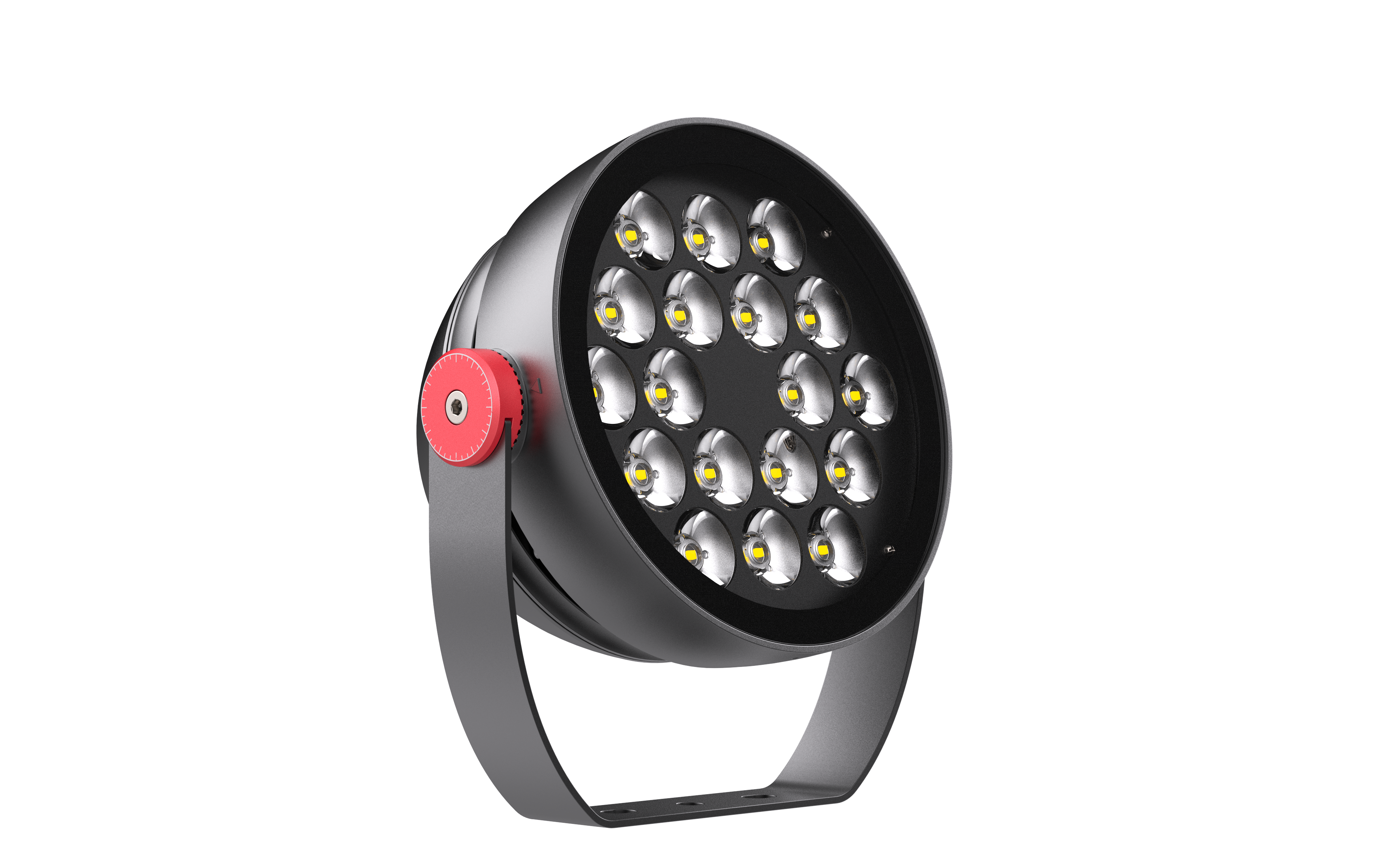

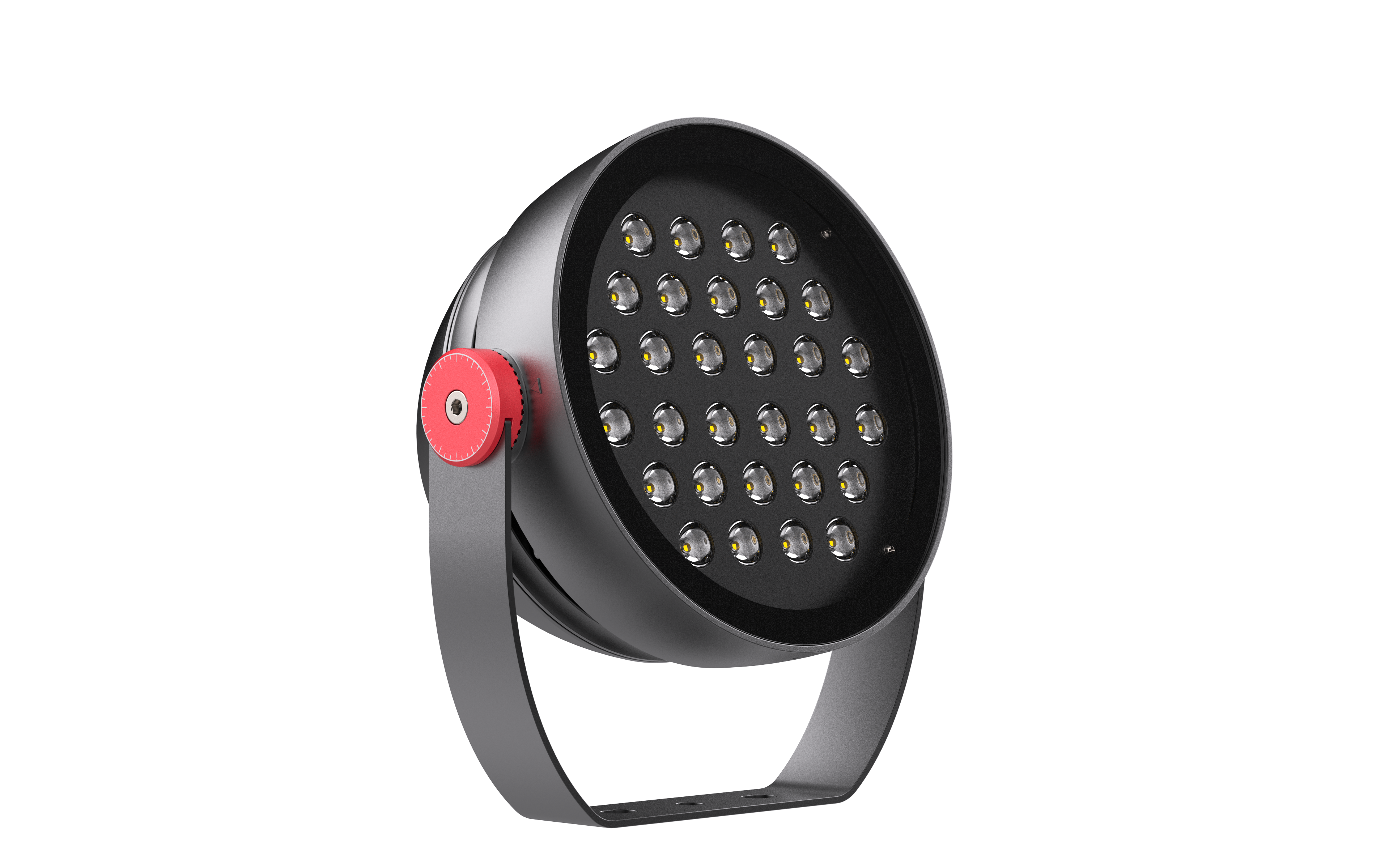

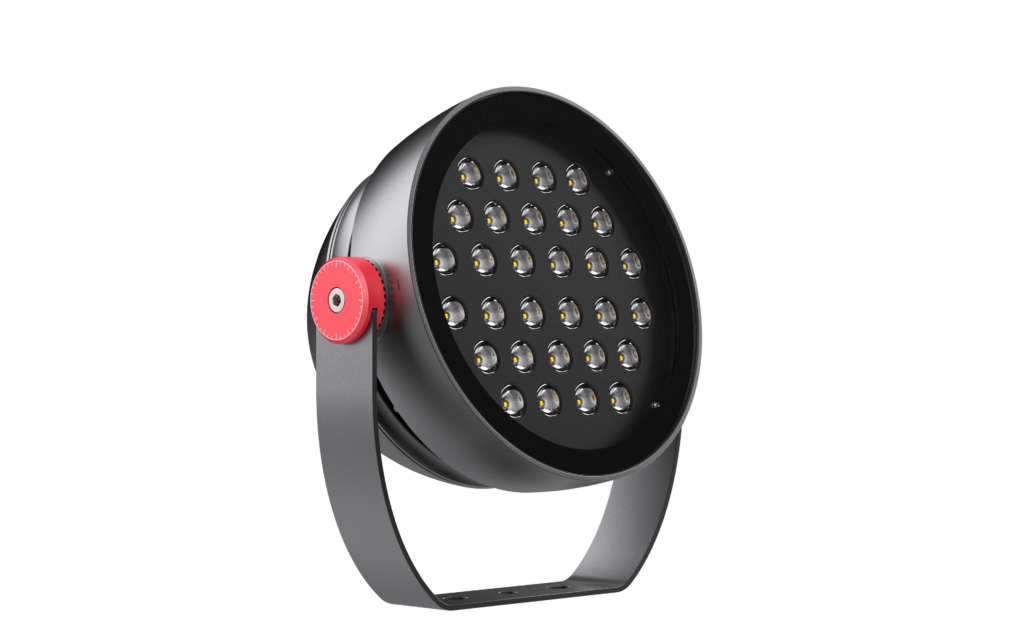

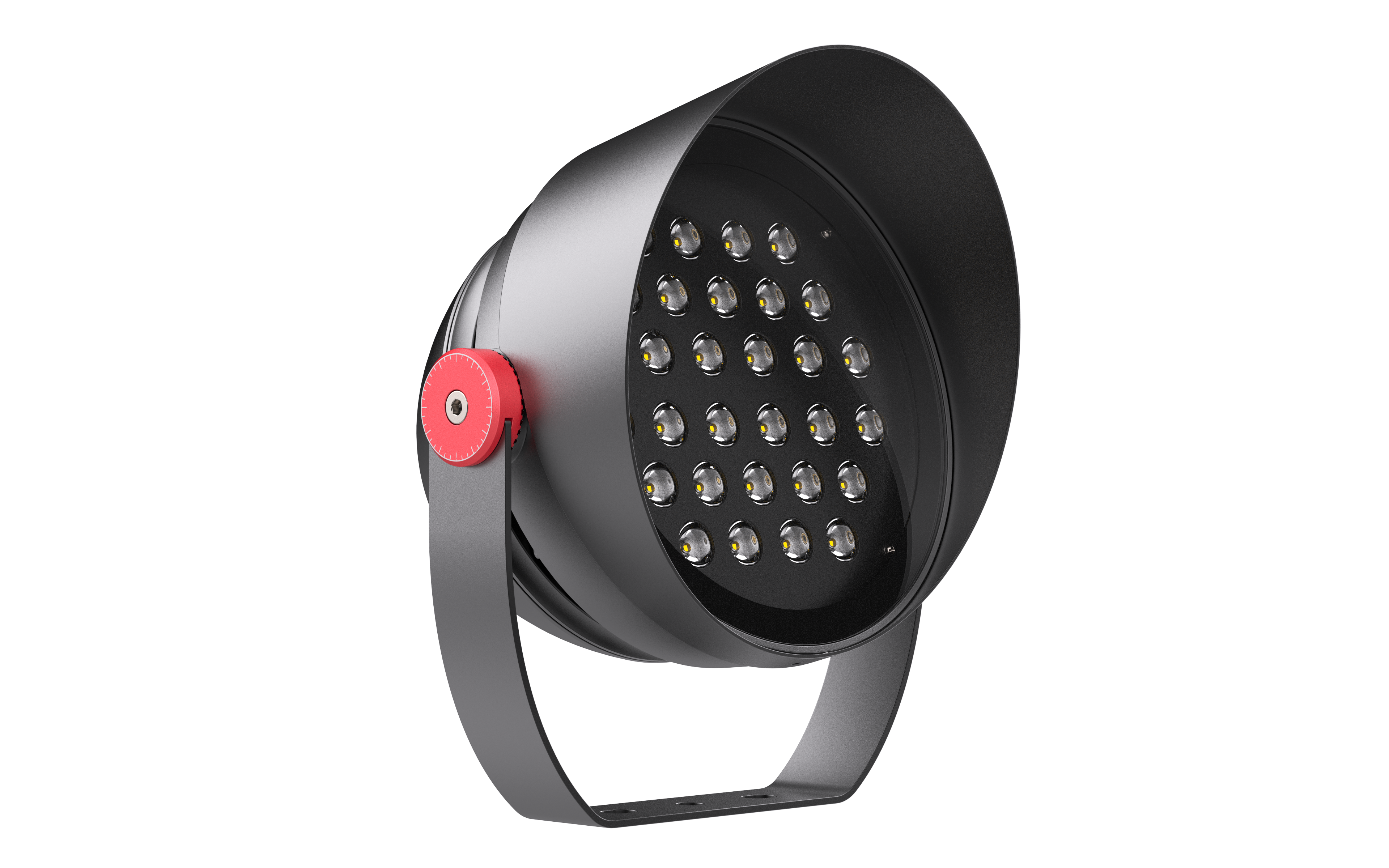

RFL220R
48W,60W,72W
220VAC
4°, 8°, 15°, 30°, 45°, 60°, 15x45°, 15x60°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW, RGBW ( 4 in 1 )
DMX, DALI

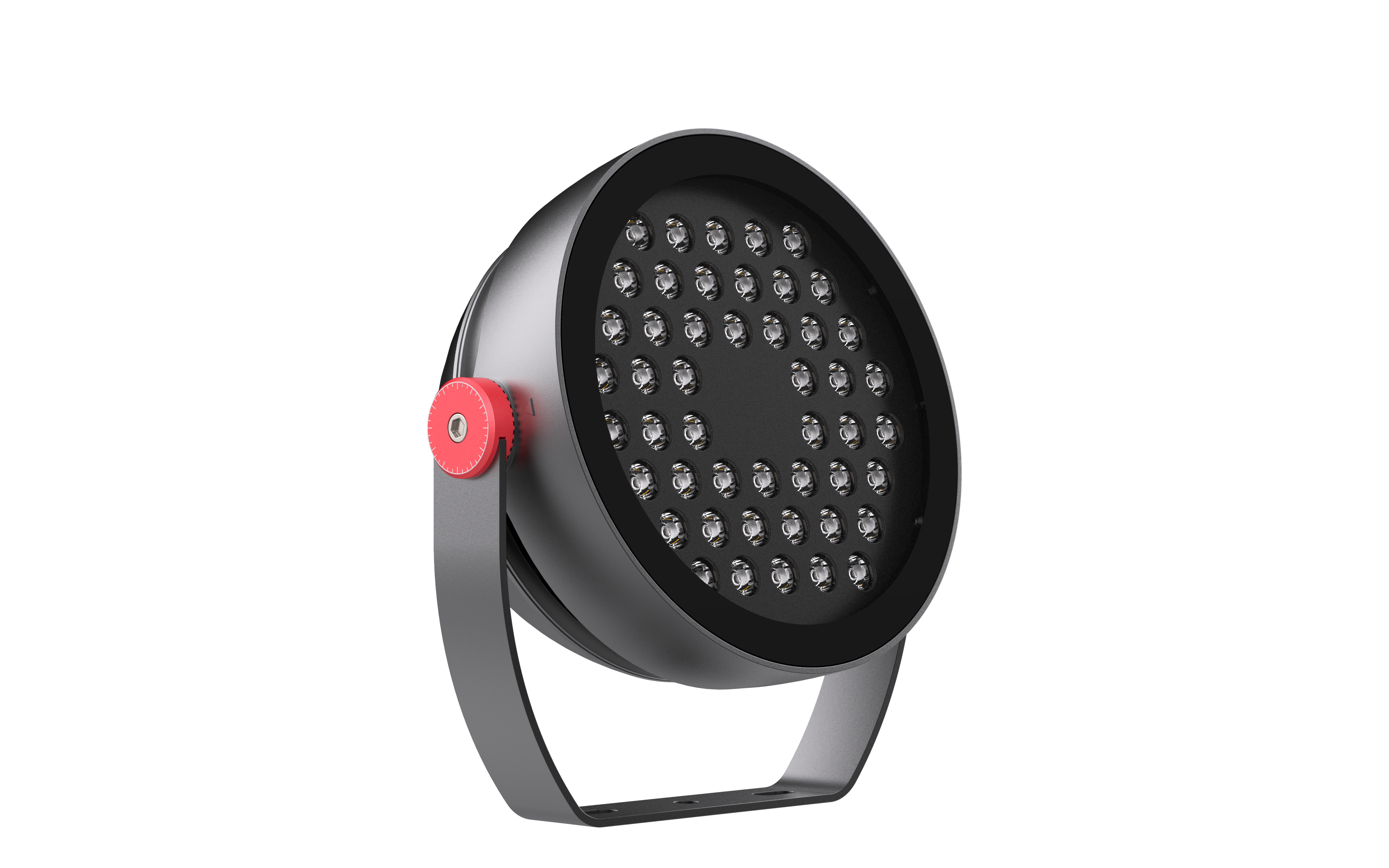

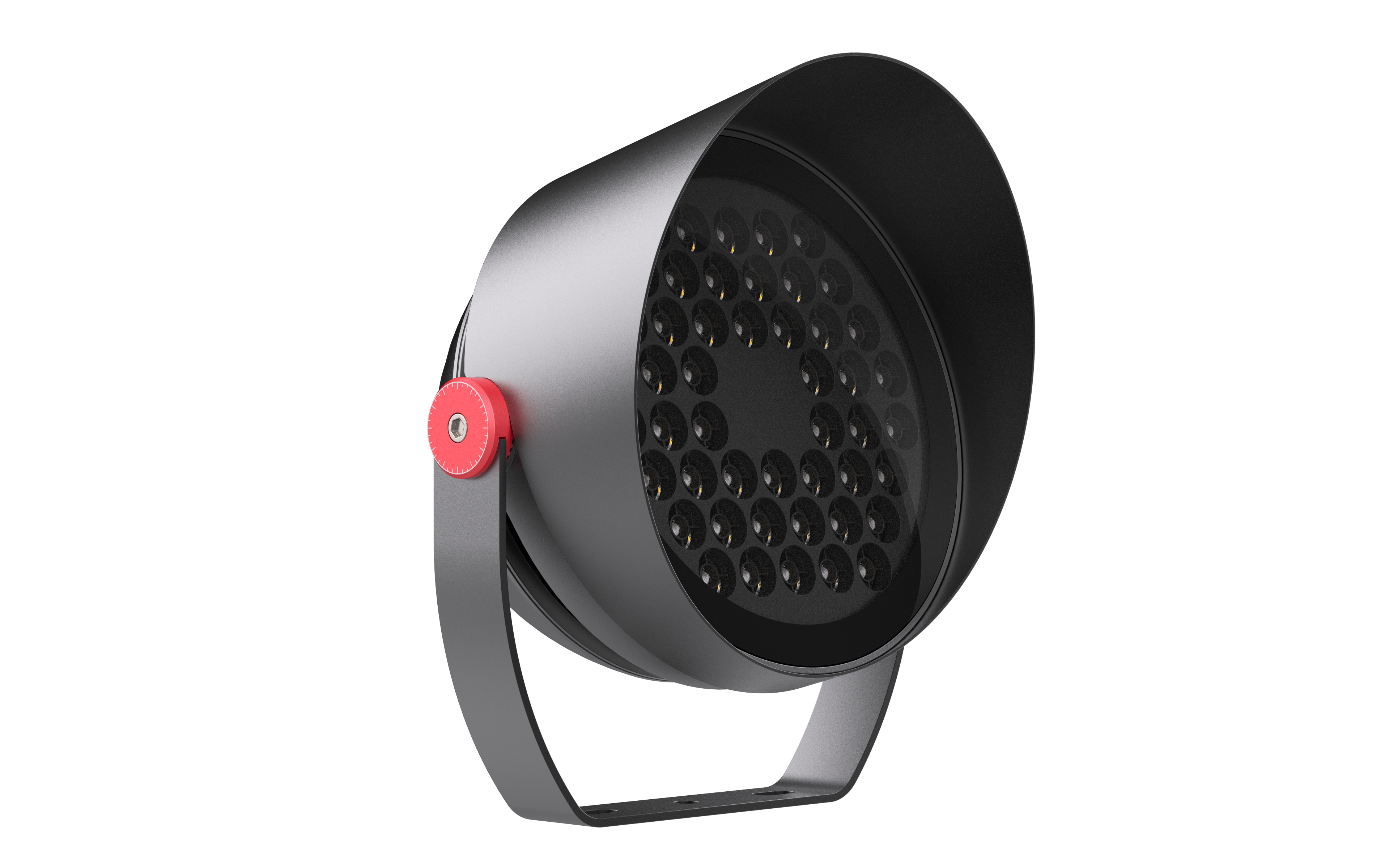

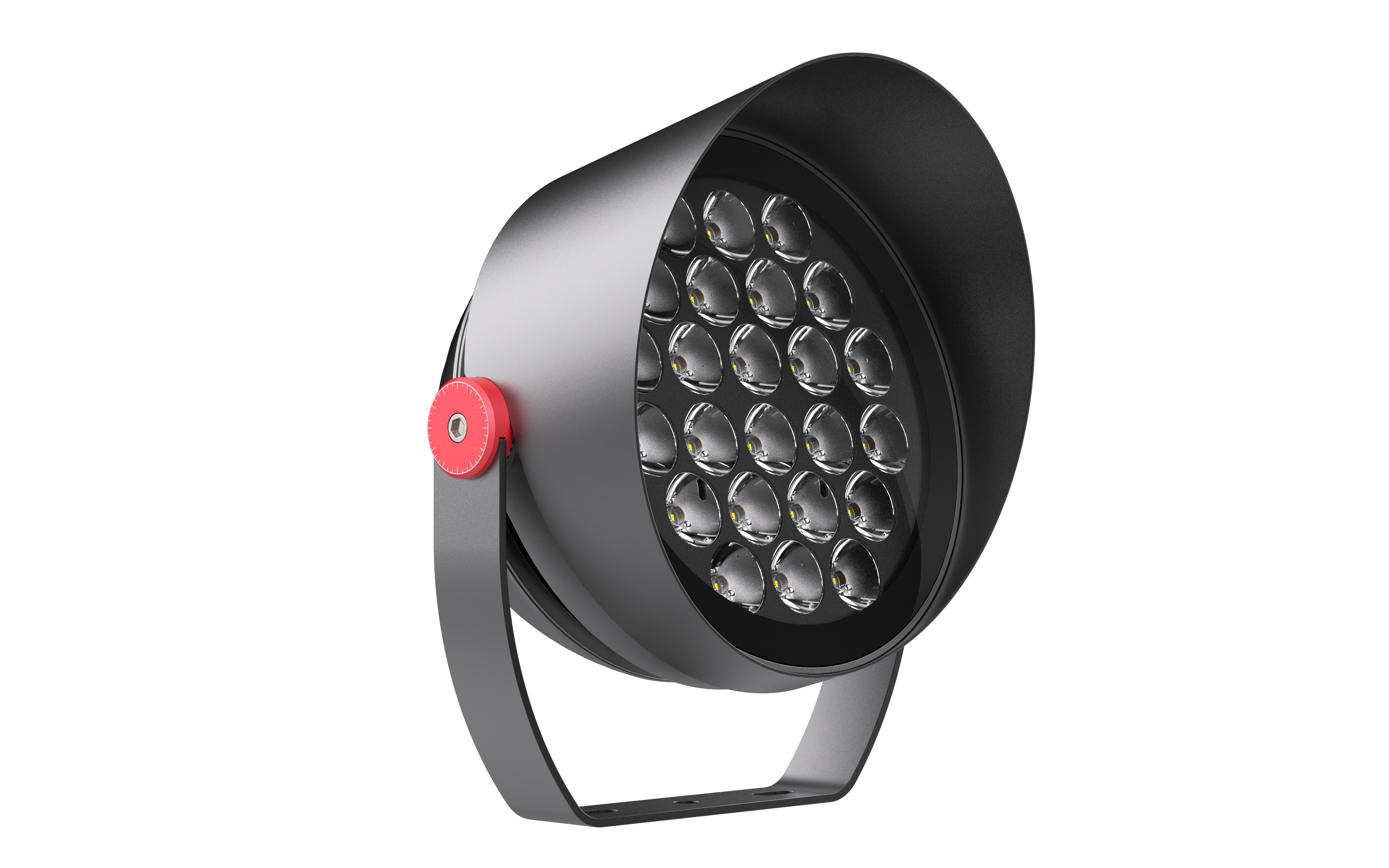

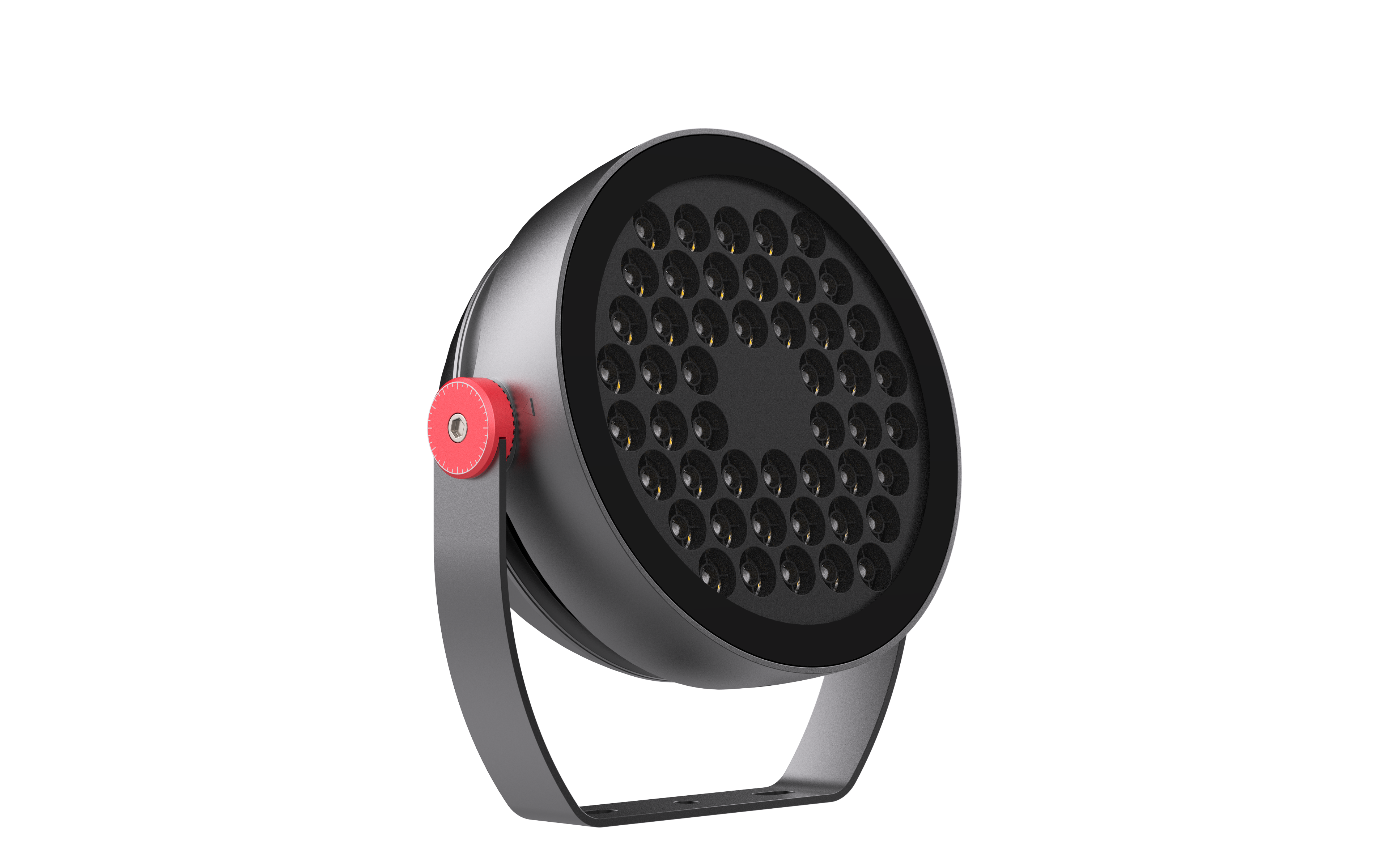

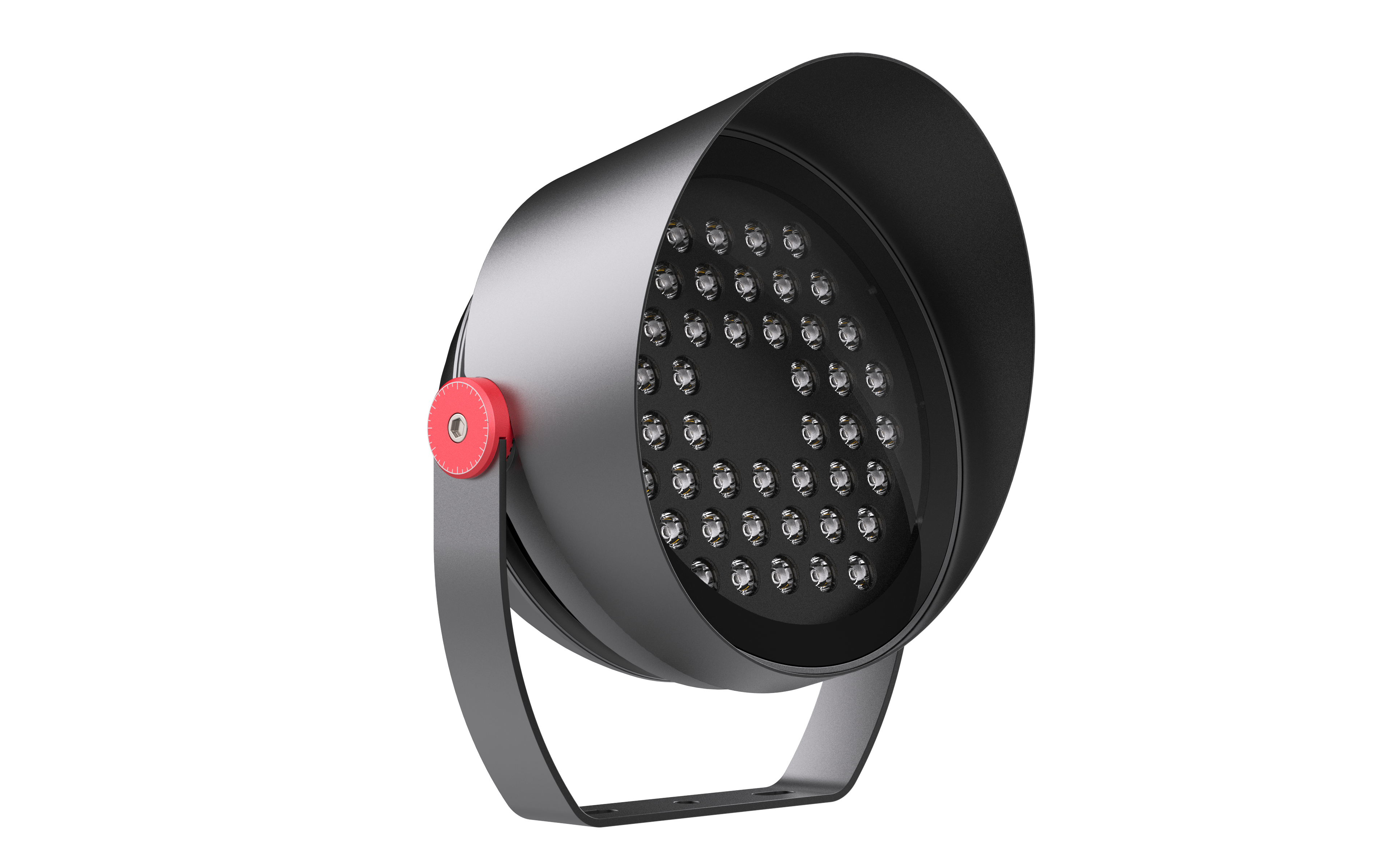

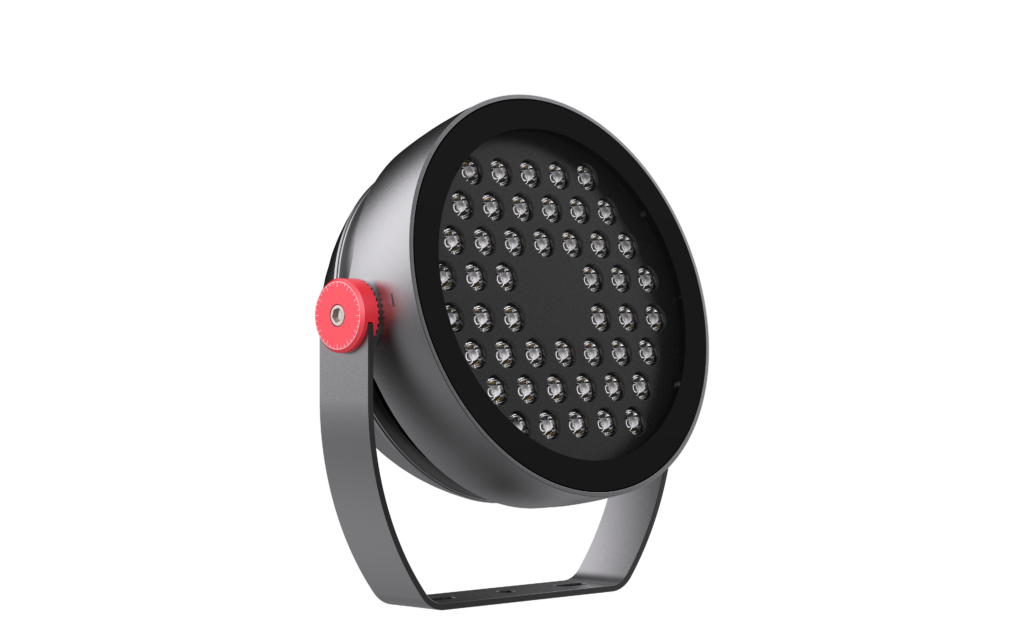

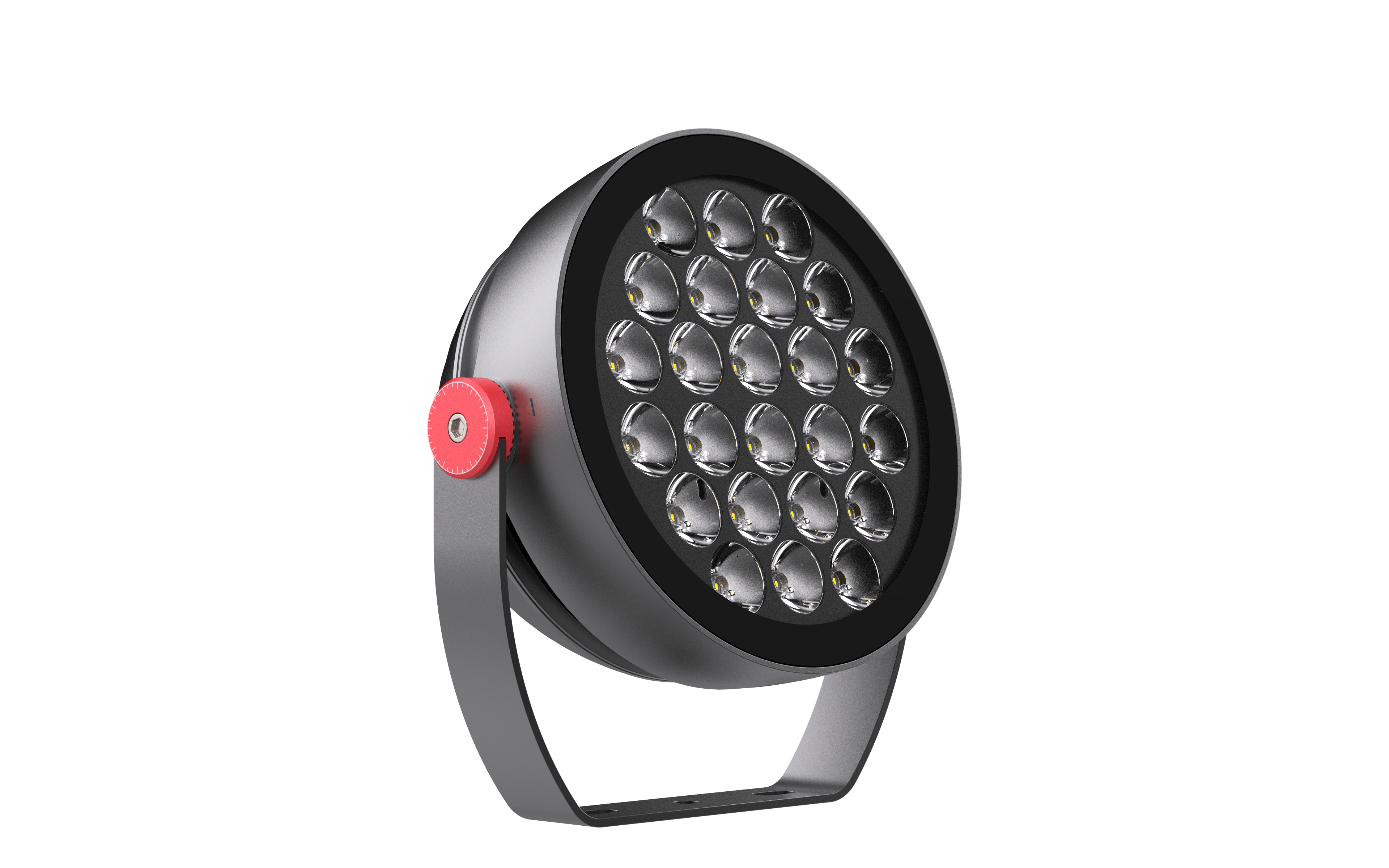

RFL260R
60W,64W,100W,120W
220VAC
4°, 8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW, RGBW ( 4 in 1 )
DMX, DALI

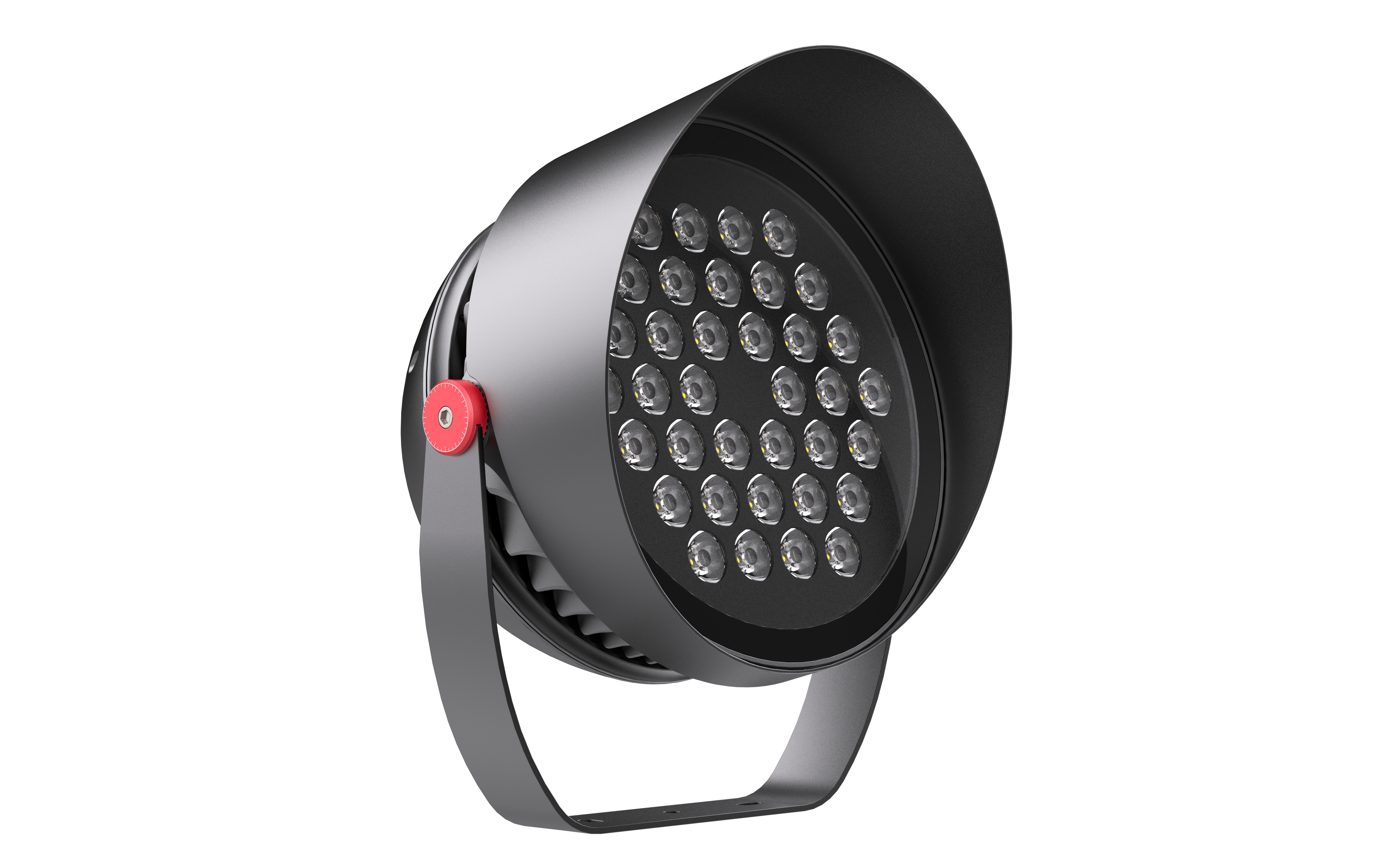

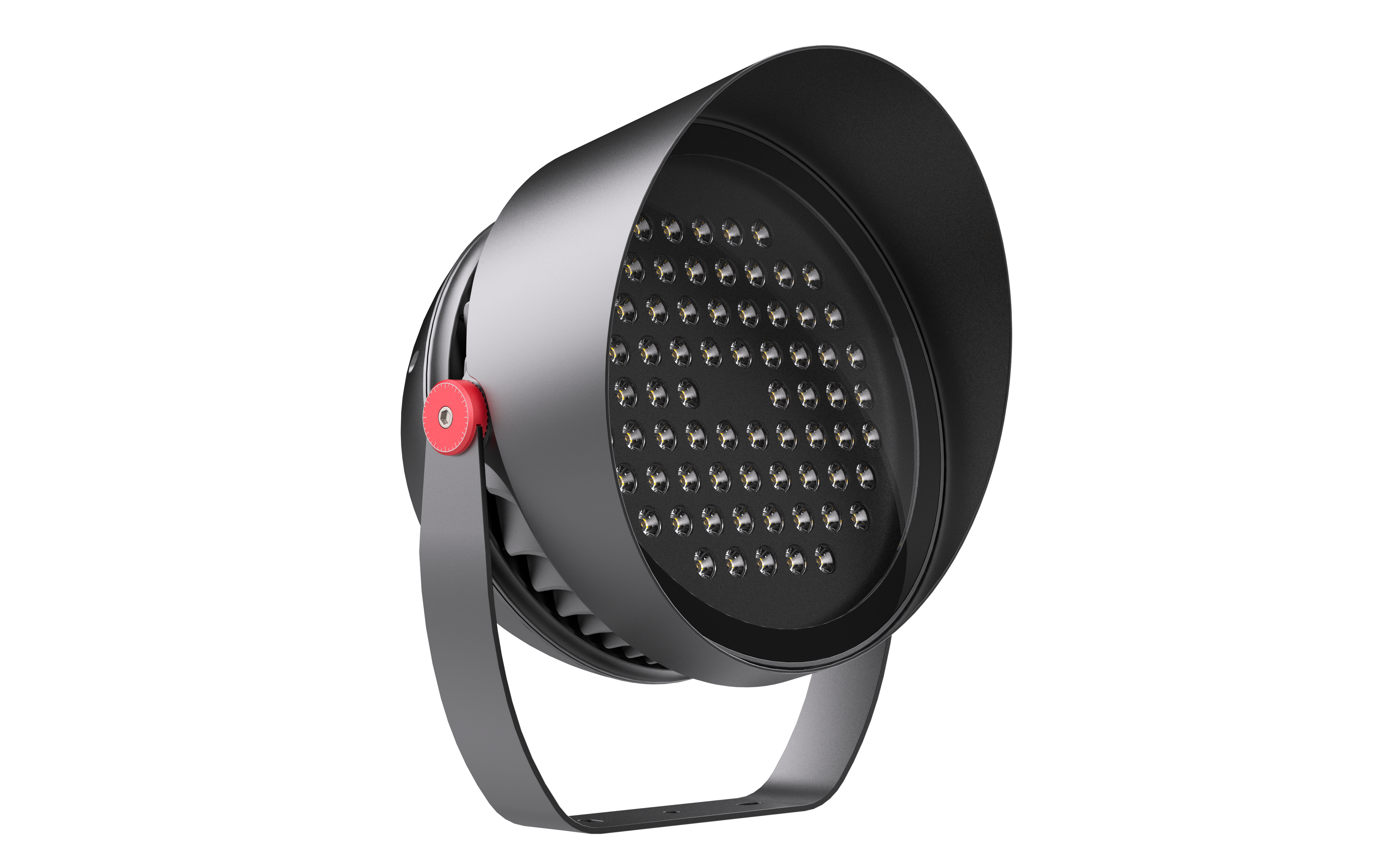

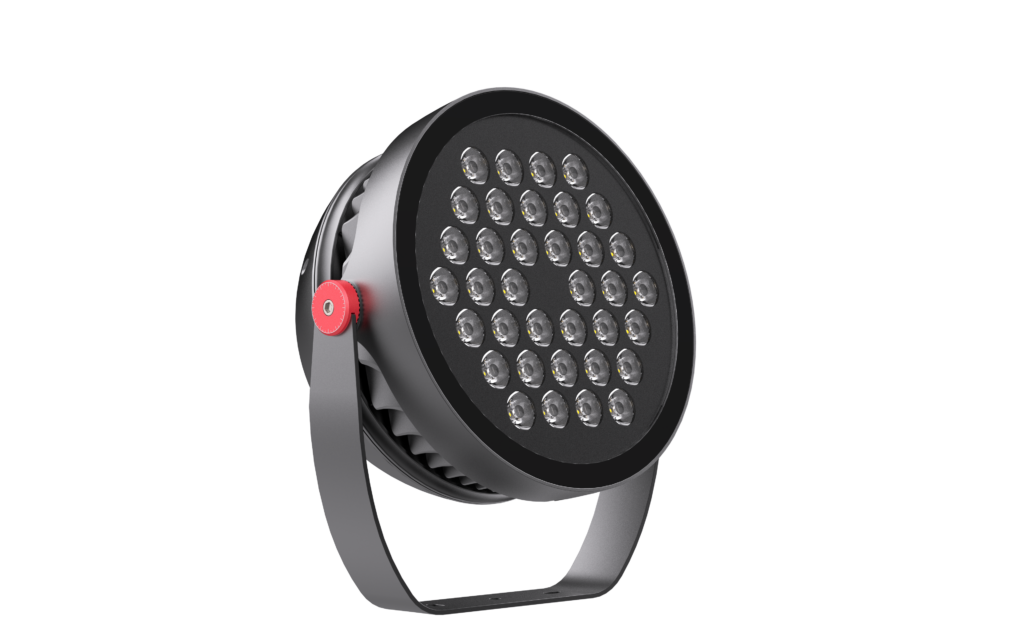

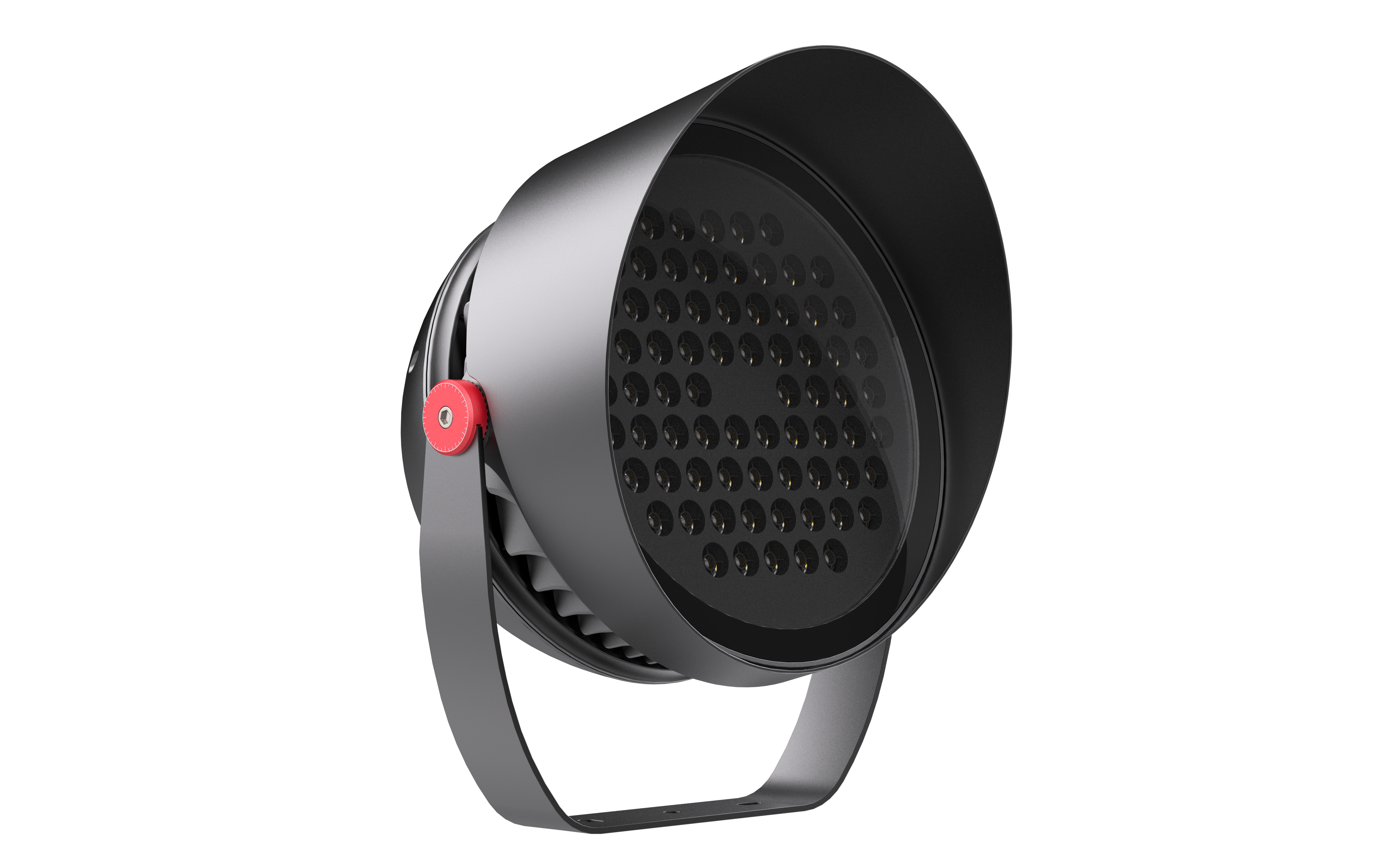

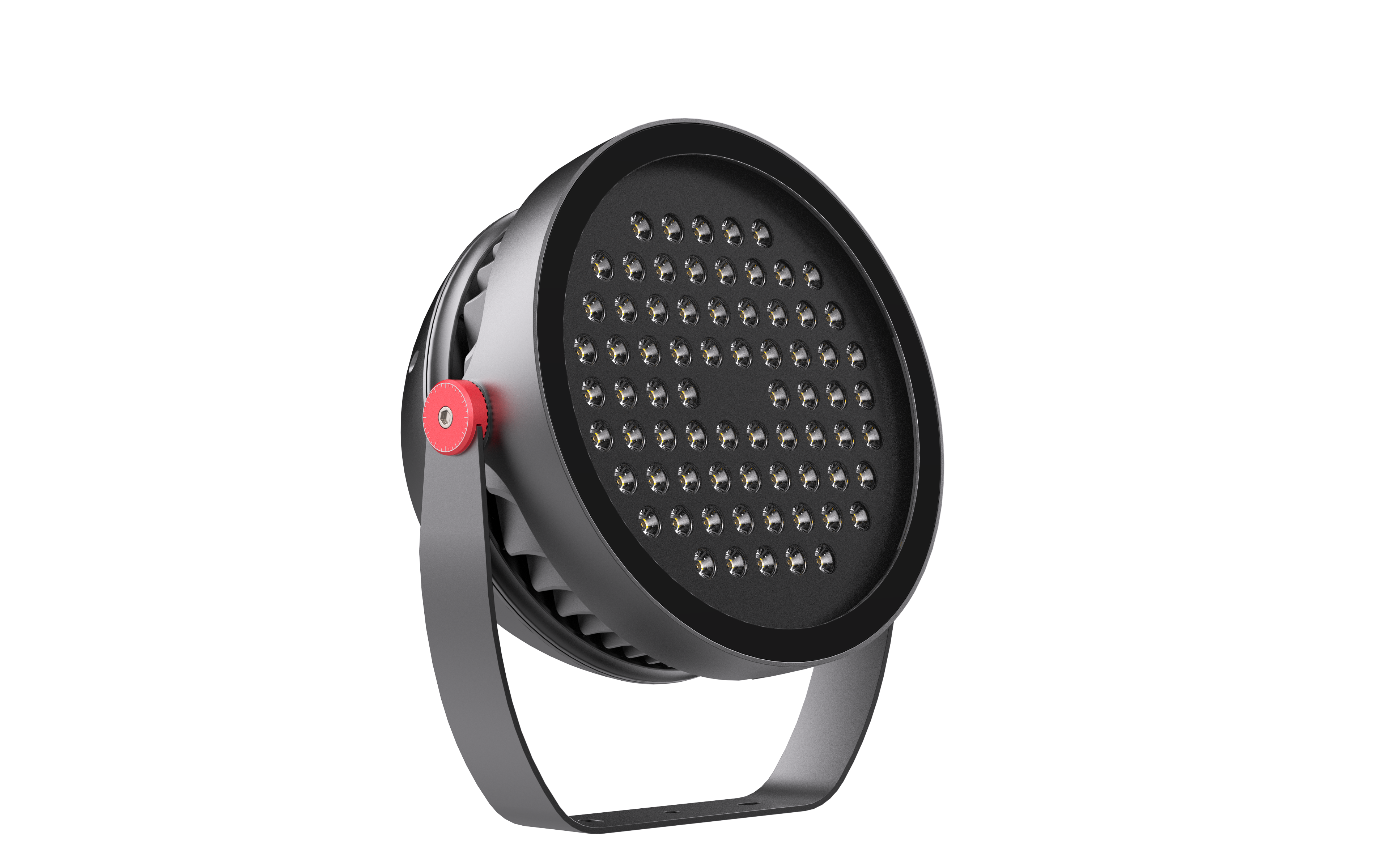

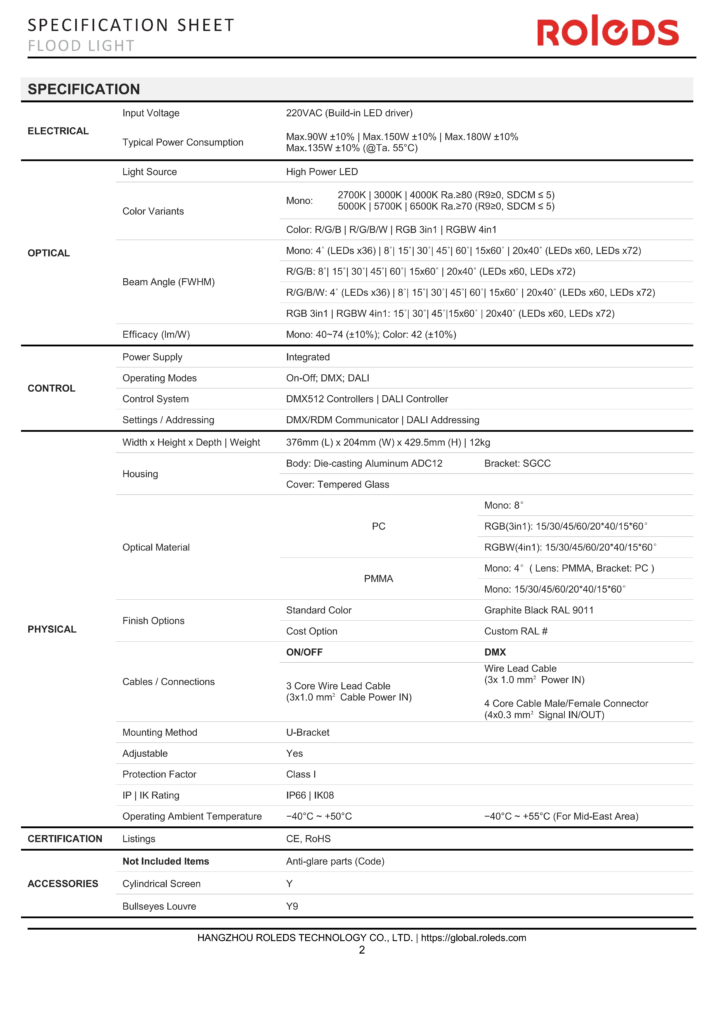

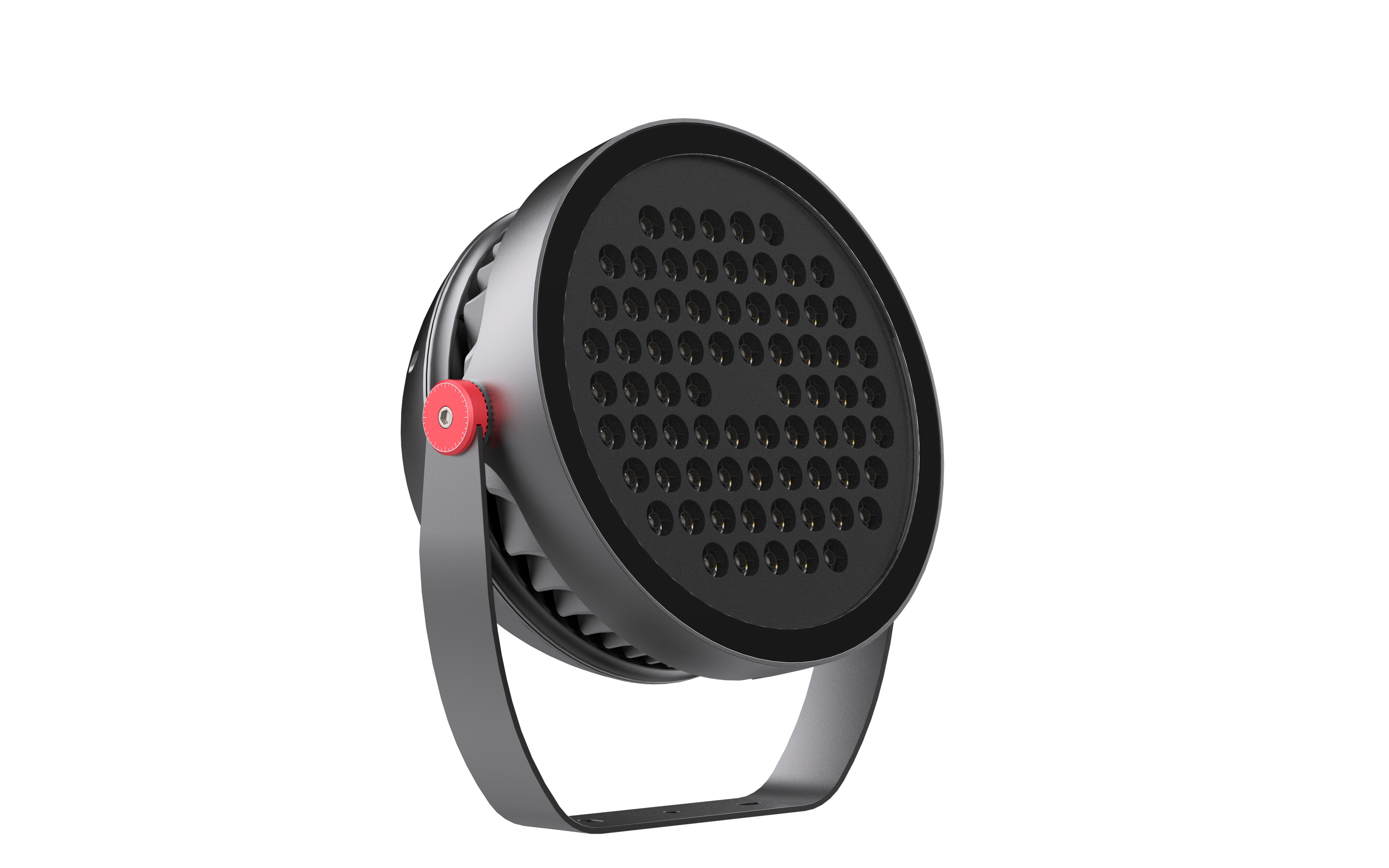

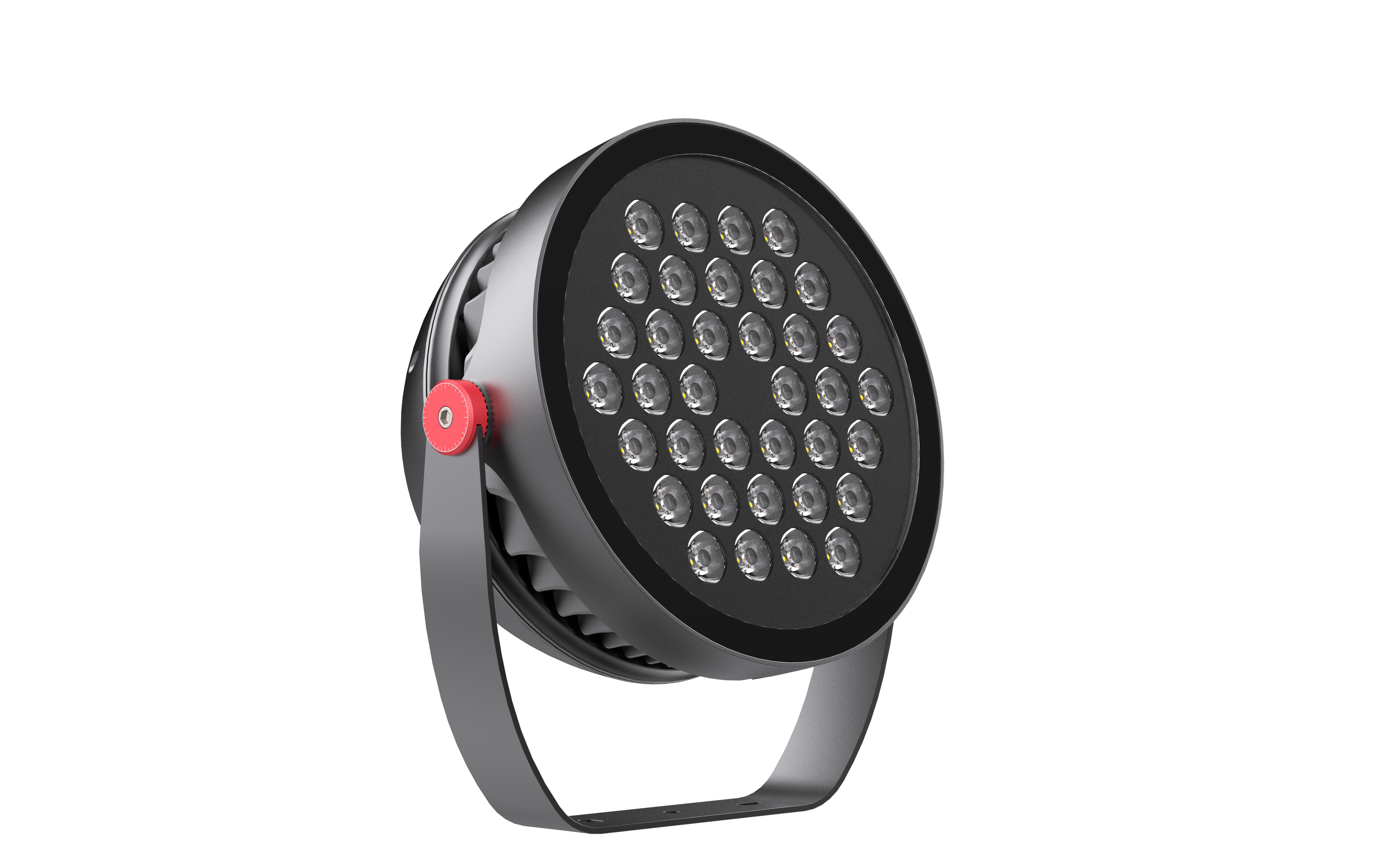

RFL350R
90W,150W,180W
220VAC
4°, 8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW, RGBW ( 4 in 1 )
DMX, DALI
