GOBO Light

Our GOBO light series offers a complete projector lineup with power ratings from 35W to 350W, adaptable to various throw distances and project scales — from accent lighting for small venues to large-scale architectural façade projection, fulfilling diverse application requirements.

Product Description

*High-Definition Optics & Tool-Free GOBO Replacement
Equipped with high-precision smart lenses, the projectors deliver sharp, clear imaging with straightforward focusing adjustment. An innovative window-based design enables quick GOBO switching without tools, and supports fully customizable patterns to fully match unique creative demands.

*Flexible Optical Configurations & Diverse Effect Options
Available in beam angles of 15°, 30° and 45°, with color temperature options of 7000K and 8500K, the series adapts to different projection sizes, coverage areas and atmosphere design requirements. 3D effect models are also available to create layered, dimensional visual effects.

*Intelligent Control & Synchronized Scene Programming
Select models feature DMX control capability, enabling dynamic lighting programming, multi-device synchronized scene effects and dimming control for immersive and interactive lighting experiences.

*Robust Housing & Global Voltage Compatibility
Crafted with one-piece aluminum housing, the projectors deliver excellent structural durability and heat dissipation efficiency, ensuring long-term reliable operation. Wide input voltage ranges (100V–240V AC / 110V–220V AC) accommodate power standards worldwide, making the series suitable for both indoor and outdoor projects.

Model Selection

Power Consumption (W)
Power Consumption (W) - slider
1 — 350
Beam Angle(FWHM)
CCT
Luminous flux (lm)
Luminous flux (lm) - slider
100 — 96570
Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable
>

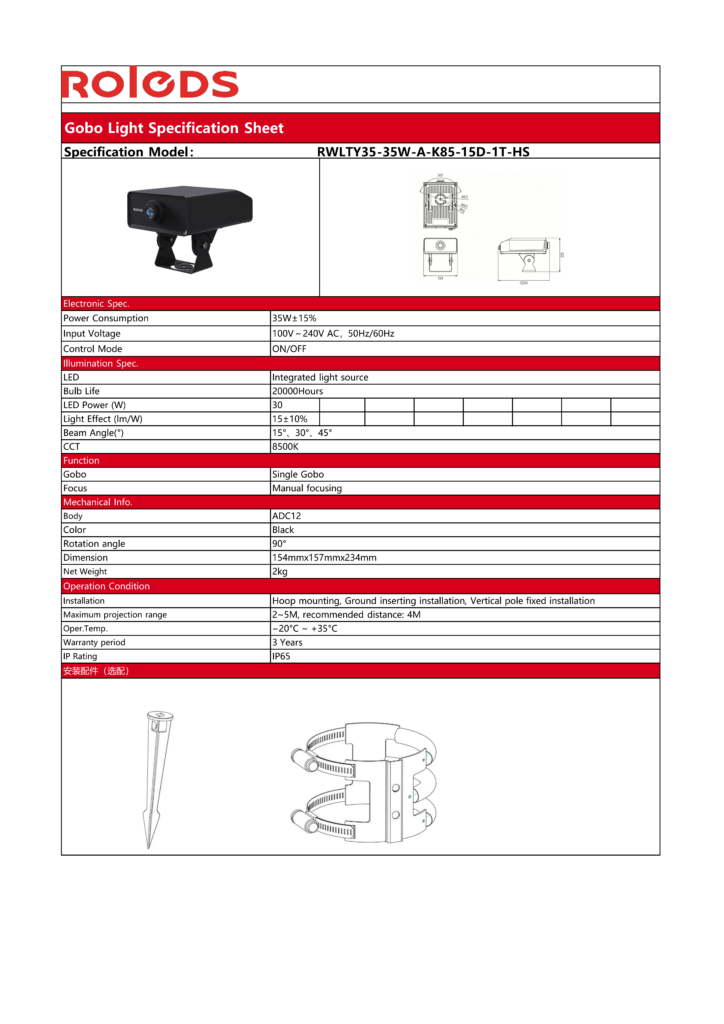

RWLTY35

35W
100V-240V AC, 50Hz/60Hz
15°, 30°, 45°
8500K
none

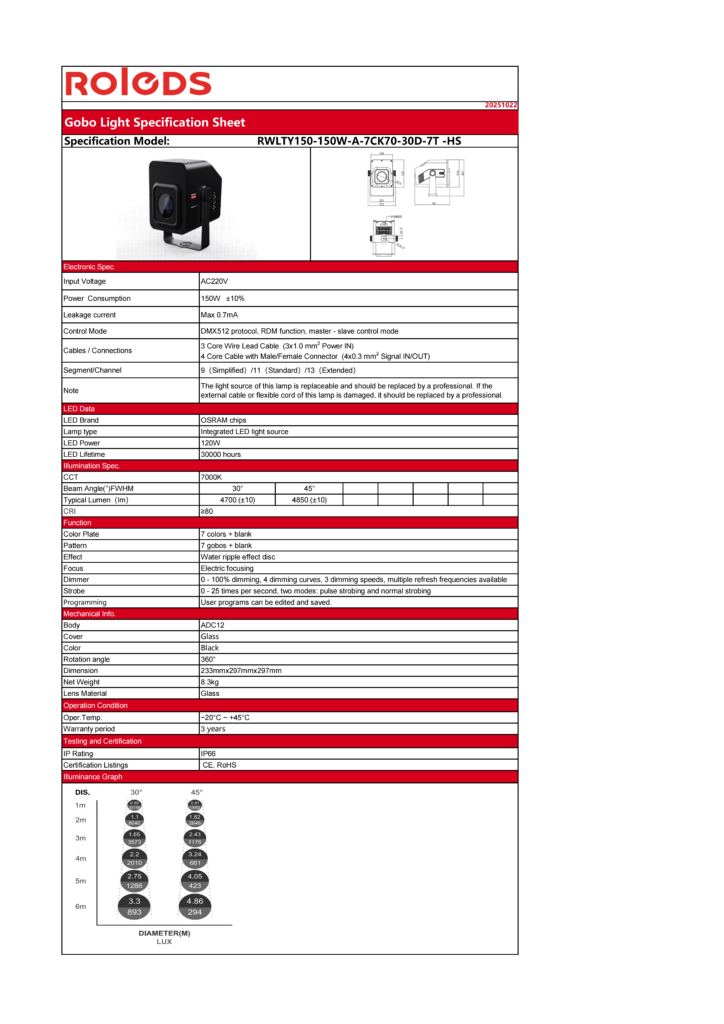

RWLTY150

150W
220VAC
30°, 45°
7000K
DMX

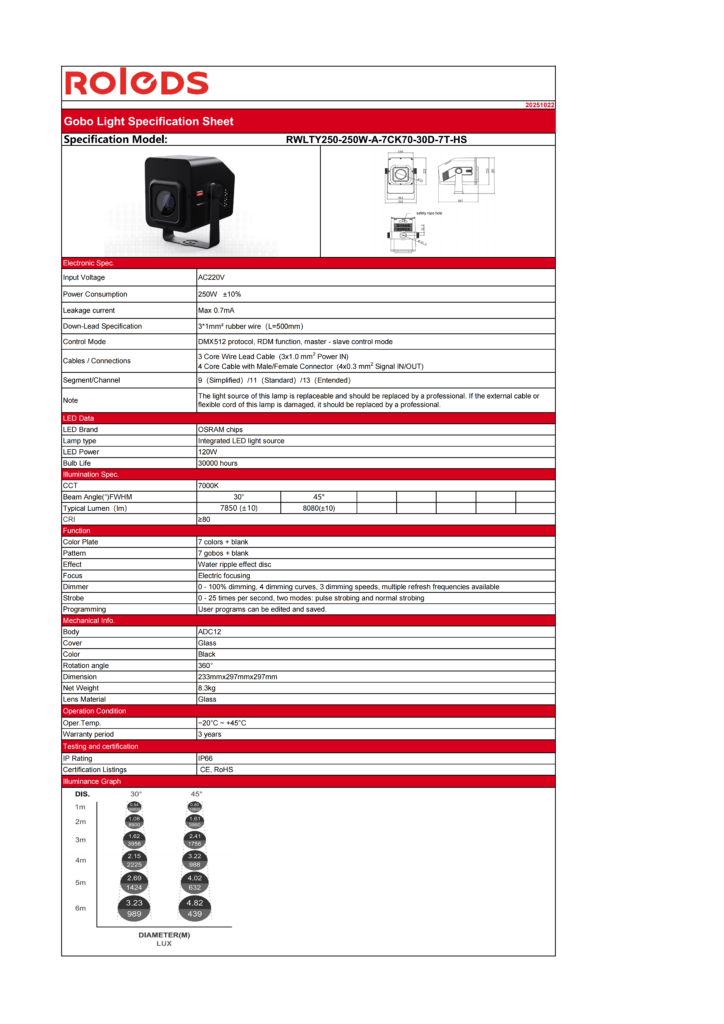

RWLTY250

250W
220VAC
30°, 45°
7000K
DMX

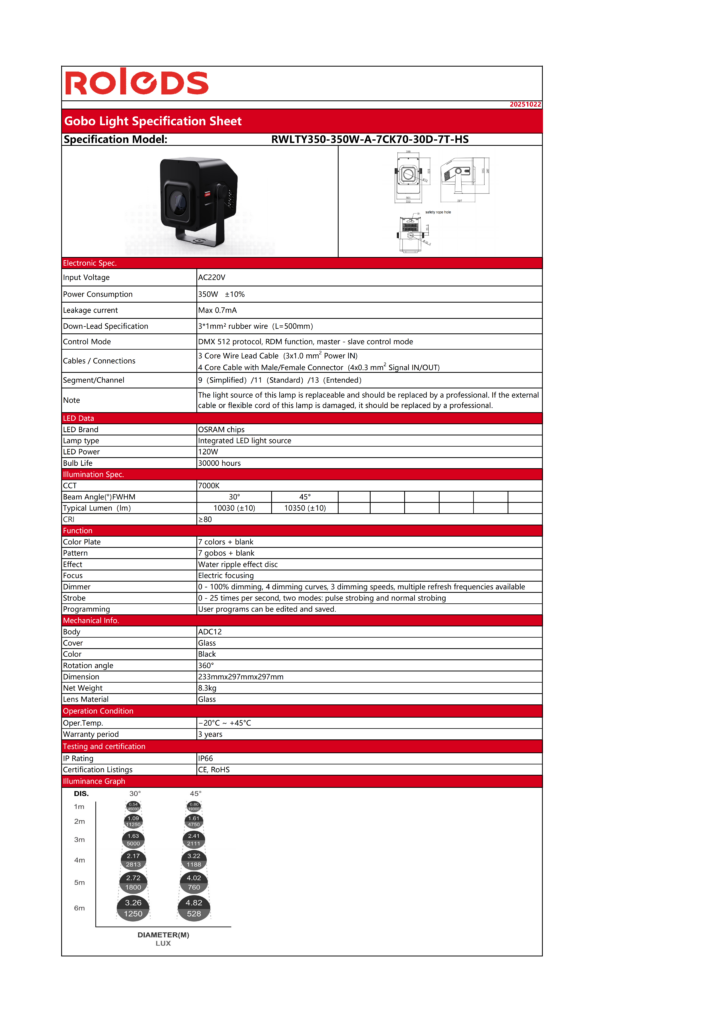

RWLTY350

350W
220VAC
30°, 45°
7000K
DMX

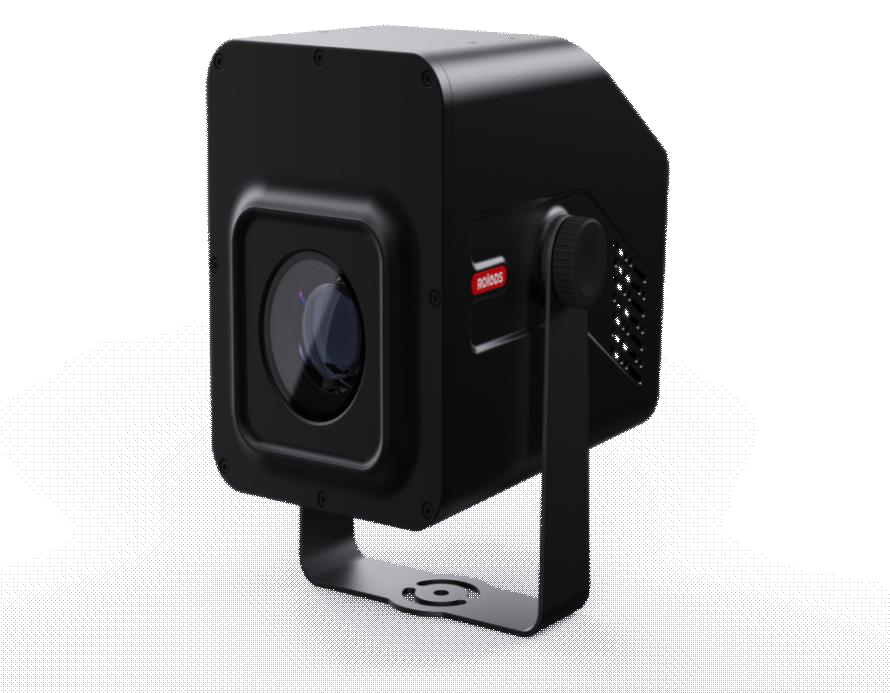

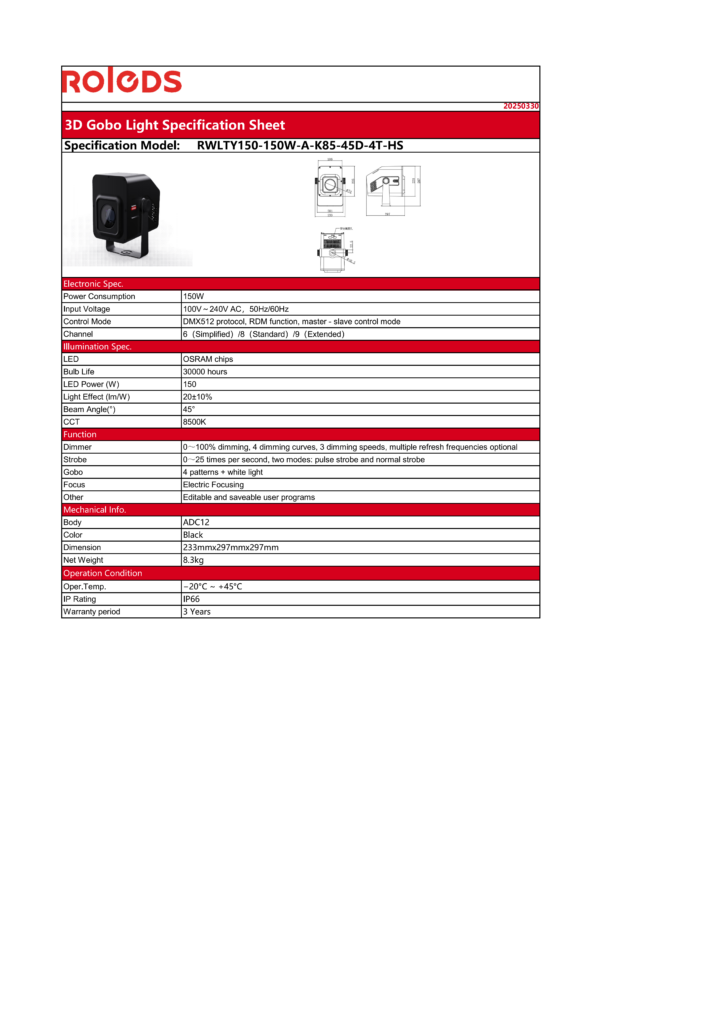

RWLTY150-3D

150W
100V-240V AC, 50Hz/60Hz
45°
8500K
DMX

RWLTY250-3D

250W
100V-240V AC, 50Hz/60Hz
45°
8500K
DMX

RWLPY150

150W
110V-220V AC, 50Hz/60Hz
30°, 45°
8500K
DMX

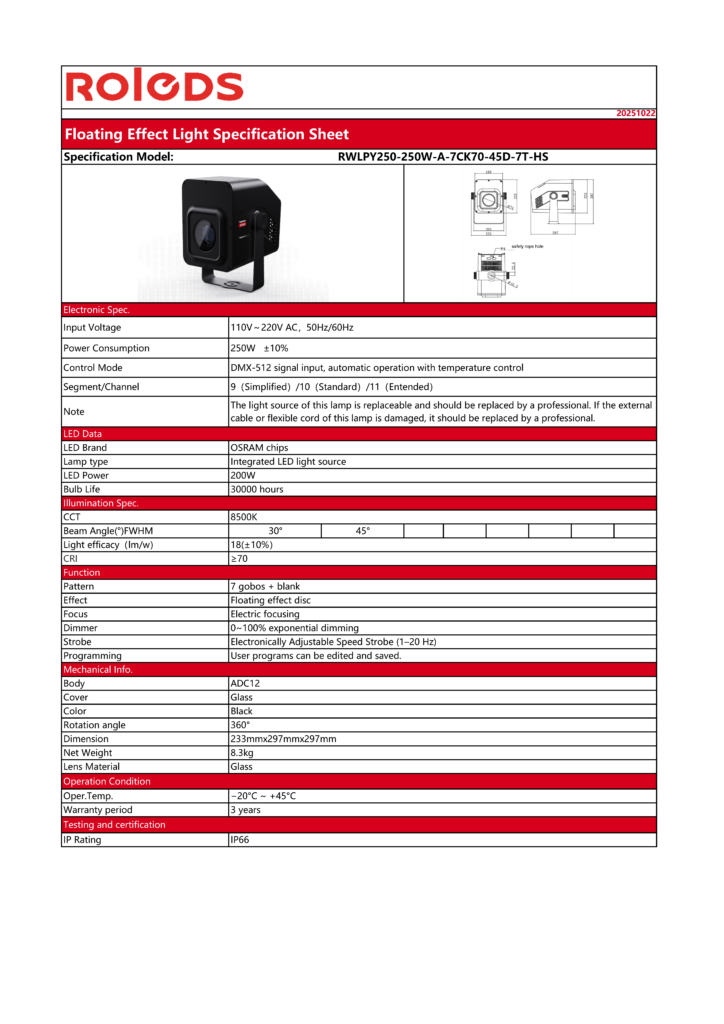

RWLPY250

250W
110V-220V AC, 50Hz/60Hz
30°, 45°
8500K
DMX

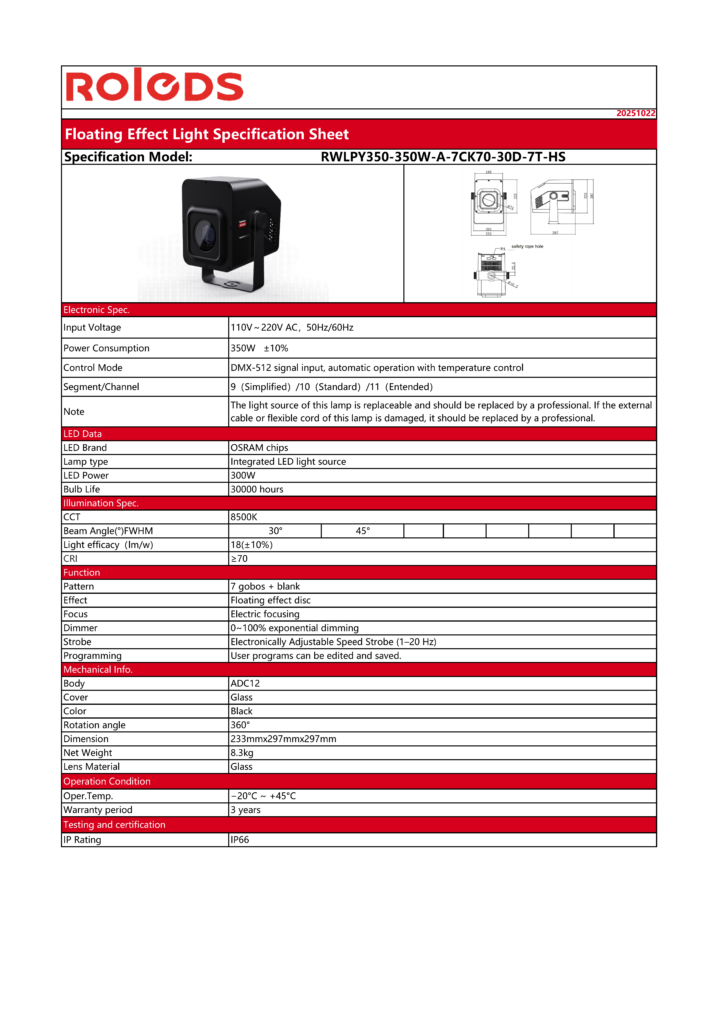

RWLPY350

350W
110V-220V AC, 50Hz/60Hz
30°, 45°
8500K
DMX
