In-ground Light Range
ROLEDS floodlights are primarily used for stadiums, squares, airport aprons, ports, and industrial lighting.
Product Description
ROLEDS floodlights feature a professional optical design for excellent light efficiency and eco-friendly low-carbon performance. They boast high protection ratings to ensure product safety and support 0-10V dimming control for precise brightness adjustment and energy-saving illumination. Some models feature a streamlined design that minimizes water and dust accumulation.
Model Selection
Power Consumption
1 — 100
Beam Angle(FWHM)
CCT
Luminous flux
1 — 240
Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable
Controllable
>

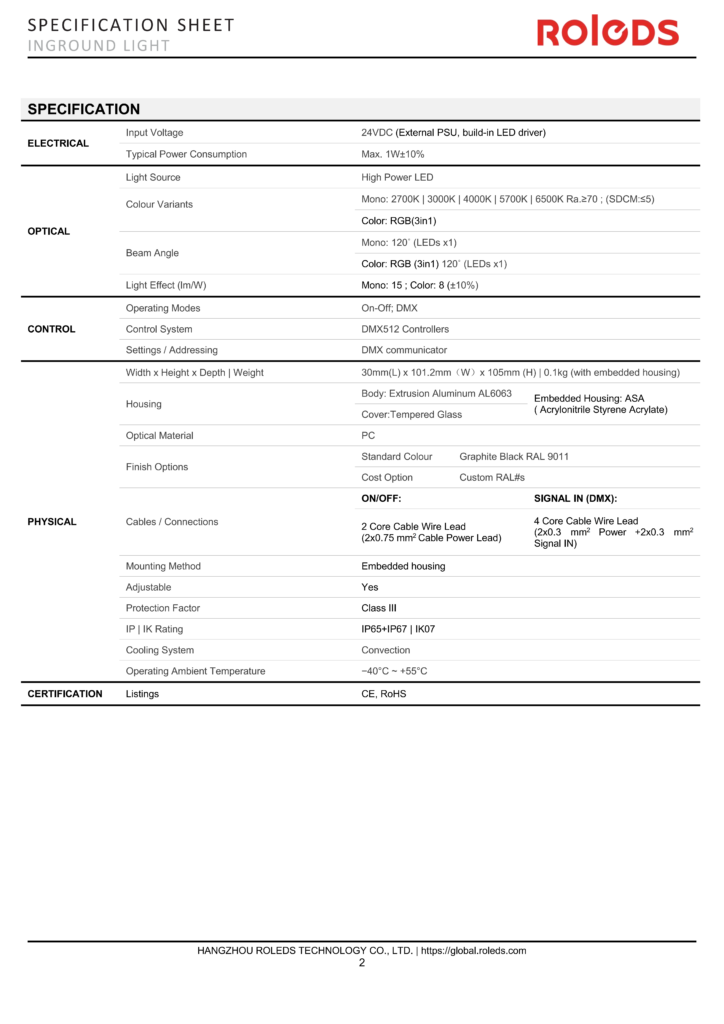

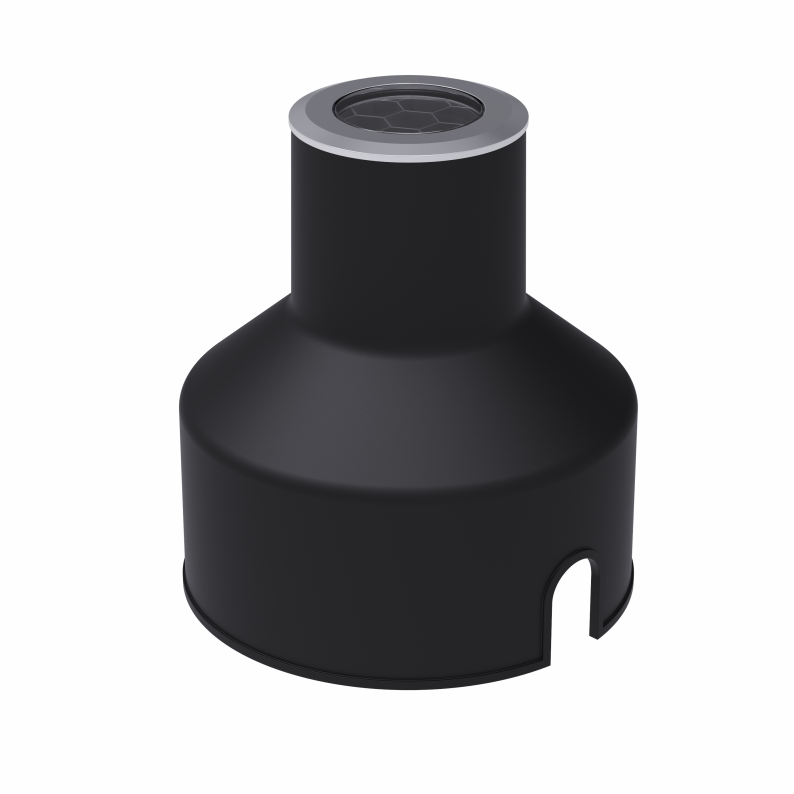

RGL28
1W
24VDC
120°
2700K, 3000K, 4000K, 5000K, 5700K
DMX

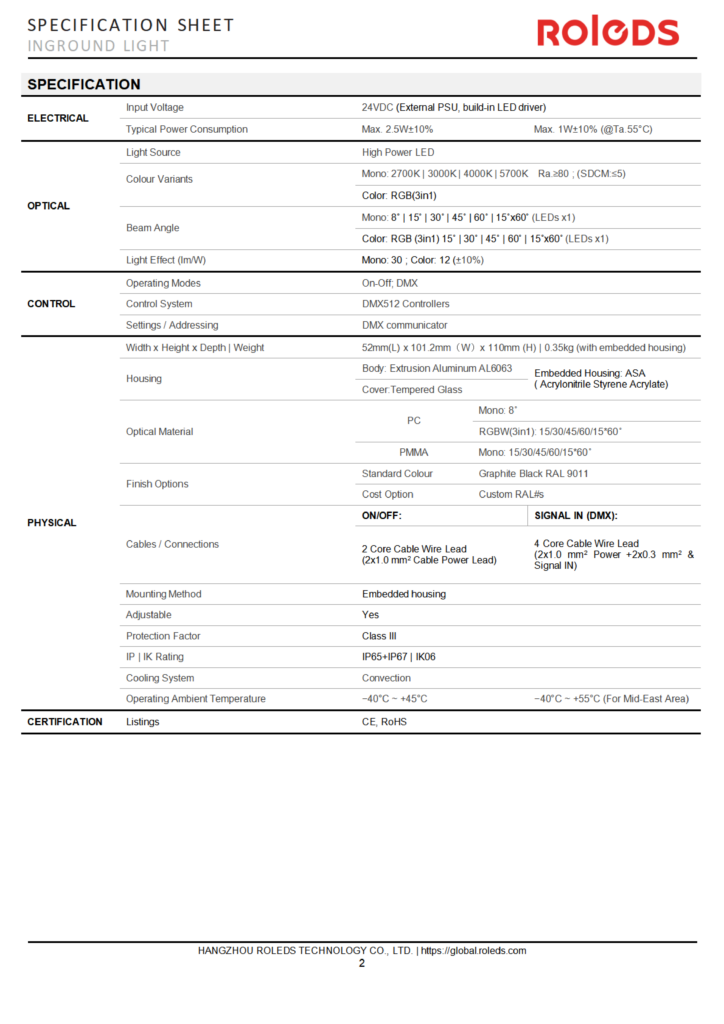

RGL48
2.5W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

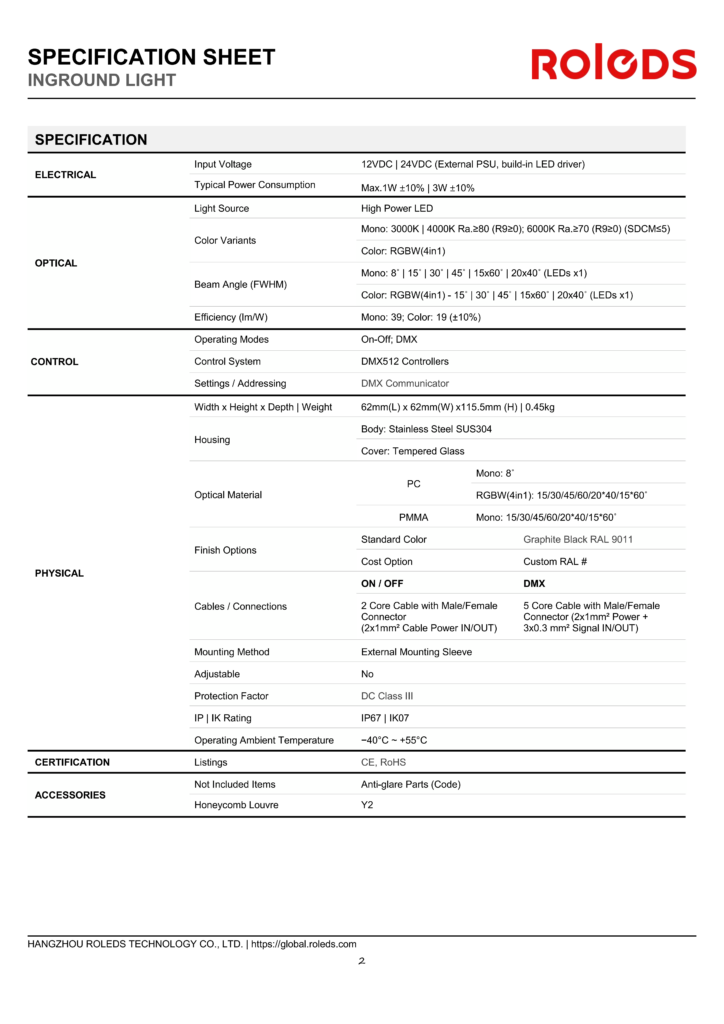

RGL65
1W,3W
12VDC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 4000K, 6500K, RGBW ( 4 in 1 )
DMX

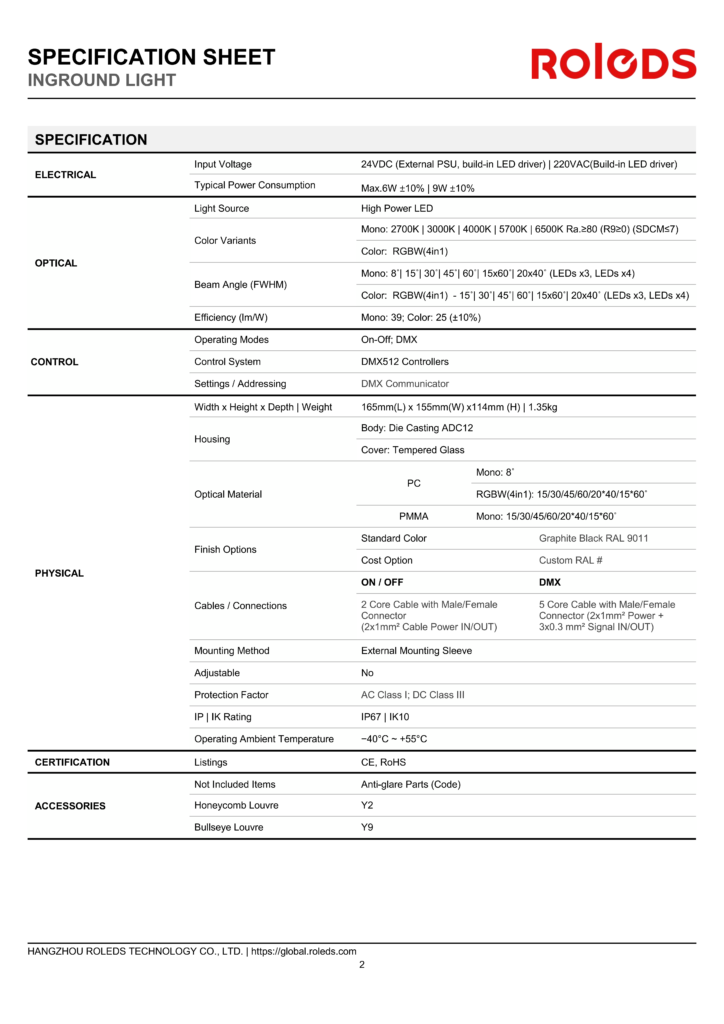

RGL155
6W,9W
220VAC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5700K, 6500K
DMX

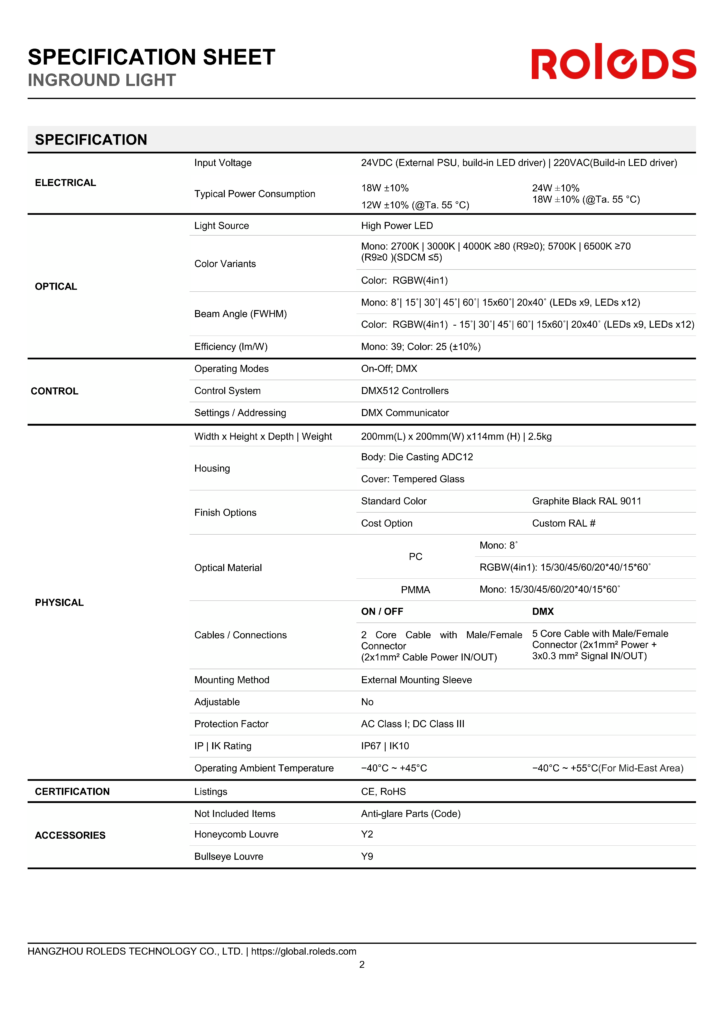

RGL195
18W
220VAC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

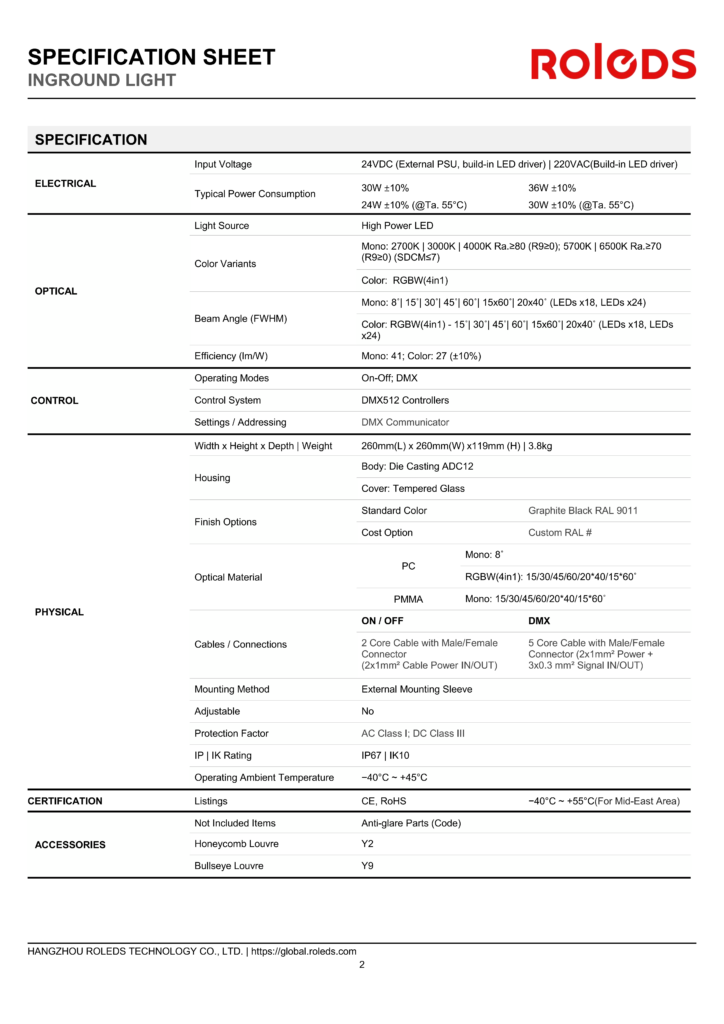

RGL265
30W,36W
220VAC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGBW ( 4 in 1 )
DMX

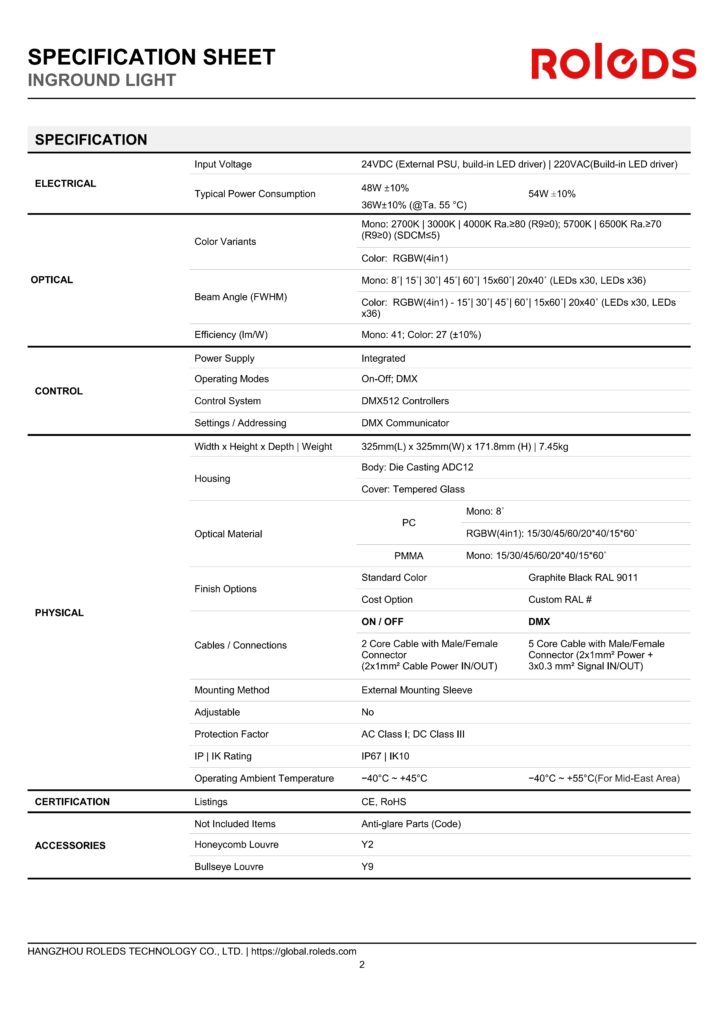

RGL325
48W,54W
220VAC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

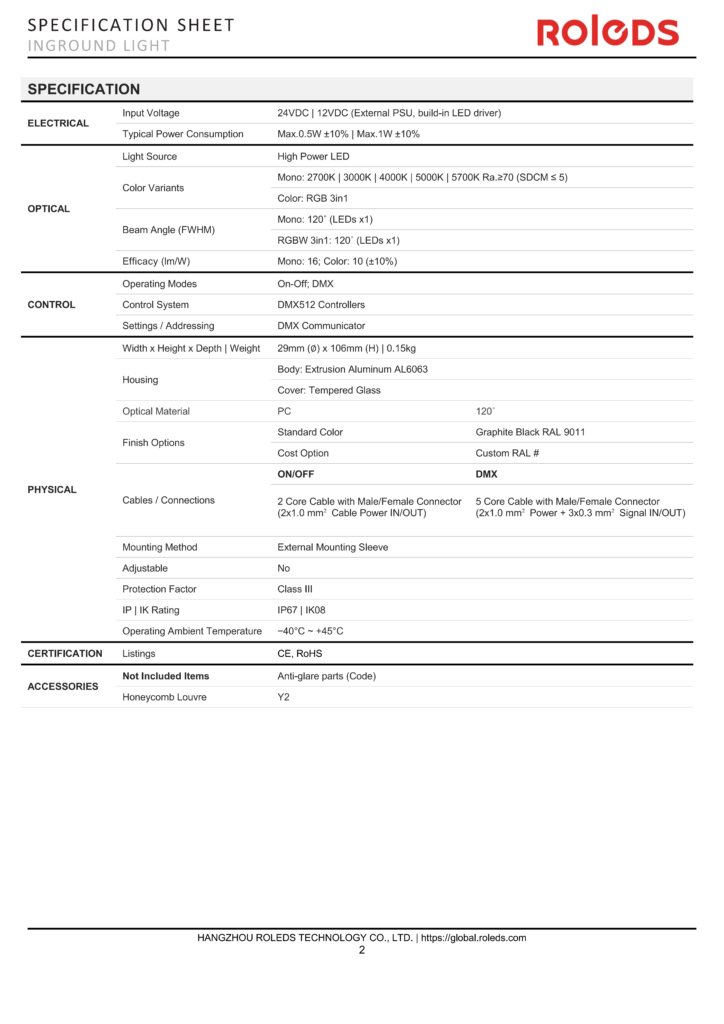

RGL28F
0.5W,1W
12VDC, 24VDC
120°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

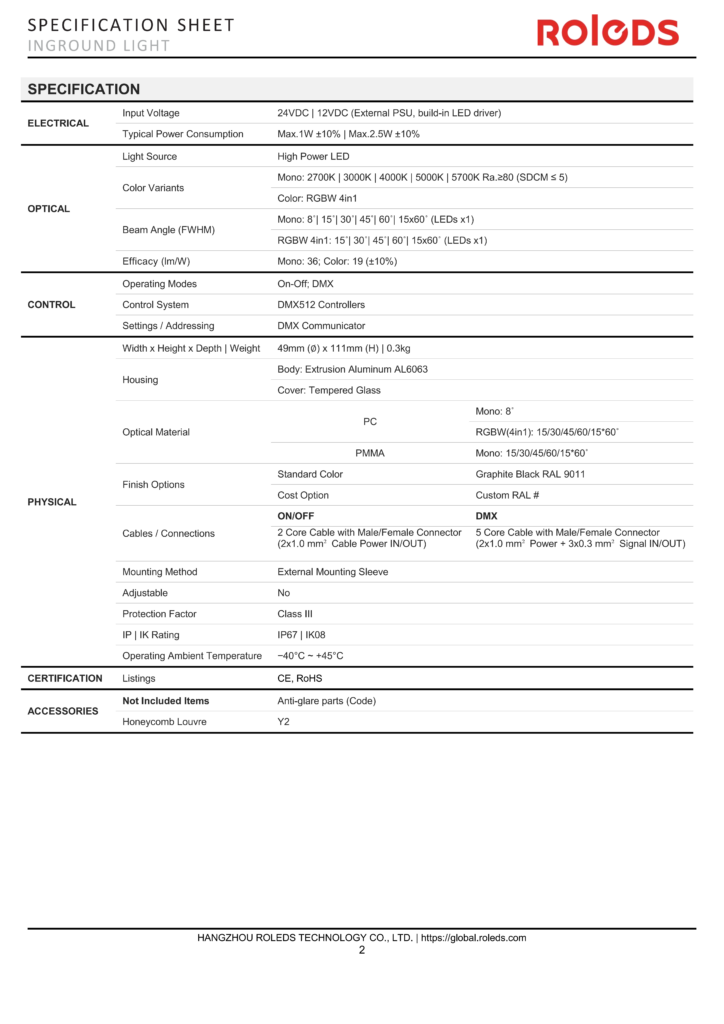

RGL48F
1W,2.5W
12VDC, 24VDC
8°, 15°, 30°, 45°, 60°, 15x60°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX

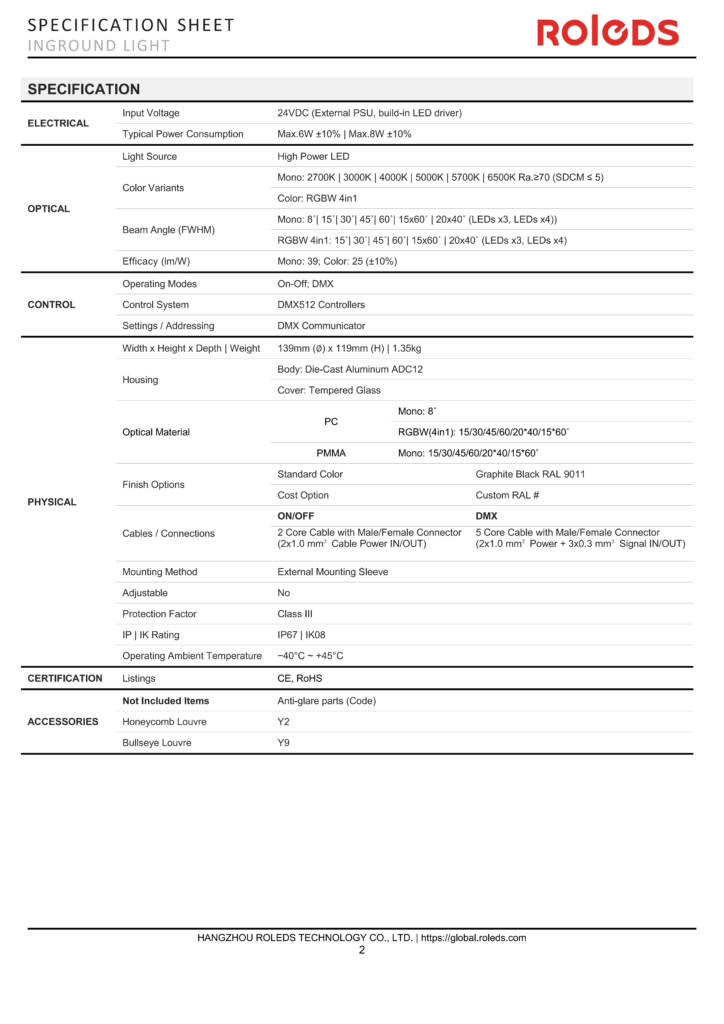

RGL155F
6W,8W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGBW ( 4 in 1 )
DMX
