HighBay

INDUSTRIAL LIGHTING Slim by Design. Smart by Nature. Versatile lighting for factories, warehouses andhigh bays — with PIR sensing and full control system integration.

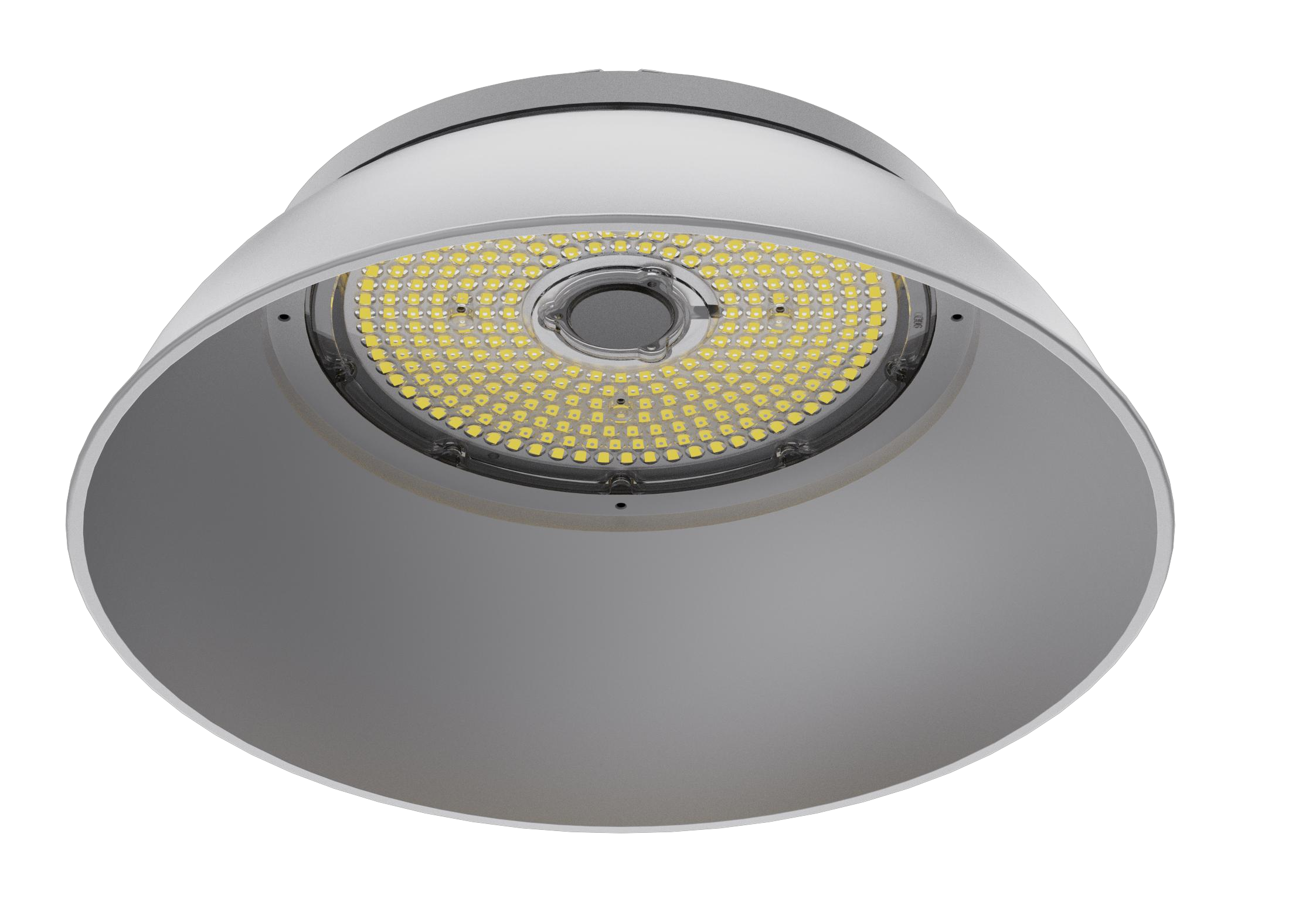

Product Description

Built for factories, warehouses and workshops that never stop, our LED high bay series delivers 15,000–36,000 lm from a compact 100–200 W platform, with an efficacy of up to 180 lm/W. The result is a luminaire that replaces traditional metal halide fittings while cutting energy consumption by up to [60%] — and keeps working long after conventional lamps have failed. Multiple mounting options make it equally at home on a suspended ceiling, a structural beam, or a pendant stem.

*High Efficacy, Maximum Light per Watt
Available in 150 lm/W and 180 lm/W versions, the series converts nearly every watt into usable light. At 200 W it reaches up to 36,000 lm, allowing fewer fixtures to cover the same floor area — lower capital cost, lower energy bill.

*100–200 W Coverage for Every Ceiling Height
A power range of 100 W / 150 W / 200 W covers mounting heights from [6 m to 15 m], from assembly workshops and packing areas to high-bay logistics warehouses and distribution centres.

*Flexible Mounting — Pendant, Hook or Bracket
Designed to adapt to real site conditions:
Pendant / Stem mount — rigid, stable suspension from ceiling structure
Hook / Eye-bolt mount — fast, tool-light installation on existing hooks or chains
Chain mount — adjustable drop height for sloped or irregular ceilings
Surface / Bracket mount — direct fixing to beams, ceilings or [pole mount] .

*Industrial-Grade Thermal Management
A die-cast aluminium housing with a fin-type heat sink structure dissipates heat efficiently, protecting the LED chips and driver and supporting a rated life of [L80 > 50,000 hours / 5-year warranty].

*Built to Survive the Factory Floor
Rated IP65 / IK08 [confirm rating] for protection against dust, moisture, vibration and impact — suitable for demanding environments including workshops, foundries, warehouses and cold storage.

Model Selection

Power Consumption
Power Consumption - slider
1100
Beam Angle(FWHM)
CCT
Luminous flux
Luminous flux - slider
1240

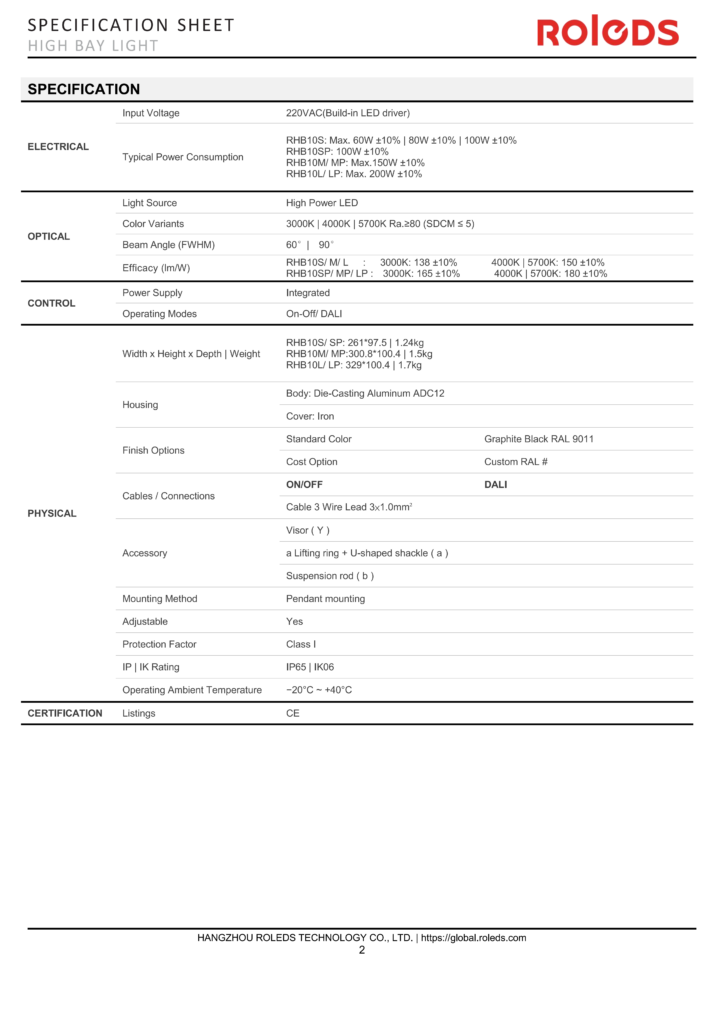

Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable
Controllable
>

RHB10

60W,80W,100W,150W,200W
220VAC
60°, 90°
3000K, 4000K, 5700K
DALI

Reference
