Floodlights
ROLEDS floodlights are primarily used for stadiums, squares, airport aprons, ports, and industrial lighting.
Product Description
ROLEDS floodlights feature a professional optical design for excellent light efficiency and eco-friendly low-carbon performance. They boast high protection ratings to ensure product safety and support 0-10V dimming control for precise brightness adjustment and energy-saving illumination. Some models feature a streamlined design that minimizes water and dust accumulation.
Model Selection
Power Consumption
1 — 100
Beam Angle(FWHM)
CCT
Luminous flux
1 — 240
Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable
Controllable
>

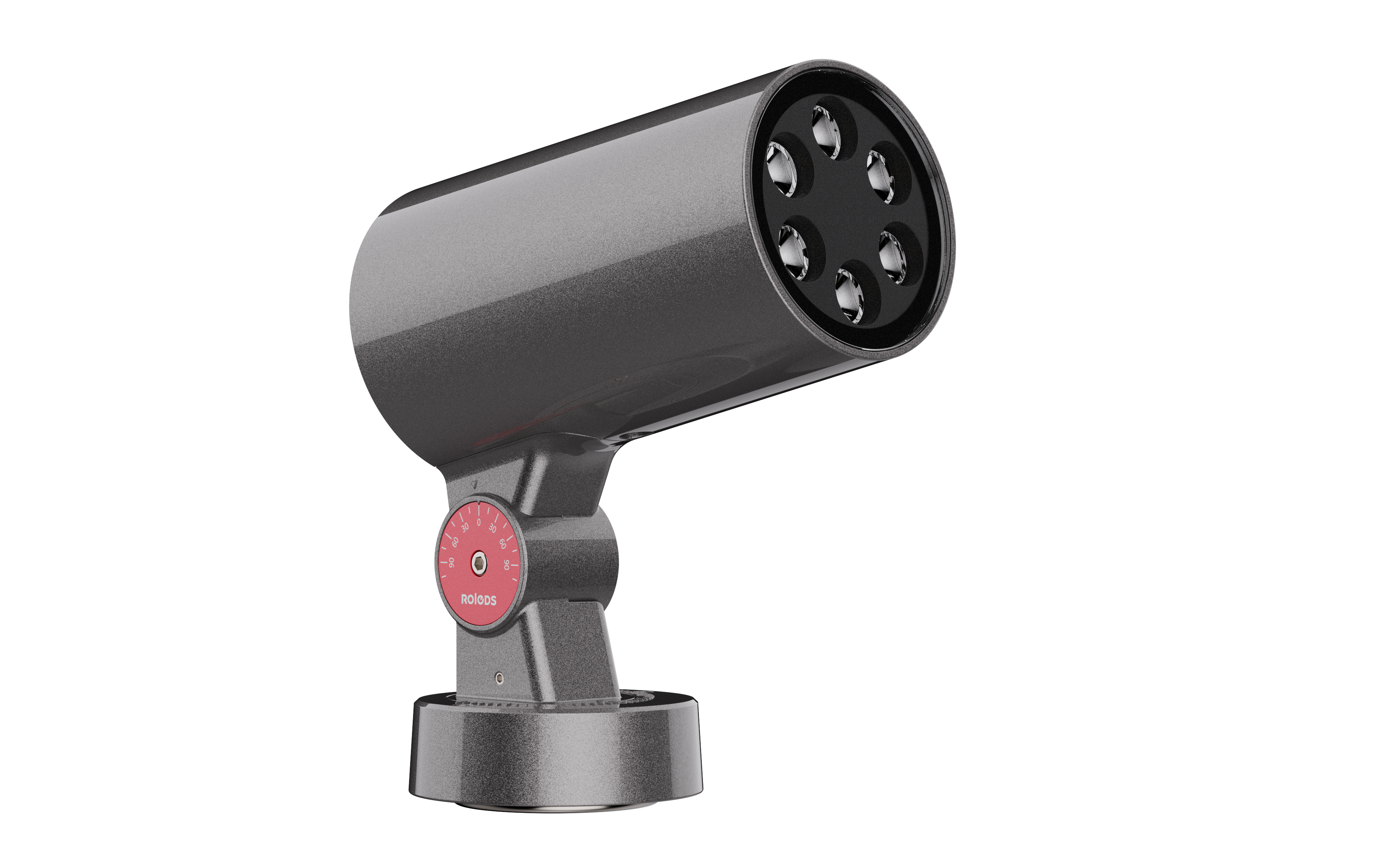

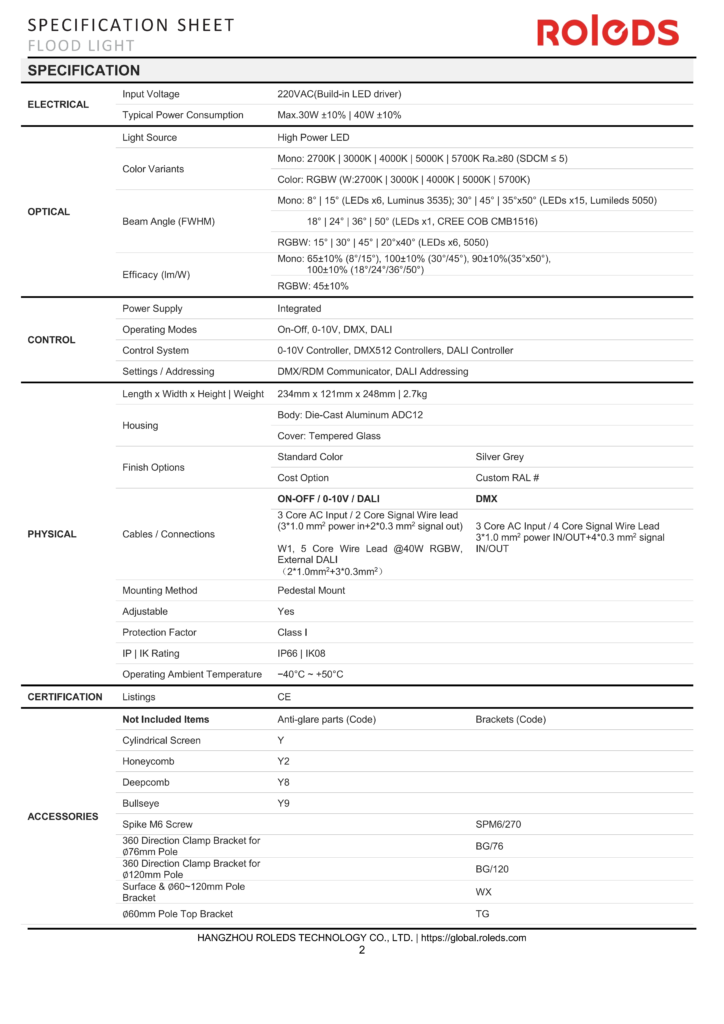

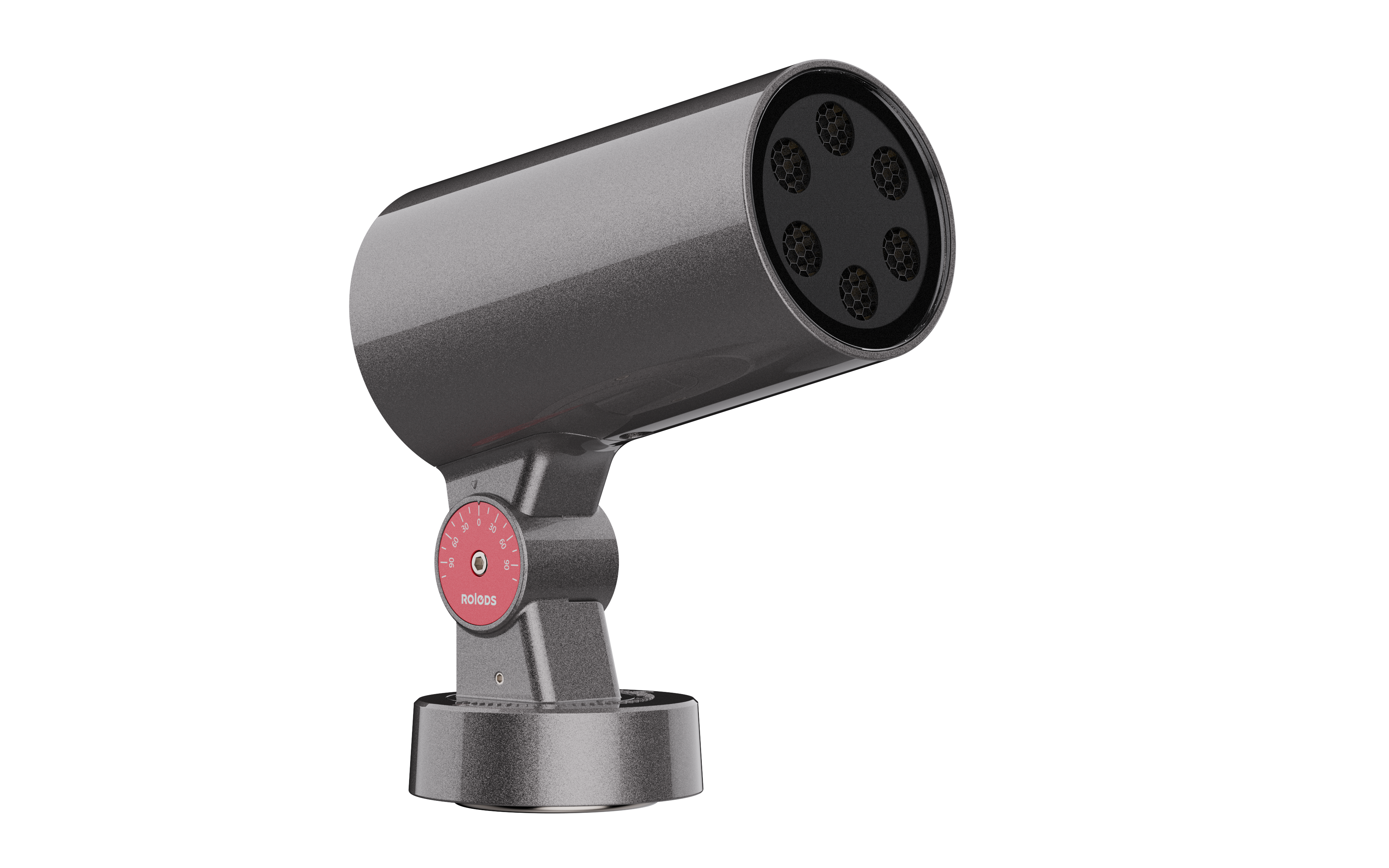

RFL110R
30W,40W
220VAC
8°, 15°, 18°, 24°, 30°, 36°, 45°, 50°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI

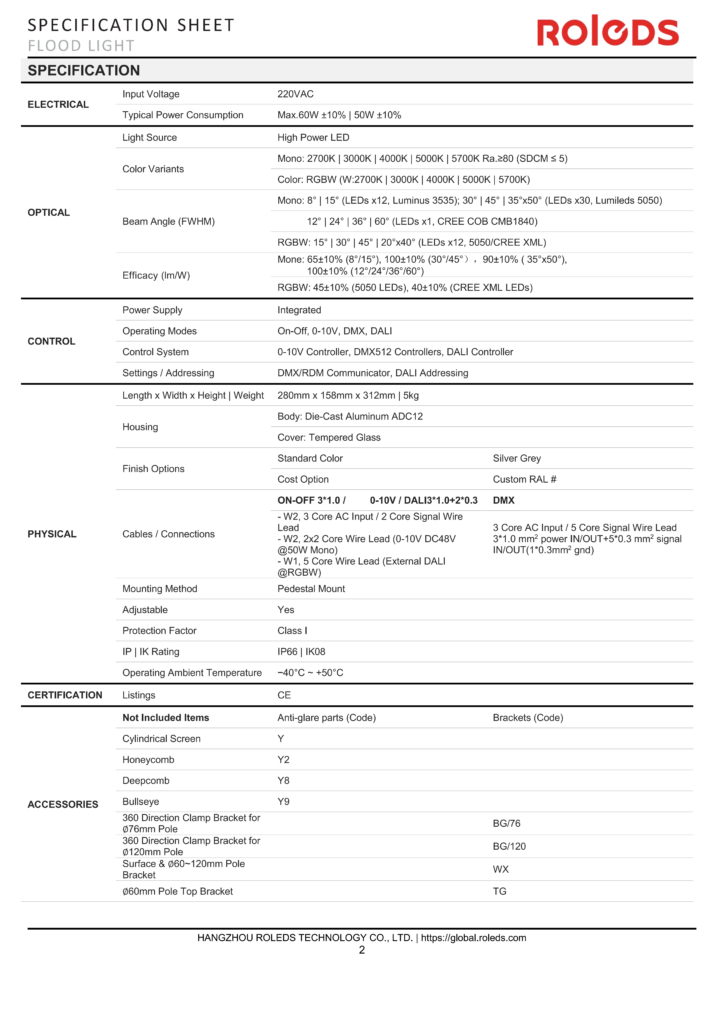

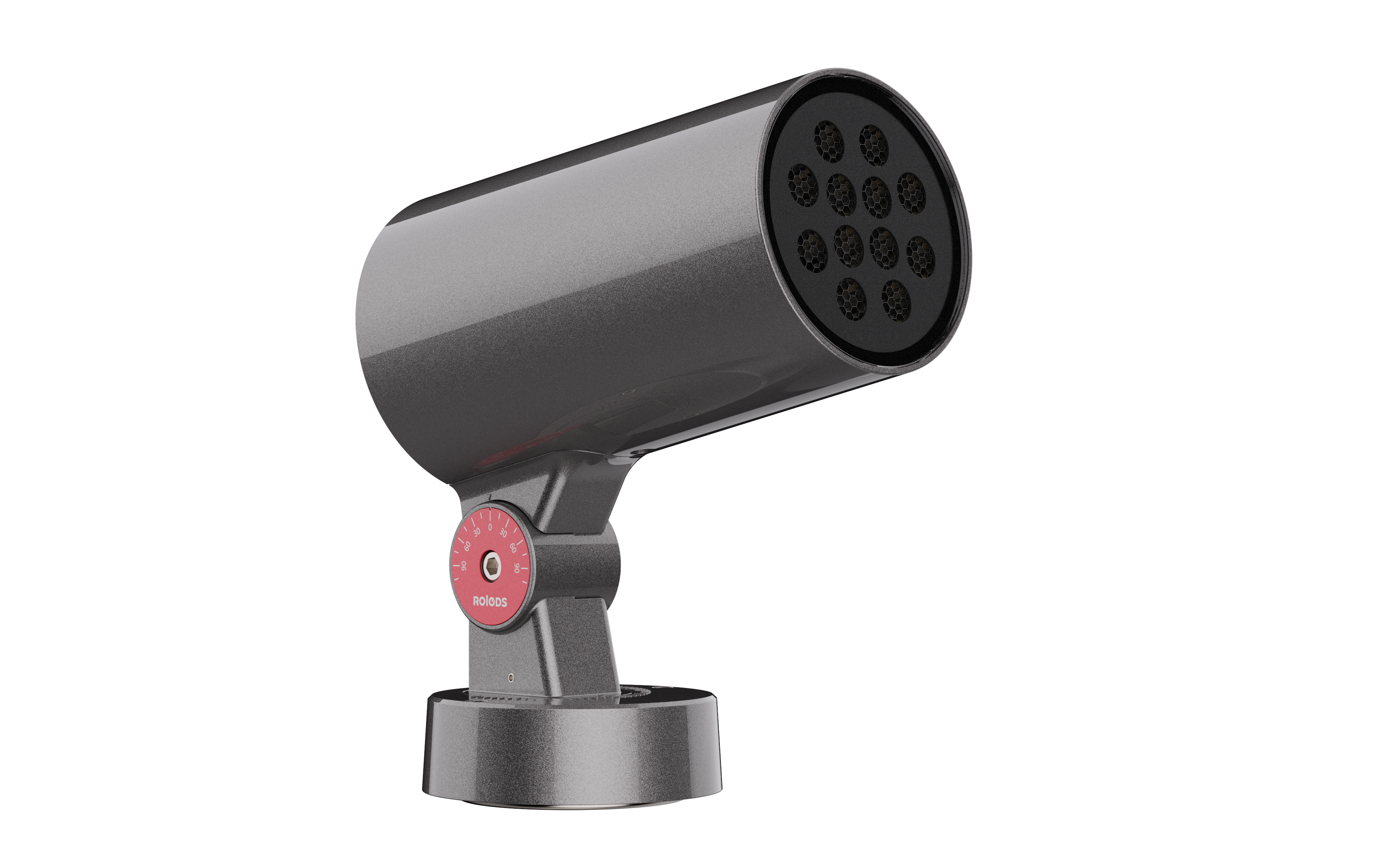

RFL145R
50W,60W
220VAC
8°, 15°, 24°, 30°, 36°, 45°, 60°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI

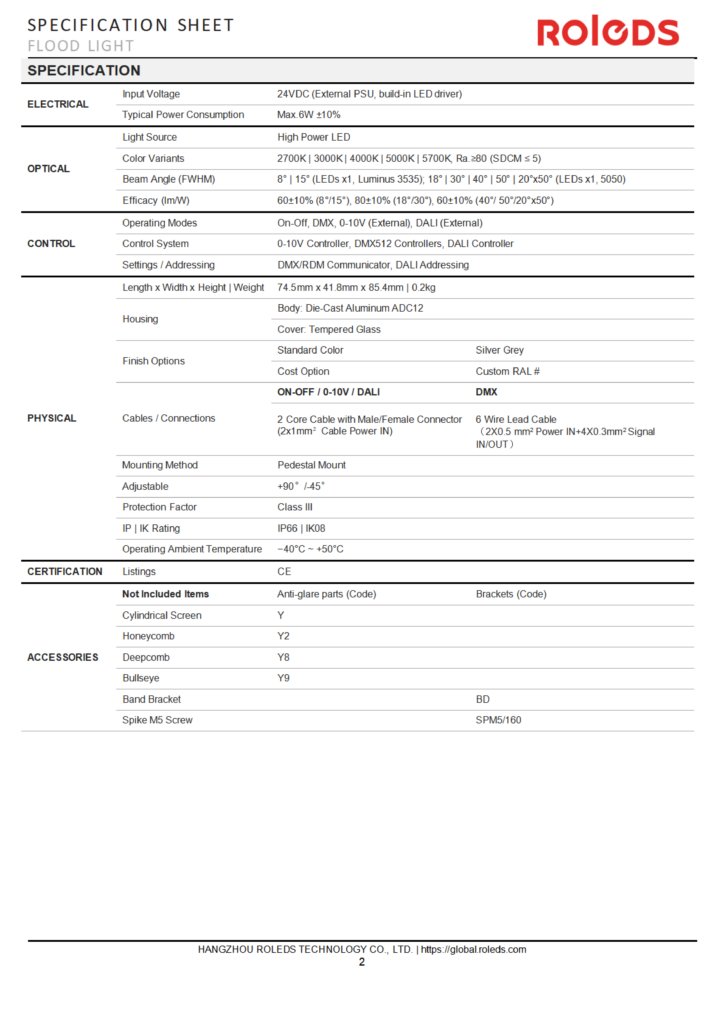

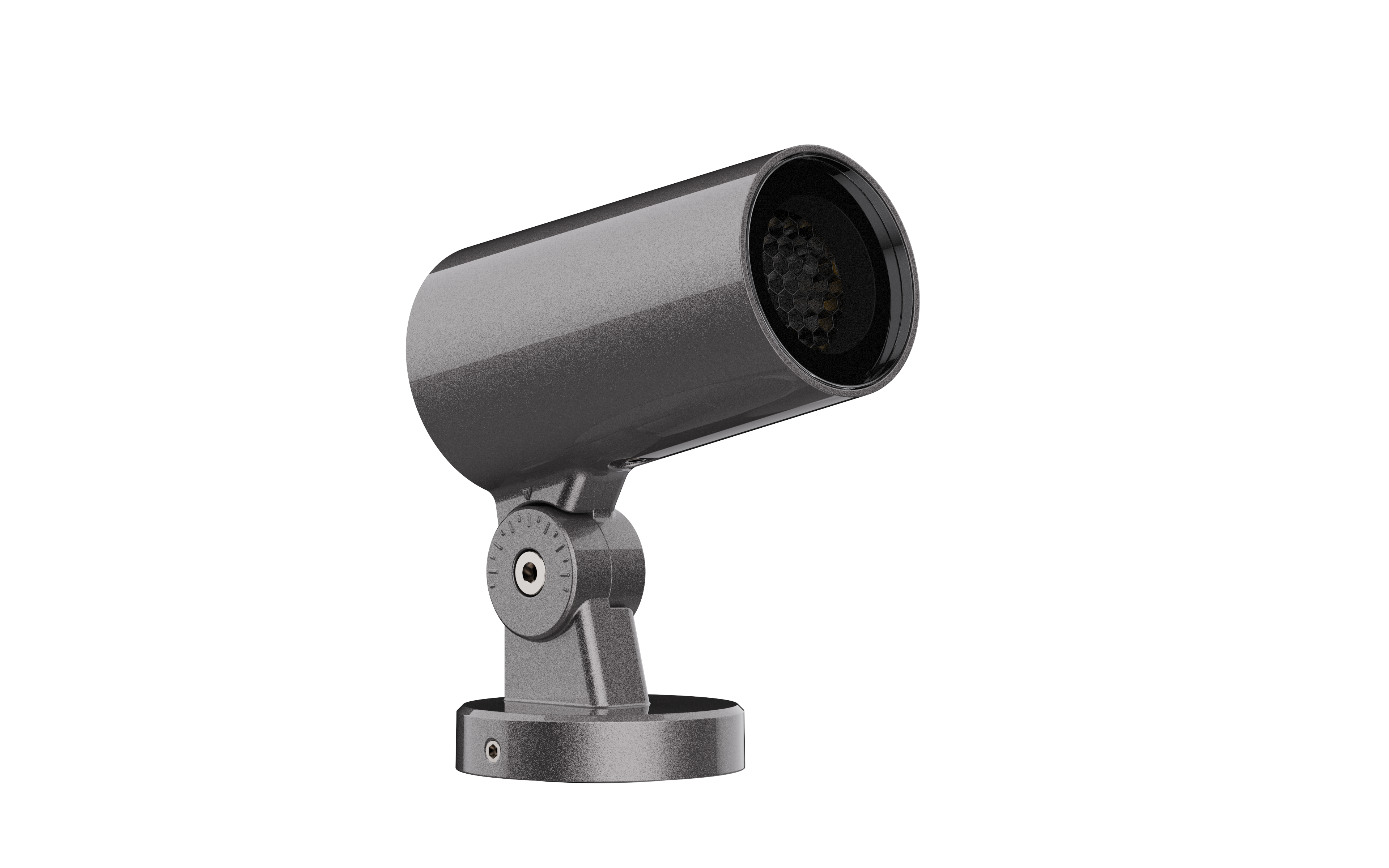

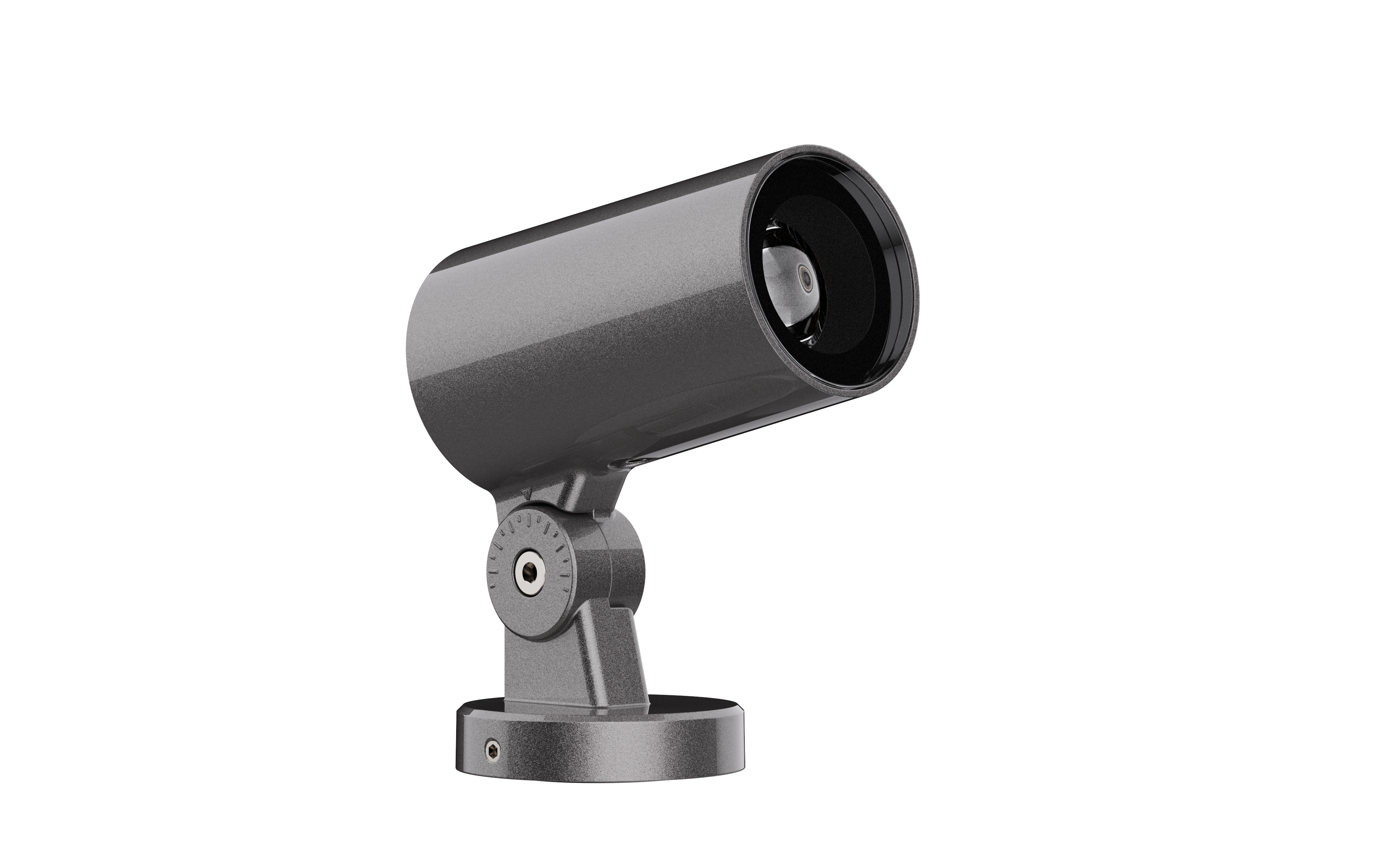

RFL35R
6W
24VDC
8°, 15°, 18°, 30°, 40°, 50°, 20x50°
2700K, 3000K, 4000K, 5000K, 5700K
0-10V, DMX, DALI
RFL50R
10W
24VDC
8°, 15°, 30°, 45°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K
0-10V, DMX, DALI

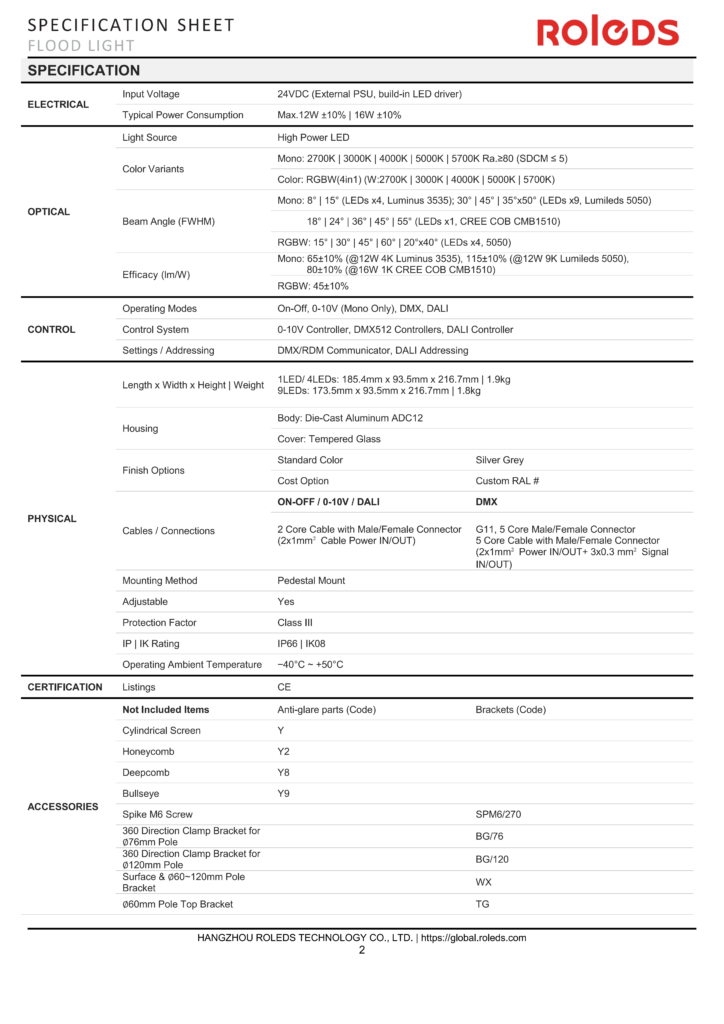

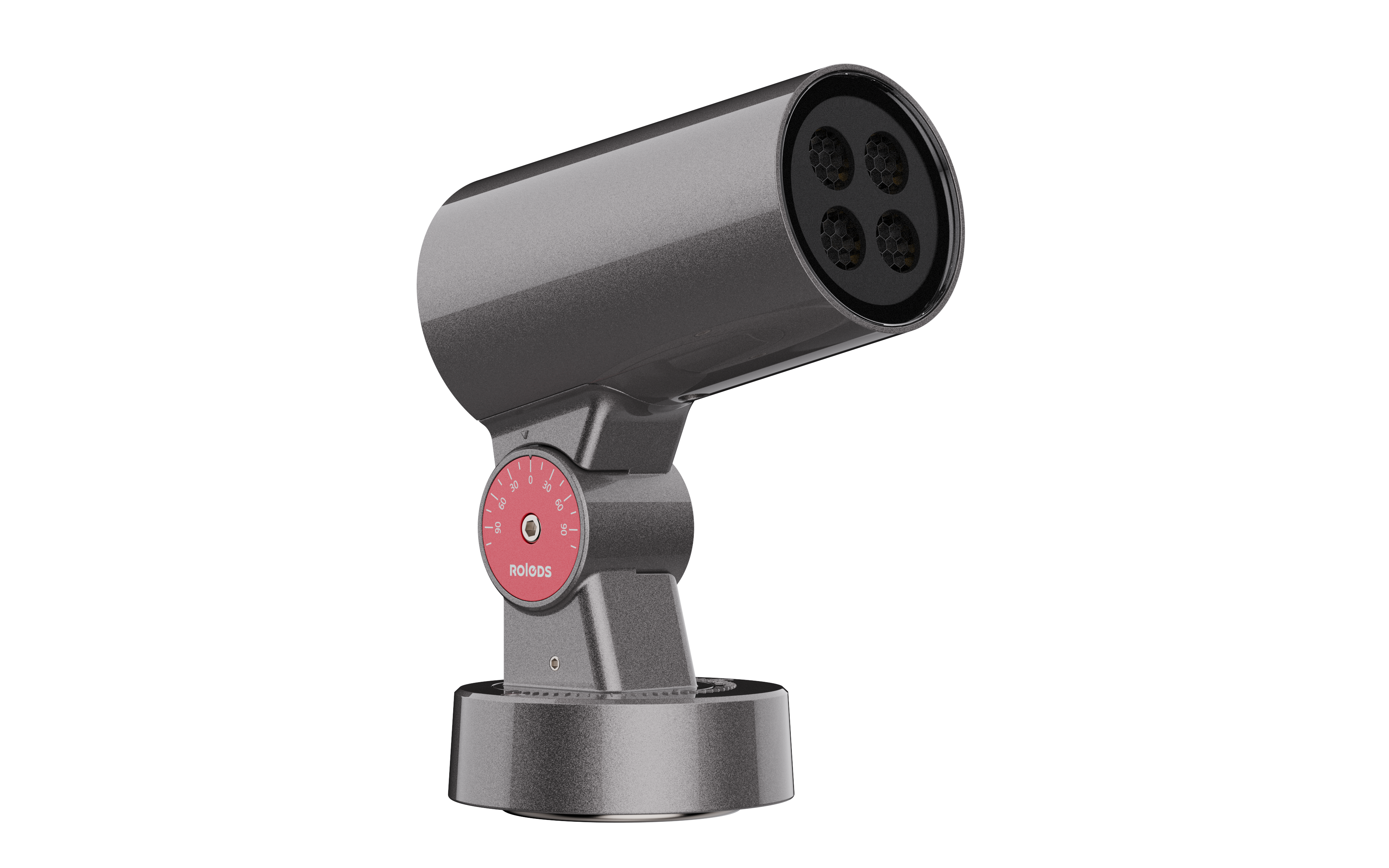

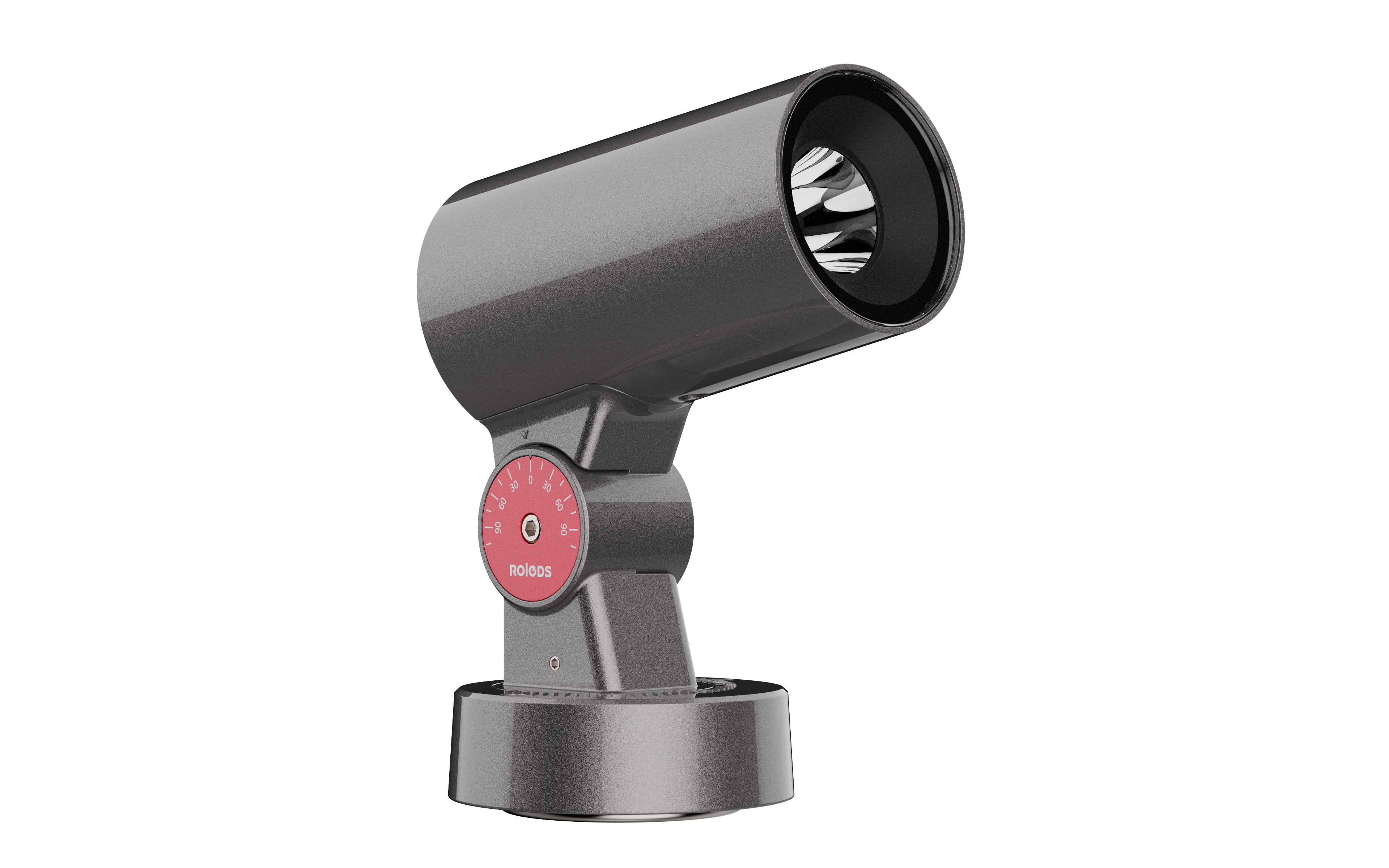

RFL85R
12W,16W
24VDC
8°, 15°, 18°, 24°, 30°, 36°, 45°, 55°, 60°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI
RFL90R
9W,12W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K
DMX
RFL90R COB
10W
48VDC
15°, 22°, 36°
2700K, 3000K, 4000K, 5000K, 5700K
DMX
RFL140R
18W,24W
24VDC
8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGBW ( 4 in 1 )
DMX, DALI
RFL140R COB
20W
48VDC
15°, 22°, 36°
2700K, 3000K, 4000K, 5000K, 5700K
DMX, DALI
RFL190R
24W,36W,48W
220VAC, 24VDC
4°, 8°, 15°, 30°, 45°, 60°, 15x60°, 20x40°
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW, RGBW ( 4 in 1 )
DMX, DALI
