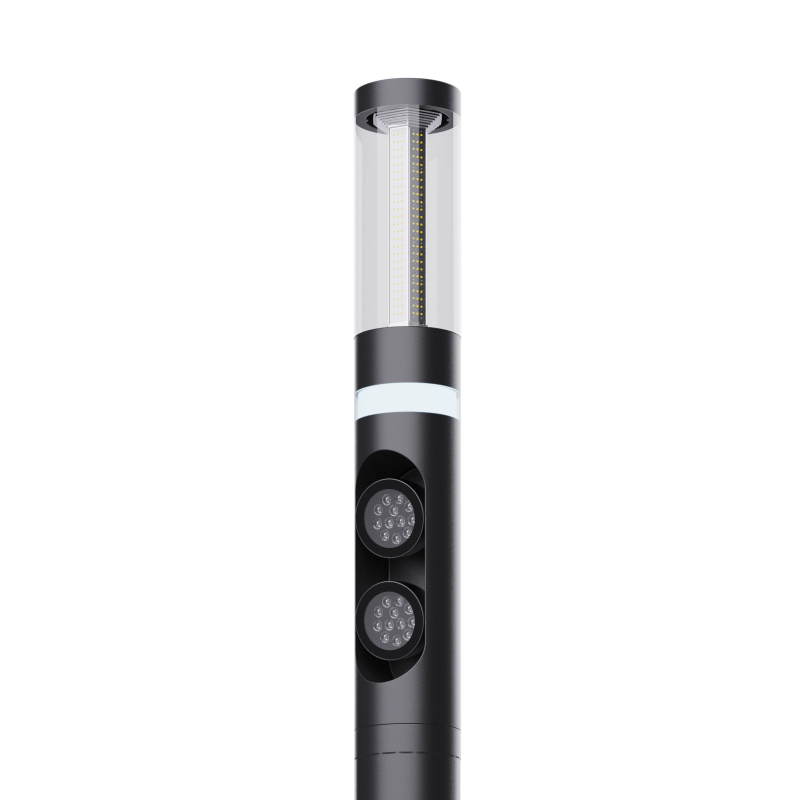

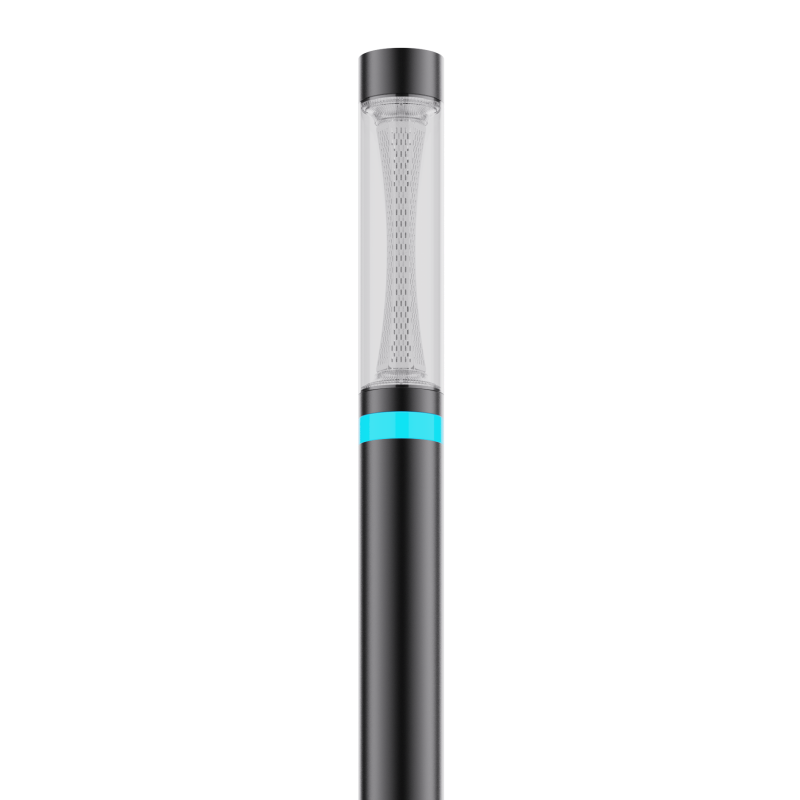

Modular courtyard lights
Roleds modular courtyard lights feature a variety of pole designs, combining simplicity and elegance, ideal for squares, streets, scenic spots, and courtyards.
Product Description
The modular courtyard lights feature aluminum profile poles and a modular design, allowing for easy assembly according to requirements. The pole surfaces are covered with flexible solar panels for energy efficiency and environmental friendliness. With a professional optical design, the lighting is comfortable, soft, and glare-free, offering wide illumination coverage.
Model Selection
Power Consumption
1 — 100
Beam Angle(FWHM)
CCT
Luminous flux
1 — 240
Product Info
Model
Power Consumption(W)
Beam Angle(FWHM)
CCT
Luminous flux(lm)
Luminous efficacy(lm/W)
Controllable
>

RCY101
35
120°
BLUE+4000K
2100
70
RCY101

RCY101
45
120°
BLUE+4000K
2800
70
RCY101

RCY101
55
120°
BLUE+4000K
3500
70
RCY101

RCY102
35
T1
BLUE+4000K
3300
110
RCY102

RCY102
45
T1
BLUE+4000K
4400
110
RCY102

RCY102
55
T1
BLUE+4000K
5500
110
RCY102

RCY103
65
100x360°
BLUE+4000K
2400
80
RCY103

RCY103
85
100x360°
BLUE+4000K
3200
80
RCY103

RCY103
105
100x360°
BLUE+4000K
4000
80
