Floodlights

ROLEDS offers two series of floodlights: the Golf series with round designs and the MatriX series with square designs. Renowned for their superior light quality and robust stability, these solutions effectively meet the diverse requirements of different projects.

Product Description

With innovative module combination design, square floodlights of the MatriX series resemble the versatility of construction toy LEGO, allowing for flexible assembly into various configurations. From single products like 1×1 to larger combinations like 2×2 and 3×3, the series ensures full power coverage customized to your special needs.

It offers uniform light diffusion with multiple beam angle options, ensuring versatility and scalability. Its sleek design allows for easy construction and installation, featuring precision die-cast craftsmanship, efficient heat dissipation through a fin-type design, and a durable glass cover for easy cleaning.

The MatriX series also includes mini-series. It offers accent lighting or highlighting with a minimal presence in the space. Ultra-compact in size, it is lightweight, functional, and easy to conceal. Available in multiple angles, color temperatures, and anti-glare accessories, the series is the top choice for places with stringent requirements for fixture sizes such as resorts, ancient buildings, and temples.

Round Floodlights of the GOLF family draws inspiration from the elegant lines of Chinese Song Dynasty porcelain, seamlessly merging traditional heritage with modern design aesthetics. With a sleek and graceful silhouette, the floodlights offer exceptional light quality and stability, making them a standout choice for any outdoor application.

They feature high-efficiency LEDs paired with ultra-clear glass boasting 94% light transmittance, ensuring precise long-distance projection. Incorporating black light technology, these lights minimize unnecessary light thanks to various anti-glare accessories with dual anti-glare effects. The separate design of the optical and power compartments facilitates effective heat dissipation, thereby extending the product’s lifespan. With a 0-360-degree rotatable capability and finely calibrated adjustment dial, installation is straightforward and convenient.

Model Selection

Power Consumption
Power Consumption - slider
1300
Beam Angle(FWHM)
CCT
Luminous flux
Luminous flux - slider
06000
Product Info
Model
Power Consumption(W)
Input Voltage
Beam Angle(FWHM)
CCT
Controllable

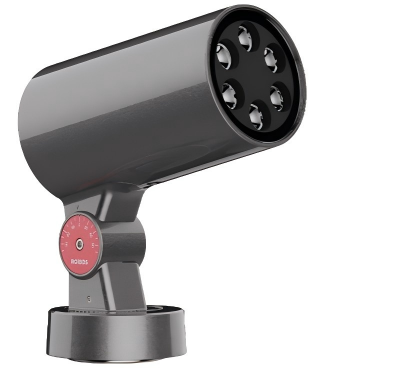

RFL110R

30W,40W
220VAC
8°, 15°, 18°, 24°, 30°, 36°, 45°, 50°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI

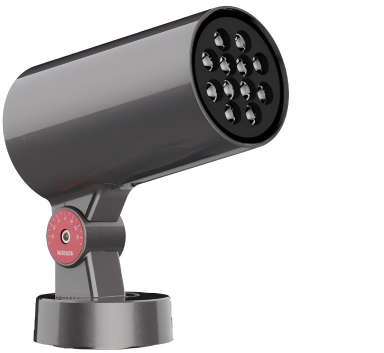

RFL145R

50W,60W
220VAC
8°, 15°, 24°, 30°, 36°, 45°, 60°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI

RFL35R

6W
24VDC
8°, 15°, 18°, 30°, 40°, 50°, 20x50°
2700K, 3000K, 4000K, 5000K, 5700K
0-10V, DMX, DALI

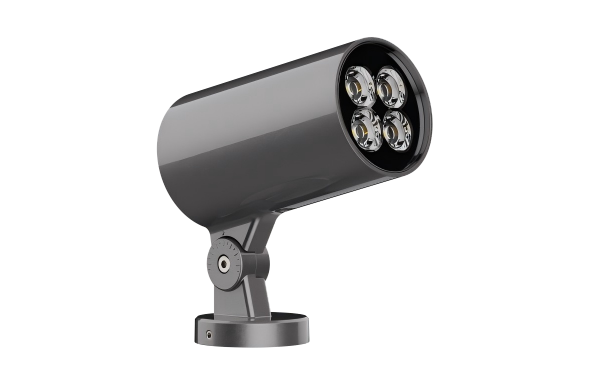

RFL50R

10W
24VDC
8°, 15°, 30°, 45°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K
0-10V, DMX, DALI

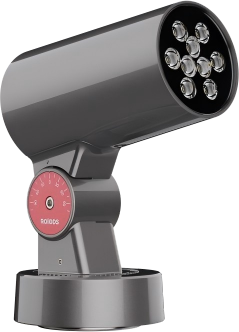

RFL85R

12W,16W
24VDC
8°, 15°, 18°, 24°, 30°, 36°, 45°, 55°, 60°, 20x40°, 35x50°
2700K, 3000K, 4000K, 5000K, 5700K, RGBW ( 4 in 1 )
0-10V, DMX, DALI
